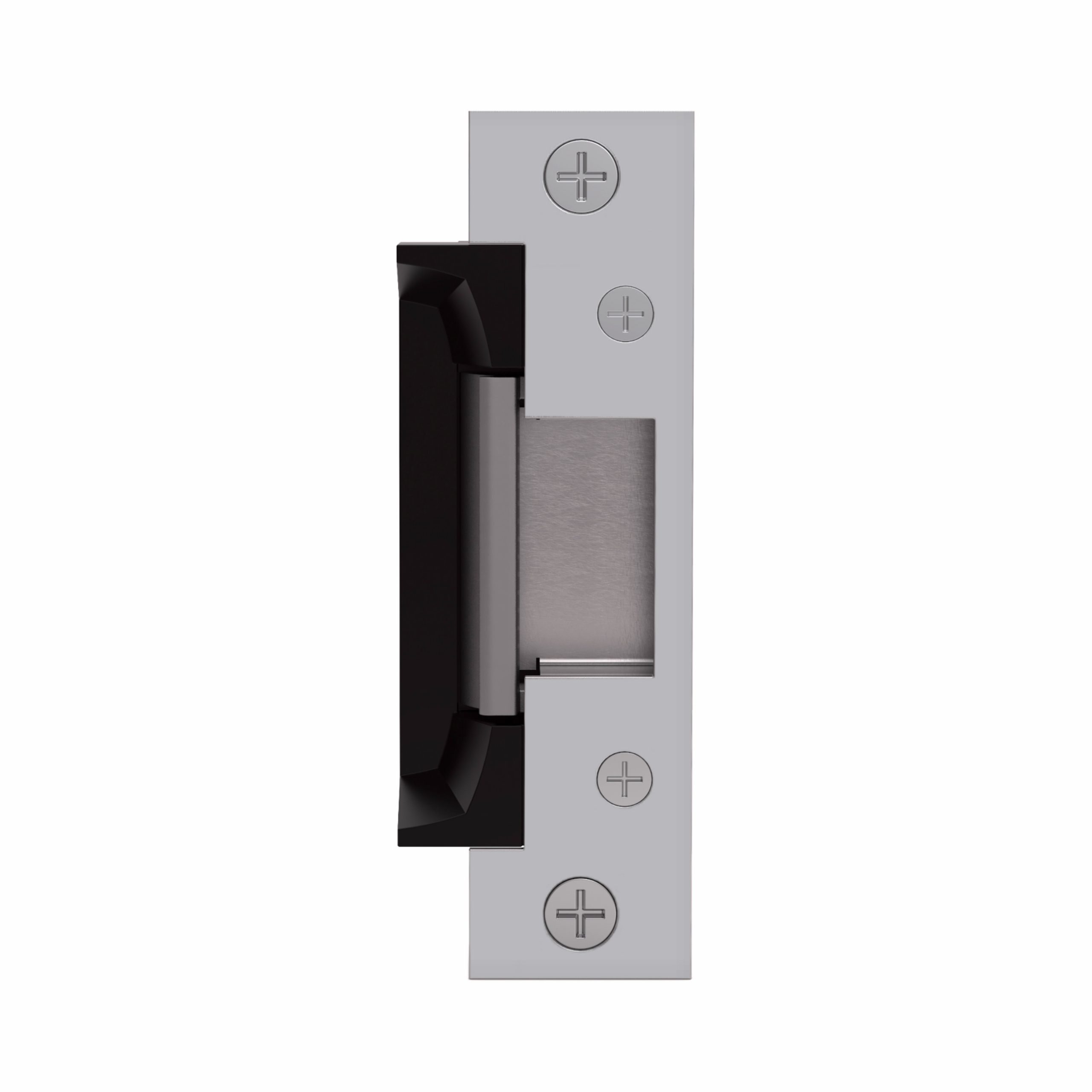

HES 4500C630LBM 12VDC / 24VDC Heavy Duty Electric Strike with Latchbolt Monitor Satin Stainless Steel Finish

HES 4500C630LBM 12VDC / 24VDC Heavy Duty Electric Strike with Latchbolt Monitor Satin Stainless Steel Finish
Assa Abloy Electronic Security Hardware – Hes 4500C630LBM 12VDC / 24VDC Heavy Duty Electric Strike with Latchbolt Monitor Satin Stainless Steel Finish

• Ul 10C Fire-Rated, 3 Hour Single Door (Fail Secure Only)
• 1,000,000 Cycle Endurance
• Non Handed
• ANSI/BHMA A156.31, Grade 1
• Internally Mounted Solenoid

Attributes

Ship via: Can Ship UPS

Access Type: Electric Strike

Adjustability: Horizontal

Alternate Codes: 4500C-630-LBM, 4500C630LBM, 4500C-LBM-630, 4500CLBM630, HES4500C-LBM-630

CAL FIRE, 3776-1654: 0100

Category: Access Control, Electric Strikes

Certified: Yes

Door And Lock Sensor: Latch Monitor

Door Application: Electric Strikes

Dynamic Strength (ft-lbs): 100

Electric Strike Compatibility: 3/4in Latch, Cylindrical Deadlatch, Mortise Deadlatch

Electric Strike Faceplate Size: 1-1/4″ x 4-7/8″

Electric Strike Faceplate Type: Complete One Box Solution, Cylindrical Locks, Mortise Locks With Deadlatch Only

Electric Strike Features: Body Depth 1-3/8″, Horizontal Adjustment, Internally Mounted Solenoid, Low Profile, Tamper Resistant, Trim Enhancer Included

Electric Strike Series: 4500

Endurance (cycles): 1,000,000

Fail Safe | Fail Secure: Field selectable fail safe/fail secure

Finish: 630 Satin stainless steel

Finish Code: US32D

Finish Color: Satin, Satin Stainless Steel

Fire Rated: Yes

Frame Material: Metal|Wood

Function: Fail Safe / Fail Secure

Grade: Grade 1

Handing: Non-handed

Latchbolt Accommodation: Up to 3/4″

Lock Type: Cylindrical Lock|Mortise Lock

Manufacturer: Hanchett Entry Systems HES

Monitoring Installation: Factory Configured

Monitoring Options: Latchbolt Monitoring|Latchbolt Strike Monitor

Series: 4500 Series

Static Strength (lbs): 1500

Strike: 12VDC / 24VDC Heavy Duty Electric Strike with Latchbolt Monitor

Subtype: Electric Strikes

Surface Mounting: Cutting required

Tamper Resistant: Yes

Type: Electronics

Voltage: 12/24

Voltage Type: Field Selectable, VDC – Direct
