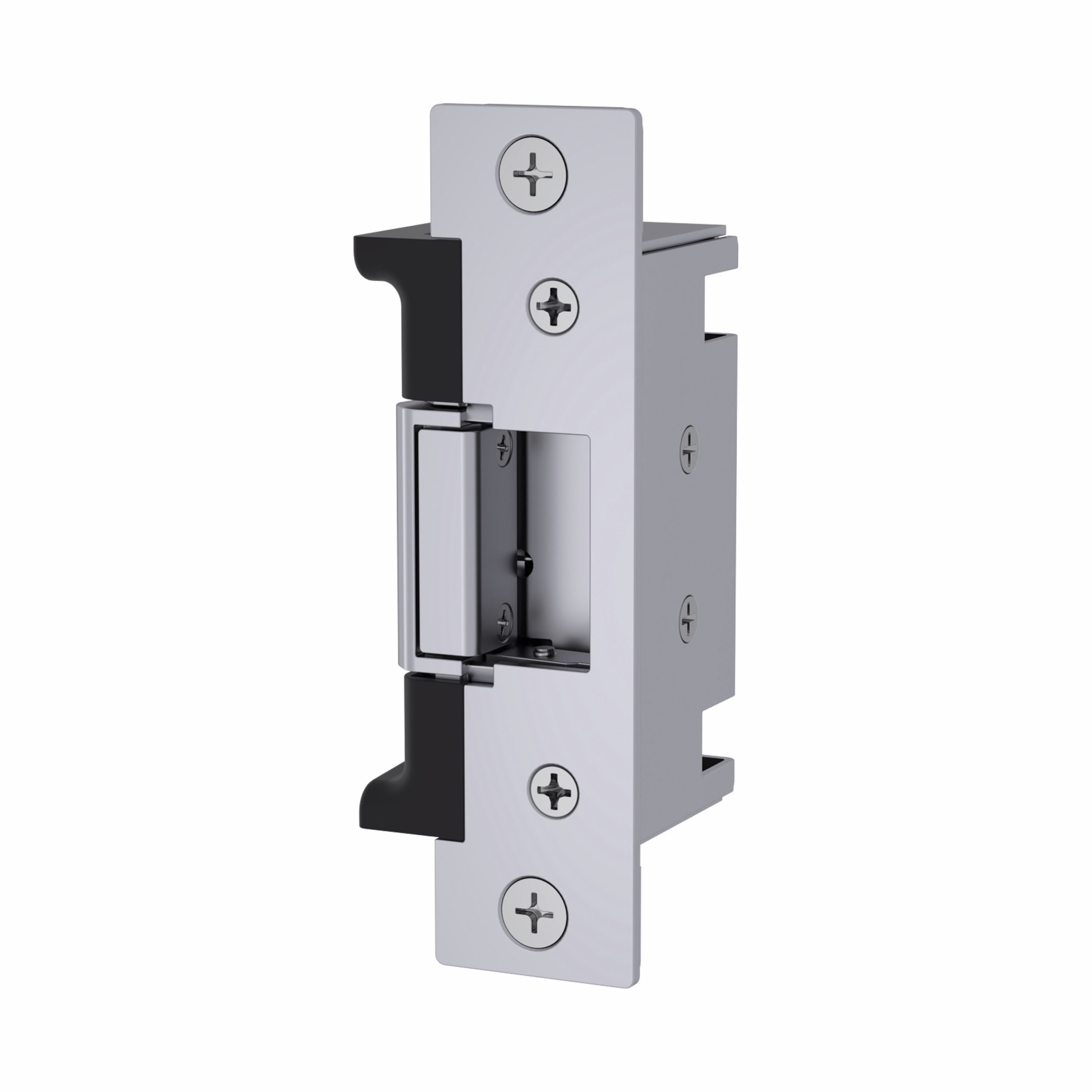

HES 1500629 Electric Strike
Assa Abloy Electronic Security Hardware – Hes 1500629-12/24 Volt DC Electric Strike Body Bright Stainless Steel Finish
Attributes
Ship via: Can Ship UPS
Adjustability: Horizontal
Amp Draw: .24 Amps at 12VDC, .12 Amps at 24VDC
CAL FIRE, 3776-1654: 0500
Complete Pack Options: Strike Body Only
Dynamic Strength (ft-lbs): 70
Endurance (cycles): 1,000,000
Face Shape: Flat Face, Square Corners
Fail Safe | Fail Secure: Field selectable fail safe/fail secure
Finish: 629 Bright stainless steel
Finish Description: Bright Stainless Steel
Fire Rated: Yes
Frame Application: Metal or Wood
Frame Depth: 1-3/8 In.
Frame Material: Metal|Wood
Function: Field Selectable (Safe/Secure)
Grade: Grade 1
Handing: Non-handed
Latchbolt Accommodation: Up to 3/4″
Limited Warranty: 1 Year
Lock Type: Cylindrical Lock|Mortise Lock
Monitoring Installation: Factory Configured|Field Installable
Monitoring Options: Dual Lock Monitors|Lock Monitor
Operating Voltage: 12VDC/24VDC
Series: 1500 Series
Shim Type: Field Adjustable
Static Strength (lbs): 1500
Subtype: Electric Strikes
Surface Mounting: Cutting required
Switch Type: None
Tamper Resistant: Yes
Type: Electronics
Use With: Cylindrical and Mortise Latchbolts
Voltage: 1-2/24
Related products
-
-
HES

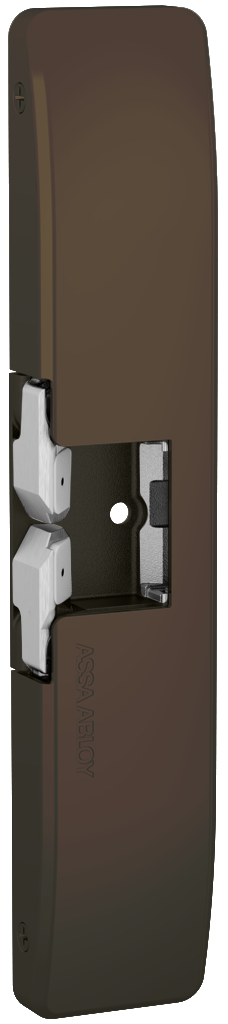

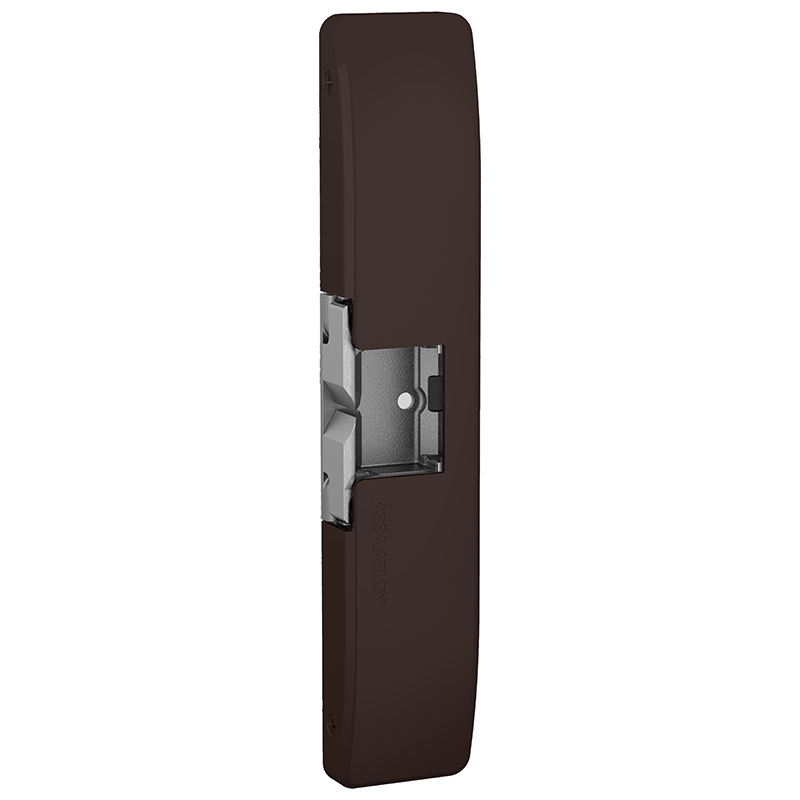

HES 9500613E HES Electric Strike 12/24VDC, Oil Rubbed Bronze Finish
Original price was: $455.13.$91.03Current price is: $91.03. -
HES
HES 5300C-630 Electric Strike, Complete Pack C
Original price was: $304.83.$60.97Current price is: $60.97. -
HES

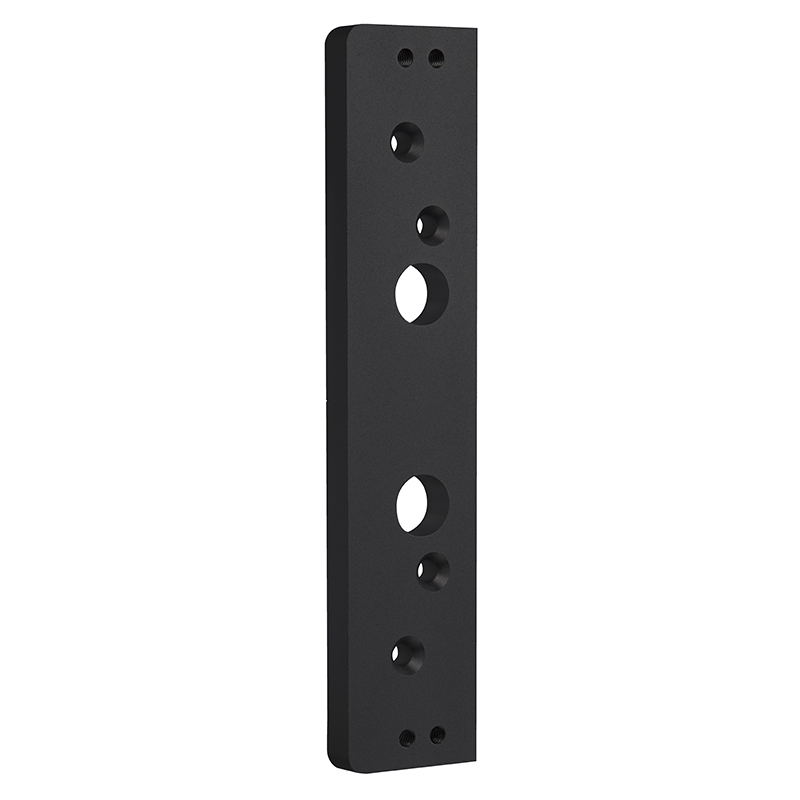

HES 9000-ASB-BSP Electrical Accessories
