CRL BP5S Silver Metallic 5″ Square Base Plate

CRL BP5S Silver Metallic 5″ Square Base Plate

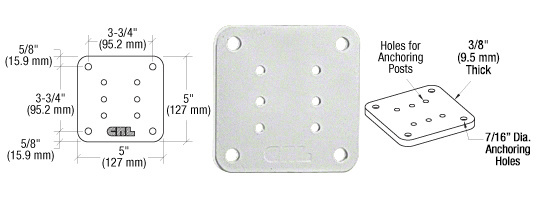

C.R. Laurence BP5S Silver Metallic 5″ x 5″ Square Base Plate offers a robust solution for securing railings with style and durability. Designed for use with 2-3/8″ (60 mm) square aluminum posts, this base plate is perfect for various standard railings. The silver metallic finish not only enhances aesthetic appeal but also ensures longevity, making it suitable for both indoor and outdoor applications. The BP5S is crafted from high-quality aluminum and measures 5 inches by 5 inches with a thickness of 3/8 inch, providing a solid foundation for your installations. Its unique offset design allows vertical posts to be attached to one side of the base plate, optimizing space and functionality. Installation is straightforward, as the base plate screws into vertical post raceways and can be easily anchored to the substrate using concrete anchors or lag bolts. Each unit comes with a moisture barrier gasket (Cat. No. BPG1BL), ensuring enhanced protection against the elements. Additionally, users can achieve a polished look by pairing the base plate with stainless steel washers (WSHR1) and color match bolt cover buttons (BTN1). With seven standard colors available, the BP5S is versatile enough to complement any design scheme.

Silver Metallic 5″ x 5″ Square Base Plate

• Seven Standard Colors, Plus Unfinished Chromate Available for Standard and 45 Degree Post
• For Use with All Standard Railings
• For 2-3/8″ (60 mm) Square Aluminum Posts

CRL Standard Square Base Plates screw into Vertical Post raceways. They are countersunk to accept four Cat. No. BPS112 Base Plate Screws, then attached to the substrate with our Concrete Anchors or Lag Bolts. Use Stainless Steel Washers (WSHR1) and Color Match Bolt Cover Buttons (BTN1) to add a finished look. The BP05 Offset Base Plate design allows vertical posts to attach to one side of the Base Plate. One each Moisture Barrier Gasket Cat. No. BPG1BL is included with each Base Plate.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Base Plate Length: 5 in. (127 mm)

Base Plate Thickness: 3/8 in. (10 mm)

Base Plate Width: 5 in. (127 mm)

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Silver Metallic

Material: Aluminum

Shipping Limitations: None
