CRL BP05BRZ Bronze 5″ x 5″ Offset Base Plate

CRL BP05BRZ Bronze 5″ x 5″ Offset Base Plate

C.R. Laurence BP05BRZ Bronze 5″ x 5″ Offset Base Plate is designed for versatility and durability in architectural applications. Available in several attractive colors, this base plate accommodates both standard and 45-degree posts, making it an ideal choice for a variety of railing systems. It is specifically engineered for use with 2-3/8″ (60 mm) square aluminum posts, ensuring a secure and reliable connection. The BP05 features a unique offset design, allowing vertical posts to attach seamlessly to one side of the base plate. Installation is straightforward, as it screws into vertical post raceways and is countersunk to accept four Cat. No. BPS112 Base Plate Screws. For enhanced stability, attach to the substrate using concrete anchors or lag bolts. To complete the look, consider using stainless steel washers (WSHR1) and color match bolt cover buttons (BTN1).Each base plate comes with a moisture barrier gasket (Cat. No. BPG1BL), providing additional protection against environmental elements. Please note that all ARS/AWS products are painted to order and are non-refundable or returnable. The BP05BRZ is crafted from durable aluminum and features a matte bronze finish, making it both functional and aesthetically pleasing for any project.

Bronze 5″ x 5″ Offset Base Plate

• Available in Several Attractive Colors
• Available for Standard and 45 Degree Post
• For Use with All Standard Railings
• For 2-3/8″ (60 mm) Square Aluminum Posts

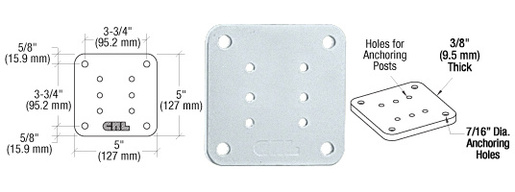

CRL Standard Square Base Plates screw into Vertical Post raceways. They are countersunk to accept four Cat. No. BPS112 Base Plate Screws, then attached to the substrate with our Concrete Anchors or Lag Bolts. Use Stainless Steel Washers (WSHR1) and Color Match Bolt Cover Buttons (BTN1) to add a finished look. The BP05 Offset Base Plate design allows vertical posts to attach to one side of the Base Plate. One each Moisture Barrier Gasket Cat. No. BPG1BL is included with each Base Plate.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Matte Bronze

Material: Aluminum

Shipping Limitations: None
