CRL BP5CA Clear Anodized 5″ Square Base Plate

CRL BP5CA Clear Anodized 5″ Square Base Plate

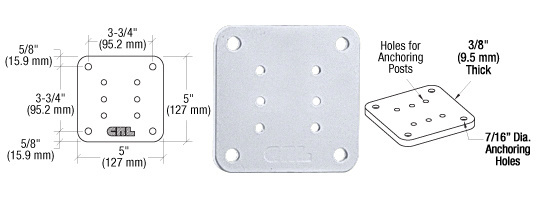

C.R. Laurence BP5CA Clear Anodized 5″ x 5″ Square Base Plate offers a robust foundation for your railing systems, designed specifically for 2-3/8″ (60 mm) square aluminum posts. This base plate is available in seven standard colors, plus an unfinished chromate option, allowing for a customized aesthetic tailored to your project needs.Engineered for versatility, the BP5CA is compatible with all standard railings, ensuring seamless integration into your existing framework. The unique offset design allows vertical posts to attach conveniently to one side of the base plate, enhancing structural stability. Each plate is countersunk to accommodate four Cat. No. BPS112 Base Plate Screws, which securely anchor it to the substrate using concrete anchors or lag bolts. For added protection against moisture, a Moisture Barrier Gasket (Cat. No. BPG1BL) is included with each base plate. To achieve a polished finish, consider using stainless steel washers (WSHR1) and color match bolt cover buttons (BTN1). With a thickness of 3/8 in. (10 mm) and a clear anodized aluminum finish, this base plate not only meets functional requirements but also elevates the overall look of your installation.

Clear Anodized 5″ x 5″ Square Base Plate

• Seven Standard Colors, Plus Unfinished Chromate Available for Standard and 45 Degree Post
• For Use with All Standard Railings
• For 2-3/8″ (60 mm) Square Aluminum Posts

CRL Standard Square Base Plates screw into Vertical Post raceways. They are countersunk to accept four Cat. No. BPS112 Base Plate Screws, then attached to the substrate with our Concrete Anchors or Lag Bolts. Use Stainless Steel Washers (WSHR1) and Color Match Bolt Cover Buttons (BTN1) to add a finished look. The BP05 Offset Base Plate design allows vertical posts to attach to one side of the Base Plate. One each Moisture Barrier Gasket Cat. No. BPG1BL is included with each Base Plate.
All ARS/AWS products are painted to order and are non-refundable or returnable.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Base Plate Length: 5 in. (127 mm)

Base Plate Thickness: 3/8 in. (10 mm)

Base Plate Width: 5 in. (127 mm)

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Clear Anodized

Material: Aluminum

Shipping Limitations: None
