CLIP top 110° +45 Angled Hinge Soft-Close Inserta Blum 79B3598-ONYX

Original price was: $7.34.Current price is: $2.94.

Add to Wishlist
Compare
79B3598-ONYX_A

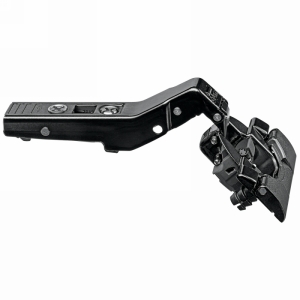

CLIP top BLUMOTION angled hinge 79B3598

  • opening angle: 110°
  • cabinet angle: 45°
  • cranking: overlay
  • BLUMOTION
  • hinge cup assembly: INSERTA
  • hinge cup material: Steel hinge cup
  • closing mechanism: with spring
  • Side Adjustment: +/- 1.8 mm
  • Depth adjustment: +/- 2 mm, convenient with spiral screw

Product details

Manufacturer : BLUM INC
SKU : 11410447
Manufacturer’s Part : 79B3598-ONYX
Weight : 1.116 lbs
Sold in Multiples of : 1
Priced By : Each
Cabinet Type : Frameless
Face Frame
Degree of Opening : 95
Overlay : Overlay
Closing Type : Soft-Closing
Hinge Cup MountingHow the cup is attached to the cabinet : Tool-Free
Boring Pattern SpreadHow far apart the mounting holes in the cup are spaced : 45mm
Application : Angled
Configuration : Hinge and Plate sold separately
Arm Style : Straight
Cup Diameter : 35mm
Cup Depth : 13mm
Product Type : Angled Hinge
Product Finish : Onyx
Includes : (1) Hinge
Cabinet Angle : 45°
Side Adjustment : +/- 1.8 mm with Screw
Depth Adjustment : +/- 2 mm with Spiral Screw
