95° Intermat W90 Angle Hinge Inset Expanding Socket Hettich 9043682

Original price was: $4.19.Current price is: $1.68.

Add to Wishlist
Compare
9043682_A
  • Intermat angle hinge W90
  • With self closing feature (Intermat 9936 W90)
  • Quality classification under EN 15570, Level 2
  • Opening angle 95°
  • For door thickness 14 – 28 mm
  • Door mounting option inset

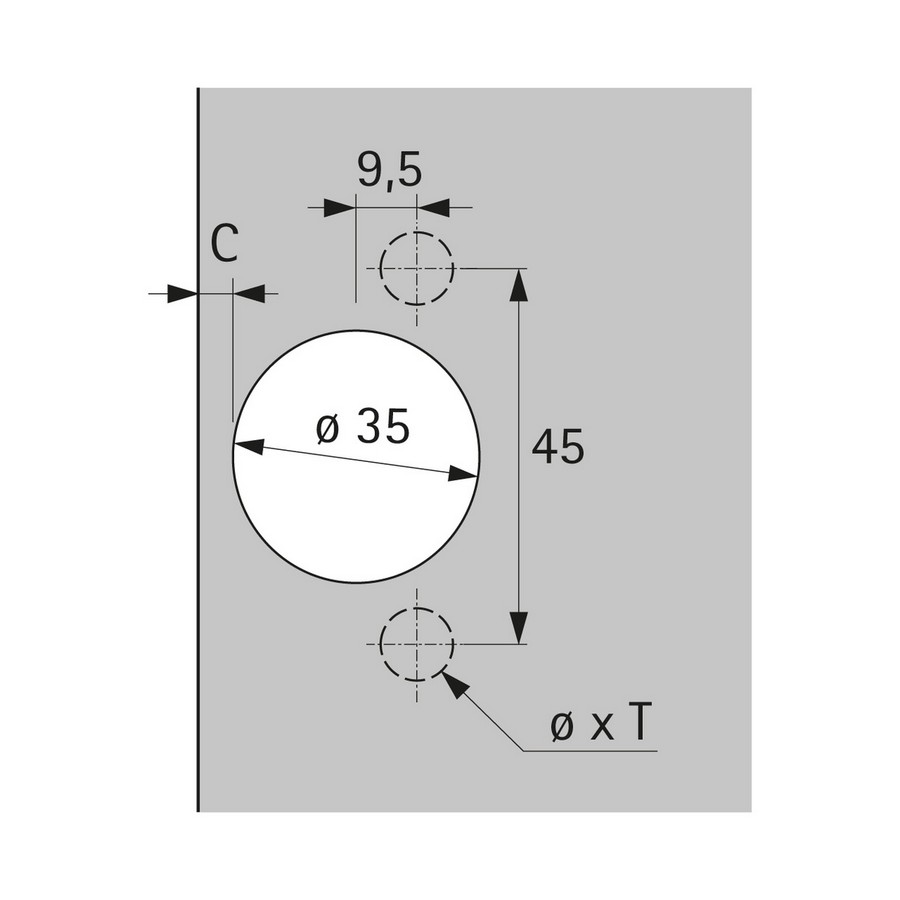

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 10.5 mm
  • Installation With expanding sockets
  • Integrated adjustment of door offset +2 mm / -2 mm
  • Integrated reveal adjustment +2 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel / die-cast zinc nickel plated

Product details

Manufacturer : HETTICH AMERICA LP
SKU : 11675217
Manufacturer’s Part : 9043682
Weight : 0.171 lbs
Sold in Multiples of : 1
Priced By : Each
UPC/EAN Code : 4063674136969
Preorder : N
Degree of Opening : 95
Cabinet Type : Face Frame
Frameless
Specialty Application : Corner
OverlayOverlay is the distance that your cabinet door extends past the actual cabinet opening on the hinge side. : Inset
Closing Type : Self-Closing
Hinge Cup MountingHow the cup is attached to the cabinet : Expanding Dowels
Boring PatternHow far apart the mounting holes in the cup are placed : 45mm
Cabinet Angle : 90
Mfg Model : Intermat W90
Application : Corner
Configuration : Hinge and mounting plate sold separately
Cup Diameter : 35mm
Cup Depth : 10.5mm
Max Door Thickness : 14-28mm
