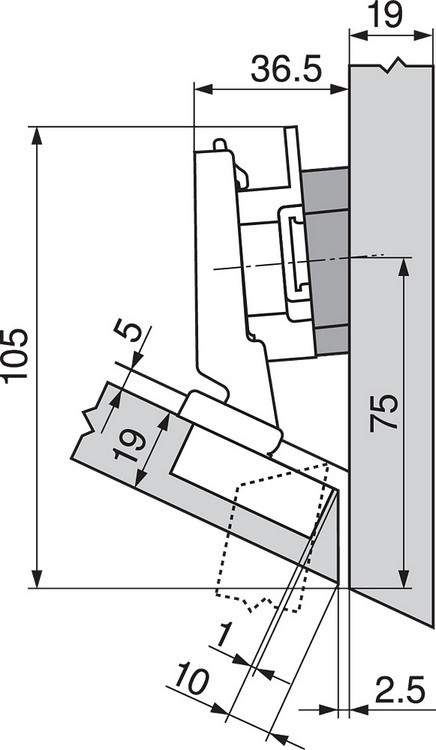

- Opening angle: 110°
- Cabinet angle: -30°
- Cranking: max. overlay
- Hinge cup assembly: INSERTA
- Hinge cup material: Steel hinge cup
- Closing mechanism: with spring
- Side adjustment: +/- 2 mm
- Depth adjustment: +/- 2 mm, convenient with spiral screw
A single Specialty Angled Hinge may be used in multiple door applications and can be easily adjusted for variable degrees by combining the hinge with an appropriate baseplate and wedge/angled spacer. Each combination of hinge, baseplate, and spacer allows up to 5° variability.
To minimize the guesswork for you, we linked the required baseplate and wedge/spacer combinations for different applications below.

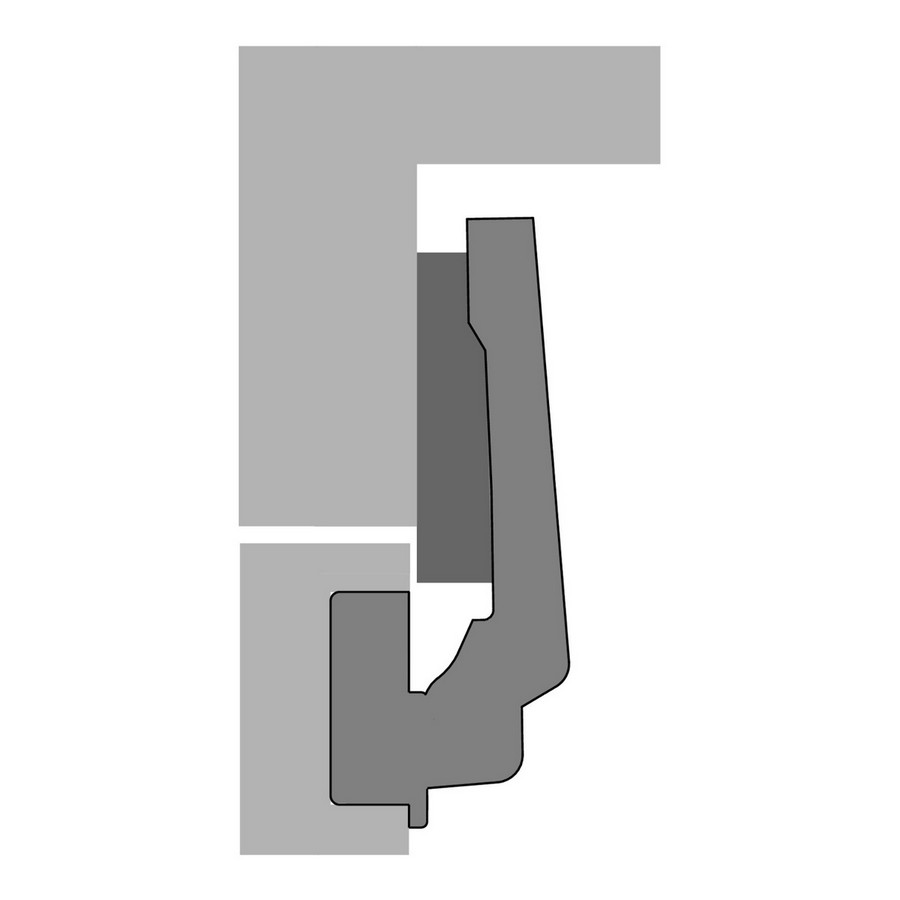

These images provide an example of different Positive and Negative angled door applications of the following types: Maximum Overlay, Partial Overlay, Corner Merge, Inset Door and Mitered Corner.
Scroll down to see the possible Related Product combinations and applications for the selected Specialty Angled hinge (above) and the desired cabinet angle for your needs.
Product details
| Manufacturer’s Part |
: 79A5491BT |
| UPC/EAN Code |
: 9002617645590 |
| Cabinet Type |
: Frameless
Face Frame |
| Closing Type |
: Self-Closing |
| Hinge Cup MountingHow the cup is attached to the cabinet |
: Tool-Free |
| Boring Pattern SpreadHow far apart the mounting holes in the cup are spaced |
: 45mm |
| Configuration |
: Hinge and Plate sold separately |
| Product Type |
: Angled Hinge |
| Product Finish |
: Nickel Plated |
| Side Adjustment |
: +/- 2 mm with screw |
| Depth Adjustment |
: +/- 2 mm with Spiral Screw |
