110° Inset CLIP Top Hinge Self-Close Inserta Blum 71T3790

Original price was: $3.04.Current price is: $1.22.

Add to Wishlist
Compare
71T3790_A
  • Opening angle: 110°
  • Cranking: Inset door application
  • Hinge cup assembly: INSERTA
  • Hinge cup material: Steel hinge cup
  • Closing mechanism: with spring
  • Side adjustment: +/- 2 mm
  • Depth adjustment: plus 3/minus 2 mm, convenient with spiral screw



How to Choose A Blum Hinge Mounting Plate

Choosing a mounting plate can be challenging even for an experienced cabinet maker! To make the right choice, you need to complete a few steps:

  • Make sure you note the manufacturer for your hinge and search for a plate from the same manufacturer.
  • Measure your cabinet overlay in millimeters. For assistance, please read our handy article, How to Measure Cabinet Door Overlay.

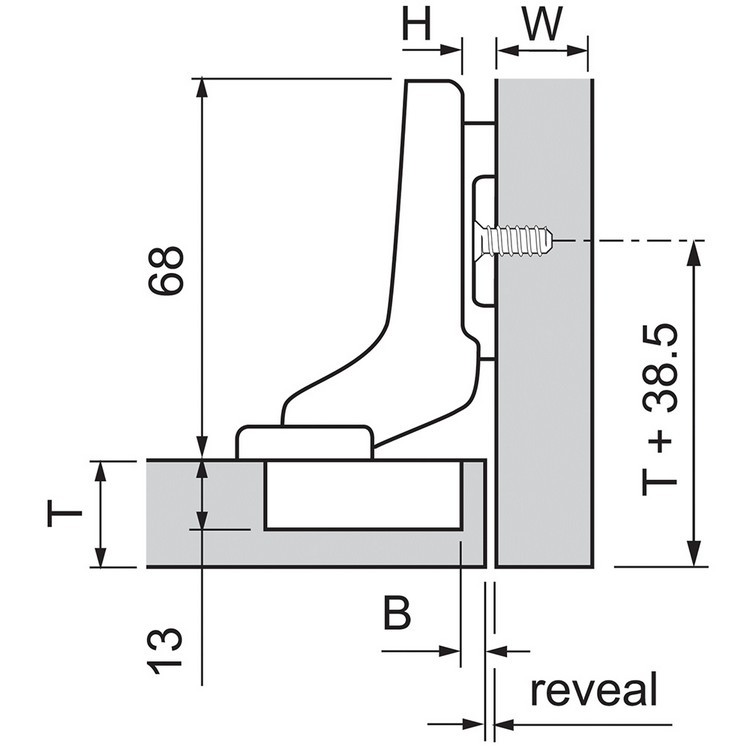

  • Once you determine your overlay, using the metric measurement, check the table below to find the plate height. The H – column is the Plate height to use for your application. The B (blue row below the table) section gives you the Boring Distance (drilling distance from the edge of the door).

    Example:  If your overlay is 16 mm, you need a 0mm Plate Height and a Boring Distance of 5mm.



  • Go to the Cabinet Hinges/Hinge Mounting Plates category.
  • Using the filter on the left side of the page, make the following choices and then click Show:
  • Select the hinge manufacturer
  • Select the type of Cabinet: Frameless (sometimes called panel) or Face Frame
  • Select the Plate Height from the Overlay table attached in the additional images.
    • Note: there can be multiple solutions for the mounting plate height and boring distance combinations.  Your choice may be influenced by the reveal between doors on your application. See the corresponding minimum reveal table for the hinge model. The minimum reveal table is also shown in the additional images section above.
  • Select the Plate Type: Wing 1-piece, Wing 2-piece or In-line (Straight)
  • Choose the correct Fixing Type for your needs: Screw-on or Wood screws, System (Euro) screws, Press-in Dowels, Expanding Dowels or Tool-Free.
    Click here for more information about Hinge Fixing Types (opens in a new tab).

    • Product details

    Manufacturer : BLUM INC
    SKU : 11183380
    Manufacturer’s Part : 71T3790
    Weight : 0.200 lbs
    Sold in Multiples of : 1
    Priced By : Each
    UPC/EAN Code : 9002617778502
    Preorder : N
    Cabinet Type : Frameless
    Face Frame
    Degree of Opening : 110
    Overlay : Inset
    Closing Type : Self-Closing
    Hinge Cup MountingHow the cup is attached to the cabinet : Tool-Free
    Boring Pattern SpreadHow far apart the mounting holes in the cup are spaced : 45mm
    Application : Standard
    Configuration : Hinge and Plate sold separately
    Arm Style : Full-Crank
    Cup Diameter : 35mm
    Cup Depth : 13mm
    Max Overlay : 4.5mm(Reveal)
    Max Door Thickness : 26mm
    Overlay Mfg Definition : Inset
    Product Type : Standard European Hinge
    Product Finish : Nickel
    Includes : (1) Hinge
