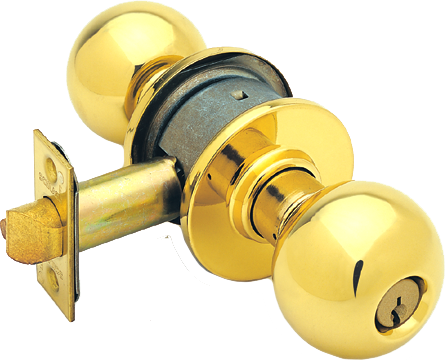

Schlage A53-PD-ORB-605 2-3/8 BS T-STRIKE Grade 2 Entry Orbit Knob, 6-Pin C Keyway, 2-3/8 Backset, Bright Brass

Schlage A53-PD-ORB-605 2-3/8 BS T-STRIKE Grade 2 Entry Orbit Knob, 6-Pin C Keyway, 2-3/8 Backset, Bright Brass

Schlage Lock Company A53-PD-ORB-605 2-3/8 BS T-STRIKE Grade 2 Entry Orbit Knob combines classic design with modern security features. This cylindrical lock is a testament to Schlage’s legacy of quality, exceeding ANSI/BHMA Grade 2 standards for operational and security performance. Ideal for both commercial and residential applications, it is UL listed for a 3-hour fire door, ensuring safety while maintaining aesthetic appeal with its polished brass finish. The A53 model features a 6-pin conventional cylinder with a patented Everest 29 S123 keyway, significantly enhancing security by preventing unauthorized key duplication. The key-removable knob simplifies rekeying or cylinder replacement, providing flexibility for users. With a standard backset of 2-3/8 inches and a T-strike, this lock fits a variety of door thicknesses from 1-3/8 inches to 2-3/4 inches. Durability is guaranteed through intensive testing, including cycle and door impact tests. The snap-on rose design eliminates exposed screws, ensuring a clean look. With multiple finishes and an array of functions available, the Schlage A53-PD-ORB-605 is a versatile choice for anyone seeking reliable security without compromising style.

Grade 2 Entry Orbit Knob, 6-Pin C Keyway KD, 2-3/8 Backset (11-085), T-Strike (10-001), 605/US3 Bright Brass

Notice: The info below is not item specific.

The A series cylindrical lock is based on Schlage’s earliest designs. It is a tribute to enduring quality that these locks remain in demand today. As a grade 2 commercial lock it exceeds ANSI/BHMA standards, allowing it to be used in a wide range of commercial and residential applications.

Features:

• Exceeds ANSI/BHMA grade 2 operational and security standards
• UL listed for 3-hour fire door
• Key removable knob for quick rekeying or cylinder replacement
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Available in three knob and one lever style
• Snap on rose eliminates exposed screws on inside levers
• Seven available finishes
• Ten keyed and non-keyed functions
• Numerous latch and strike options to accommodate any opening
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Specifications:

• Material: Steel, zinc dichromate plated for corrosion resistance
• Handing: Keyed functions are reversible. Non-keyed functions are not handed.
• Door Thickness:
• Standard: 1 3⁄8″ to 1 7⁄8″ (35 mm to 48 mm)
• Optional: 2″ (51 mm) to 2 1⁄2″ (64 mm), extended inside
• Trim:
• Lever: Pressure cast zinc, plated to match finish symbols
• Rose: Wrought brass, bronze or stainless steel
• Latch: Backset: Standard: 2 3⁄8″ (60 mm). Optional: 2 3⁄4″ (70 mm), 3 3⁄4″ (95 mm) and 5″ (127 mm)
• Faceplate: Standard: 1 1⁄8″ x 2 1⁄4″ square corner, beveled. Optional: 1″ square corner, 1″ radius corner, and non-UL drive-in/round face

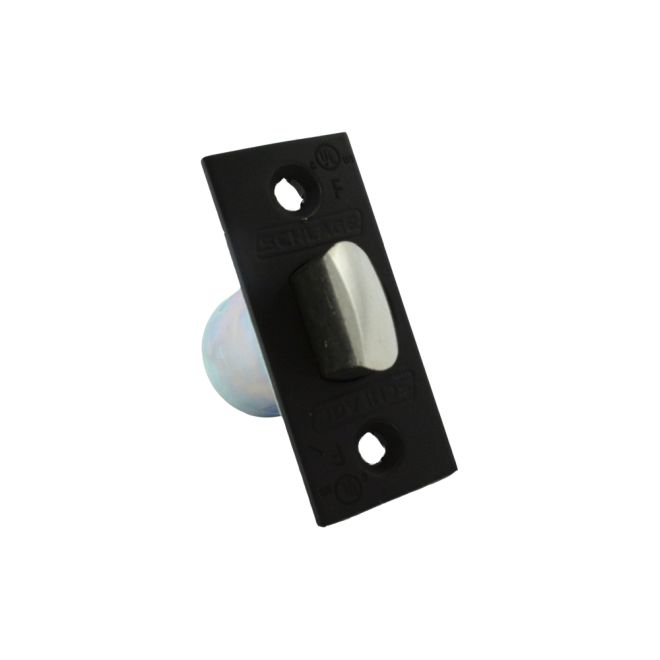

• Latch: Brass, chrome plated, 1⁄2″ throw, deadlocking on keyed and exterior functions.
• Strike: T-strike 1 1⁄8″ x 2 3⁄4″ (29 mm x 70 mm) x 1 1⁄8″ (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
• Cylinder format: 6-pin Conventional (standard); also available in FSIC and 7-pin SL cylinder
• Keyway: Patented Everest 29 S123 (standard); also available in open, restricted, and Primus XP security levels with available master keying and construction keying
• Certifications: Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.

Knob and Lever Styles:

• GEO: Georgian Knob – Width: 2 1⁄8″. Projection: 2 5⁄16″
• PLY: Plymouth Knob – Width: 2 1⁄8″. Projection: 2 5⁄16″
• ORB: Orbit Knob – Width: 2 1⁄8″. Projection: 2 7⁄8″
• TUL: Tulip Knob – Width: 2″. Projection: 2 5⁄8″
• LEV: Levon Lever – Width: 3 3⁄32″. Projection: 3 3⁄16″
• Rose Standard: Diameter: 2 9⁄16″

Non-Keyed Functions:

• A10:
• ANSI F75
• Passage latch
• Both knobs always unlocked
• A25:
• Exit lock
• Blank plate outside
• Inside knob is always unlocked
• Specify door thickness
• A30:
• ANSI F77
• Patio lock
• Push-button locking
• Turn inside knob or close door to release button and prevent lock-out
• A40:
• ANSI F76
• Bath/bedroom privacy lock
• Push-button locking
• Can be opened from outside with small screwdriver
• Turn inside knob or close door to release button
• A43:
• ANSI F79
• Communicating lock
• Turn-button in outer knob locks and unlocks knob and inside thumbturn
• A170:
• Single dummy trim
• Dummy trim for one side of door
• Used for door pull or as matching inactive trim

Keyed Functions:

• A53:
• ANSI F109
• Entrance lock
• Turn/push-button locking: pushing and turning button locks the outside knob, requiring use of a key until button is manually unlocked
• Push-button locking: pushing button locks outside knob until it is unlocked by key or by turning the inside knob
• A70:
• ANSI F84
• Classroom lock
• Outside knob is locked and unlocked by key
• Inside knob is always unlocked
• A79:
• Communicating lock with blank plate
• Locked or unlocked by key from outside
• Blank plate inside
• A80:
• ANSI F86
• Storeroom lock
• Outside knob is fixed
• Entrance by key only
• Inside knob always unlocked
• A85:
• ANSI F93
• Faculty restroom lock
• Outside knob is fixed
• Entrance by key only
• Push-button on inside knob activates visual occupancy indicator, allowing only the emergency master key to operate
• Rotation of inside spanner button provides lock-out feature by keeping indicator thrown

Cylinders:

• Conventional Cylinder:
• P: Conventional, 6-pin keyed 5
• Z: SL 7-pin Conventional (A2 pinning)
• L: Less Conventional, 6-pin
• Full size interchangeable core (FSIC):
• R: 6-pin FSIC
• M :SL 7-pin FSIC (A2 pinning)
• J: Less FSIC
• T: Refundable FSIC construction core

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 609 – Antique brass
• 612 – Satin bronze
• 613 – Oil rubbed bronze
• 625 – Bright chromium plated
• 626 – Satin chromium plated
• 629 – Bright stainless steel
• 630 – Satin stainless steel
• 643E – Aged bronze

Attributes

Ship via: Can Ship UPS

Alternate Codes: A53-PD-ORB-605 2-3/8 BS T-STRIKE, A53PDORB605-2 3/8 BS T-STRIKE, A53PDORB605238BSTSTRIKE, SCHA53PDORB605-2 3/8 BS, SCHA53PDORB605-2 3/8 BS T-STRIKE

Backset: 2-3/8″

Category: Commercial Locks, Cylindrical Knobs, Lock Sets

Cylinder Type: 6-Pin, Conventional – Schlage

Door Application: Cylindrical Knobs

Door Thickness: 1-3/8″-2-3/4″

Faceplate Style: Round Corner, Square Corner

Faceplate Width: 1″, 1-1/8″

Finish Code: 605

Finish Color: Polished Brass

Function: Entry

Keying: Keyed Different

Keyway: Schlage C

Knob Design: Schlage Orbit

Latchbolt Type: Deadlatch, Default Deadlatch

Manufacturer: Schlage Lock Company

Series: A

Strike Type: T-Strike
