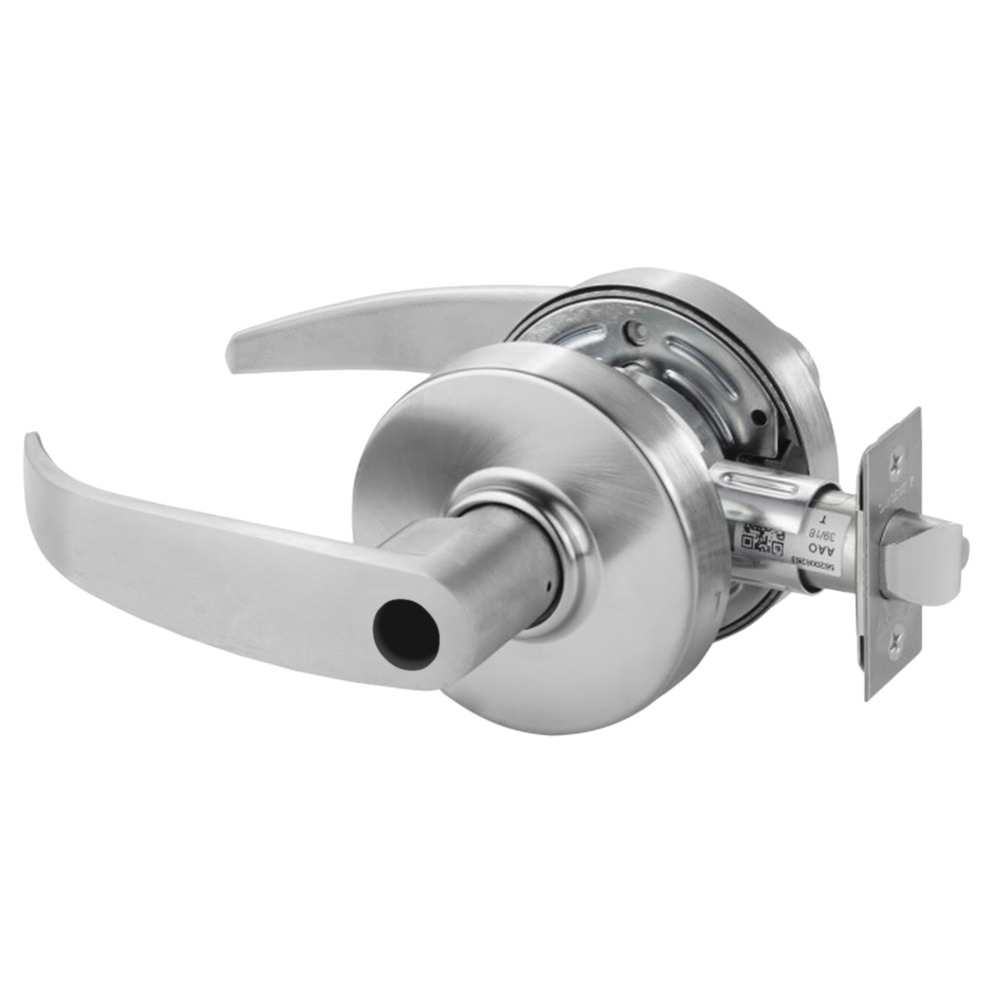

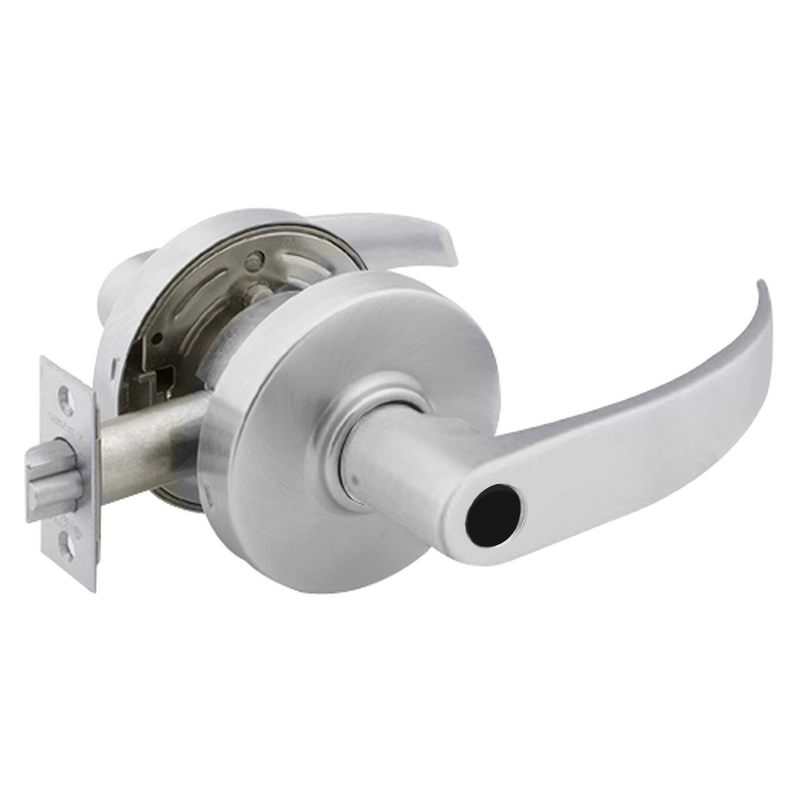

Sargent 28LC-7G05 LP 26D Cylindrical Lock

Sargent 28LC-7G05 LP 26D Cylindrical Lock
A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability

Attributes

Ship via: Can Ship UPS

Alternate Codes: 28-7G05LP26D-LC, 28-LC-7G05LP26D, 287G05LP26DLC, 28LC7G05LP26D, SAR28-7G05LP26D-LC

Ansi Function: F81 – Office

Ansi Function Description: Entry/Office

Baa Qualified: Yes

Bolt Protection: 1/2″

Bore Hole Diameter: 2-1/8″

Country of Origin: Usa

Cylinder Type: Less Cylinder

Cylinders Present: Single Cylinder

Door Thickness: 1-3/8″ – 1-3/4″

Dust Box: None

Finish: 626/US26D

Finish Description: Satin Chrome

Fire Rated: No

Function: 05-Entrance or Office

Function Family: Entrance/Office

Grade: Grade 2

Hand: Not Handed

Latch Backset Dim: 2-3/4″

Latch Bore Diameter: 7/8″

Latch Number: 07-2430

Latch Type: Dead Latch (Guarded)

Lever Knob: Lever

Lever Knob Design: P – Lever

Lever Knob Design Family: Curved Return Lever

Lever Knob Design Name: P

Limited Warranty: 5 Years

Lock Face Size: 2-1/4″ x 1-1/8″

Manufacturer Function: Entrance/Office

Manufacturer Function Description: Operated by deadlocking latch, latch by either lever unless outside lever is locked by push/turn button in inside lever, push button released by key outside or lever inside, turn button must be released manually, key retracts latch when outside lever is locked.

Maximum Door Thickness: 1-3/4″

Minimum Door Thickness: 1-3/4″

Num Pins: 6

Projection: 2-1/2″

Rose Escutcheon: Rose

Rose Escutcheon Design: L – Rose

Rose Escutcheon Dimensions: 3-3/8″

Screws: Combination

Series: 7-Line Bored Lever Locks

Strike Dimensions: 1-1/4″ x 4-7/8″

Strike Height: 4-7/8″

Strike Number: 808

Strike Type: ASA

Strike Width: 1-1/4″

Structure Cylinder: LC

Structure Function: G05

Structure Latch Number: 193762

Structure Outside Finish: US26D

Structure Outside Trim: P

Structure Series: 7Line

Structure Strike Number: 808

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks
