Richelieu WEBKIT1240112 CS Ceiling Mount Track System offers a robust solution for standard sliding wood doors, accommodating weights of up to 500 lb (227 kg). This versatile system is ideal for a range of applications, including residential, commercial, and institutional projects, providing both functionality and aesthetic appeal. The system includes hardware sets designed for doors weighing up to 200 lb (90 kg) and options with SofStop soft-close mechanisms for smoother operation, suitable for doors up to 176 lb (80 kg) with single or twin action, or single action for doors up to 264 lb (120 kg). The CarriSnap mounting suspension plate simplifies installation, allowing for tool-free mounting and release of the upper trolley. Designed for door thicknesses between 1 3/8 in (35 mm) and 1 3/4 in (45 mm), the track system supports door widths of 36 to 48 in, and offers a sleek bronze anodized aluminum finish. The large wheel trolleys with precision ground bearings ensure a smooth sliding experience. Additionally, recessed floor guide channels are available for extra-wide doors, enhancing stability. This contemporary track system combines strength and style, making it a top choice for sliding door applications.

CS Ceiling Mount Track System

The Cavity Sliders CS Ceiling Mount Track Systems are for standard sliding wood doors weighing up to 500 lb (227 kg) each.
Features:
– Hardware sets without soft-close mechanisms for doors weighing up to 200 lb (90 kg) and 500 lb (227 kg)
– Hardware sets with SofStop soft-close mechanisms choices are single or twin action for doors weighing up to 176 lb (80 kg) or single action for doors up to 264 lb (120 kg) each
– CarriSnap mounting suspension plate for the top of the door for mounting and releasing the upper trolley without tools
– Track sets for doors 1 3/8 in (35 mm) to 1 3/4 in (45 mm) thick
– Clip-on fascia available in silver (clear) and bronze anodized finish
– Recessed floor guide channels and guide are available for extra wide doors
– Large wheel trolleys with precision ground bearings for smooth running

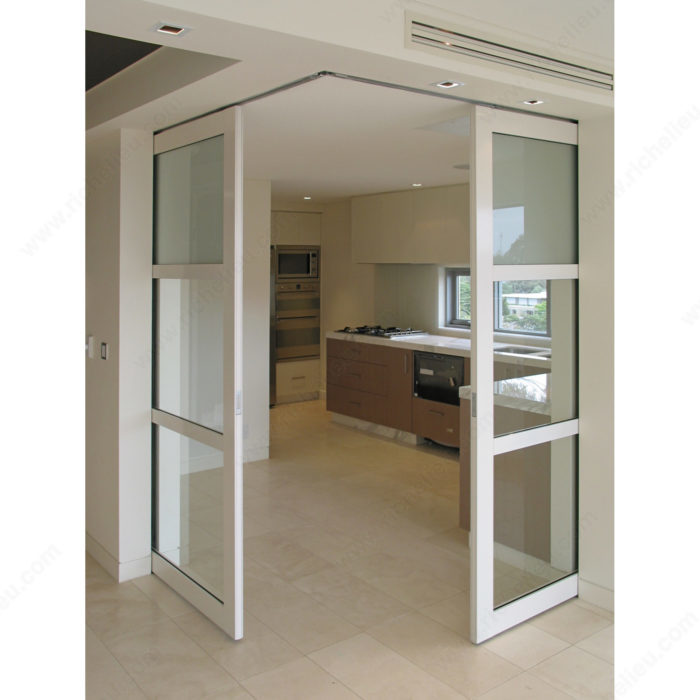

Ideal for residential, commercial, and institutional projects for a wide variety of applications.

Attributes

Ship via: No UPS – Common Carrier Only

Adjustable: Yes

Application: Standard Access Door

Brand: Cavity Sliders

Detailed Door Movement: Single Sliding

Door Height: 120 in

Door Installation: Top Hung

Door Material: Wood

Door Movement: Straight Sliding

Door Thickness: 1 3/8 to 1 3/4 in

Door Width: 36 to 48 in

Finish: Bronze Anodized Aluminum

Function: Sliding Door

Length – Overall Dimensions: 96 in

Load Capacity: 500 lb

Manufacturing Material: Aluminum

Number of Doors: 1

Overall Length: 96 in

Product #: WEBKIT1240112

Product number: WEBKIT1240112

Product №: WEBKIT1240112

Roller Type: Ball Bearing

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Soft- Closing: No

Style: Contemporary

Track Length: 96 in

Track Material: Anodized Aluminum

Track Mounting: Ceiling Mount

Track Type: Box Track

Track type: Box Track

Weight Capacity per Door: 500 lb
