Richelieu HIN651226 Glass Door Hinge Assembly Instructions

Richelieu HIN651226 Glass Door Hinge Assembly Instructions

Richelieu HIN651226 Glass Door Hinge Assembly offers a sleek and efficient solution for mounting glass doors within cabinets or furniture. Designed to install directly onto the side panel of your cabinetry, this hinge assembly eliminates the need for drilling into the glass, ensuring a seamless installation process.Crafted from durable steel and finished in a stylish chrome, this hinge not only provides reliable performance but also enhances the overall aesthetic of your furniture. It accommodates glass thicknesses up to 3/16 inches and supports a maximum door height of 31 1/2 inches, with a width of up to 19 5/8 inches. With a load capacity of 5.51 pounds, it is ideal for lightweight glass doors. Included in the package are screws and a self-adhesive plate for added convenience during installation. The hinge has a height of 9/16 inches, and it’s important to note that 1/2 inch should be subtracted from the door height for proper fitting.Richelieu’s commitment to quality and functionality shines through in this hinge assembly, making it an excellent choice for both building professionals and discerning homeowners looking for efficient and stylish solutions for their glass door installations.

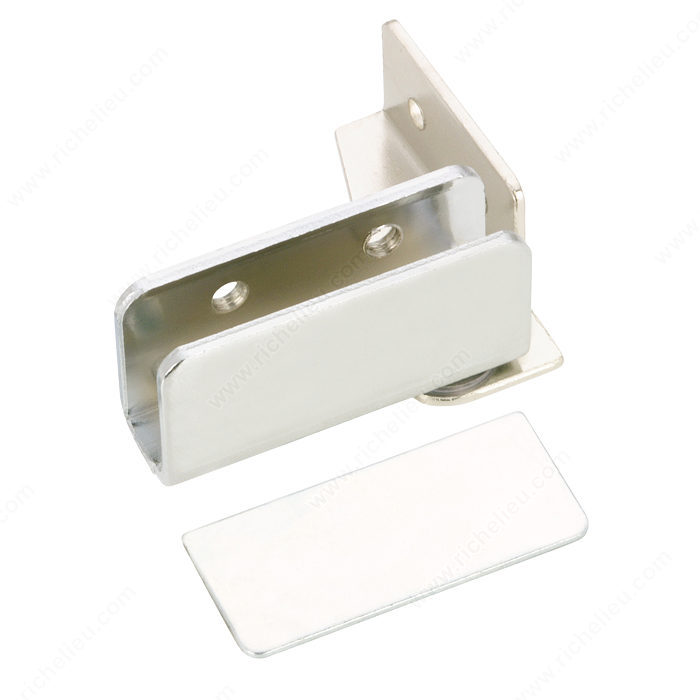

Glass Door Hinge Assembly

Hinge for glass door recessed within a cabinet or furniture. Screws into the side panel of the furniture or cabinet (no drilling of the glass).

Included products

Includes screws and self-adhesive plate.

Attributes

Ship via: Can Ship UPS

Dimensions to subtract from the height: 1/2 in

Finish: Chrome

Height: 14 mm

Height of Door to Respect: Max. 800 mm

Length: 40 mm

Load Capacity: Max. 2.5 kg

Material: Steel

Product #: HIN651226

Product number: HIN651226

Product №: HIN651226

Screw/ Nail: Included

Thickness of Glass: Max. 5 mm

Thumb Screws: Metal

Unit: Pair

Unit 1: case – 200

Unit 2: case – 200

Width of Door to Respect: Max. 500 mm
