Richelieu GR6436440 Zargen Drawer Slide Guide

Richelieu GR6436440 Zargen Drawer Slide Guide

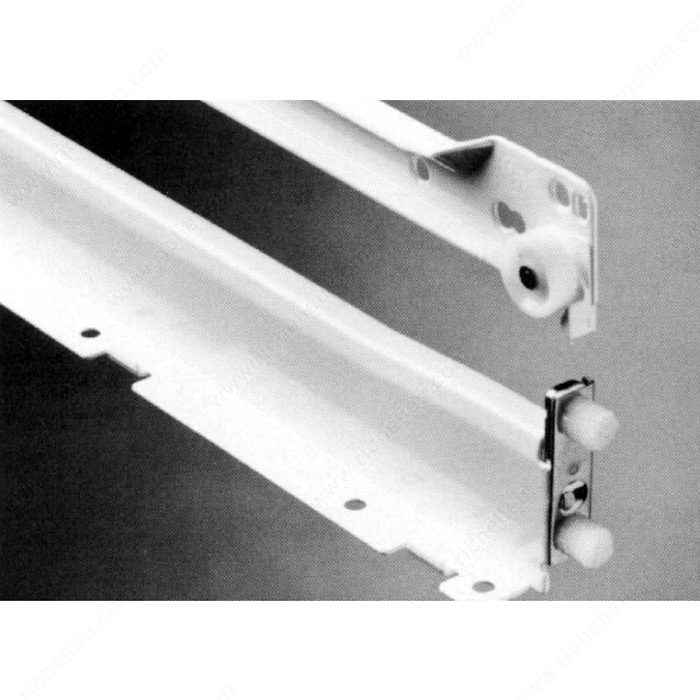

Richelieu GR6436440 Zargen Drawer Slide offers a dual-functionality that serves both as a drawer slide and the side of a drawer, making it an ideal choice for various storage solutions. Compatible with drawer front, back, and bottom panels, this slide enables the creation of customized drawers that can be used as is or equipped with divider and side rails for file storage boxes. The traditional 3/4 extension design allows for easy access to your items, while the option to add a special intermediate member for full extension enhances versatility. With a load capacity of 100 lbs, the GR6436440 is constructed from durable metal, ensuring longevity and reliable performance in frameless cabinet applications. Its nylon slides provide smooth operation, and the side clearance of just 5 mm (3/16″) ensures a snug fit. Measuring 17 3/8 inches in length and depth, and 8 3/8 inches in height, this slide is designed to meet the demands of general storage needs. Additionally, a central locking adapter is available to secure all drawers, adding a layer of convenience and safety. Trust Richelieu’s Zargen series for quality and functionality in your cabinetry projects.

Zargen Drawer Slide

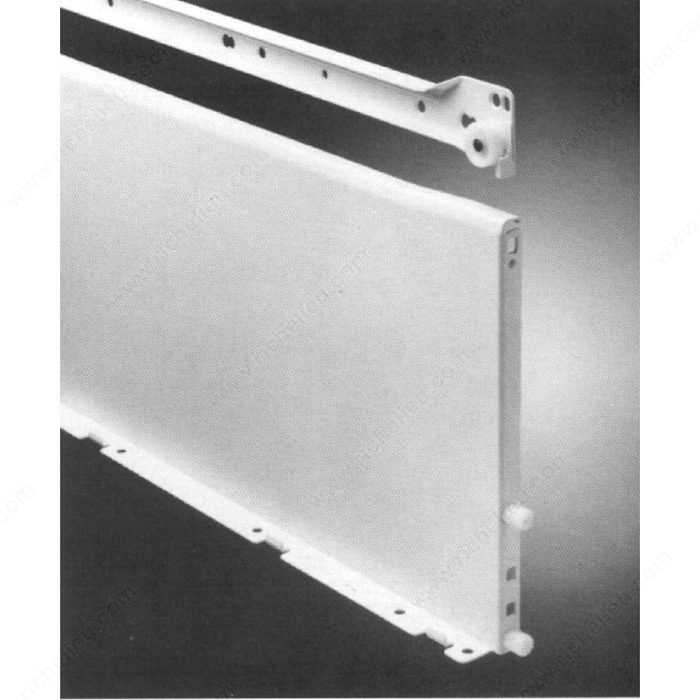

This Zargen series 6035/6036/6236/6436 slide functions both as a drawer slide and the side of a drawer. A drawer “front panel”, “back panel”, and “drawer bottom” complete the drawer. The completed drawer can be used “as is”, with divider rails or with side rails to make file drawer “boxes”. A central locking adapter is also available to lock all drawers.
Side Clearance: 5 mm (3/16″)

Application

This is a traditional 3/4 extension drawer slide. If you wish to make any drawer extend fully, simply add a special intermediate member.

Attributes

Ship via: Can Ship UPS

Application: General Storage

Bearing Type: Nylon Slides

Brand: Grass

Cabinet Model: Frameless

Configuration: High Panels

Depth: 440 mm

Drawer Panels: Single

Drawer Use: Standard

Finish: White

Height: 213 mm

Length: 440 mm

Load Capacity: 100 lb

Material: Metal

Motion Technology: Self-Closing

Partial Extension: 3/4

Product #: GR6436440

Product Line: Zargen

Product number: GR6436440

Product №: GR6436440

Slide Extension: Partial Extension

Slide Mounted: Side Mounted

Unit: Pair

Unit 1: case – 5

Unit 2: case – 5
