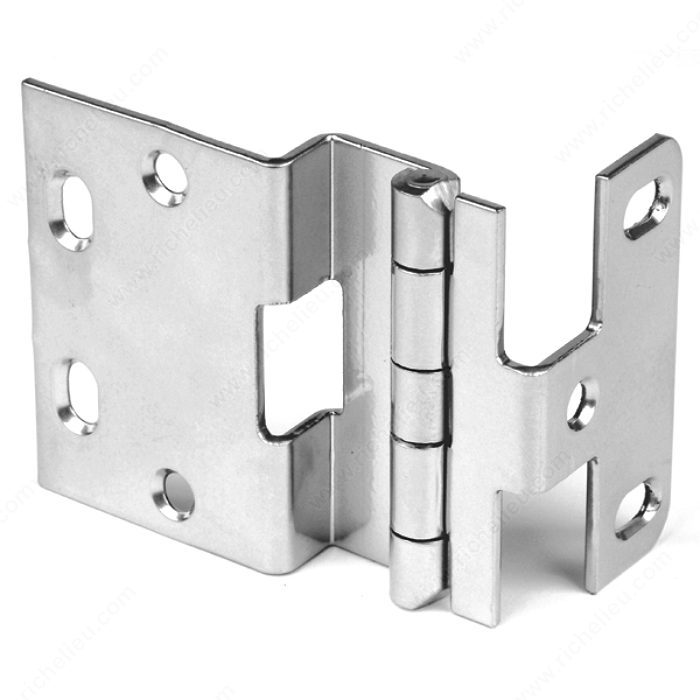

Richelieu 918314170 1/2″ Overlay Institutional Hinge

Richelieu 918314170 1/2″ Overlay Institutional Hinge

Richelieu 918314170 1/2″ Overlay Institutional Hinge is designed for seamless integration into casework, cabinets, wardrobes, and similar furniture, featuring hospital tips for enhanced safety and functionality. This hinge boasts a generous 270° opening angle, allowing for easy access to your cabinetry while its five smooth machine-knuckled edges ensure durability and effortless operation. Crafted from high-quality Stainless Steel 304, the hinge not only offers a sleek brushed finish that complements modern design aesthetics but also meets rigorous standards with ANSI/BHMA 156.9 Grade 1 certification. The hinge is designed for a door thickness of 1/2 inch and features a 9/32 inch overlay, making it a versatile choice for various applications. With a non-removable pin, security is prioritized, while the screw-on fixing type ensures straightforward installation. Included with the hinge are mounting screws for added convenience. The hinge is suitable for side panel thicknesses of 1/2 inch and is compatible with #8 screws (not included). Elevate your furniture’s functionality and aesthetic appeal with the Richelieu 918314170 Institutional Hinge, a perfect blend of innovation and reliability for building professionals and discerning homeowners alike.

1/2″ Overlay Institutional Hinge

– Overlay hinge for door with hospital tips used on casework, cabinets, wardrobes or similar furniture.
– 270° opening angle with 5 smooth machine-knuckled edges and non-removable pin.

Included products

Mounting screws included.

Attributes

Ship via: Can Ship UPS

Color/ Finish: Stainless Steel

Door Overlay: 9/32 in

Door Thickness: 1/2 in

Door Type: Narrow Aluminum-Framed Door

Finish: Brushed Stainless Steel

Fixing Type: Screw-On

Gauge: 2.3 mm

Height: 2 3/4 in

Hinge Opening Angle: +270°

Knuckle: 2 3/4 in

Material: Stainless Steel

Offset: 1/2 in

Overlay: 1/2 in

Product #: 918314170

Product number: 918314170

Product №: 918314170

Screw/ Nail: #8 Screw

Side panel thickness: 1/2 in

Standards and Certifications: ANSI/BHMA 156.9 Grade 1

Type: Institutional Hinge

Width – Overall Dimensions: 1/2 in
