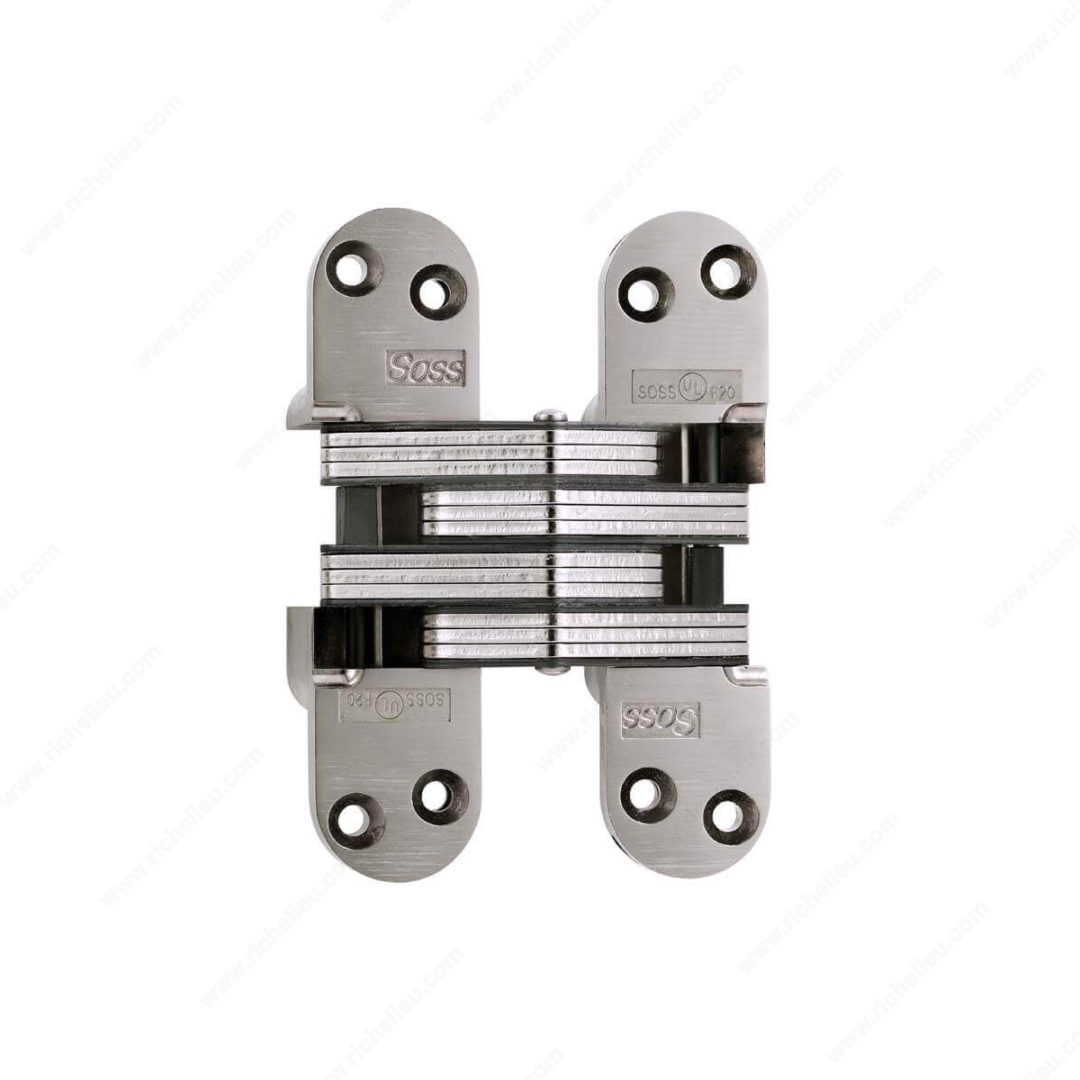

Richelieu 429220185 Concealed Steel Hinge Model 220

Richelieu 429220185 Concealed Steel Hinge Model 220

Richelieu Concealed Steel Hinge – Model 220 combines superior appearance with durable functionality. Designed to enhance both wood and metal doors, this hinge is perfect for a variety of applications, ensuring a sleek, modern look while providing reliable performance. With a cabinet angle of 180° and a reversible handedness, this hinge offers flexibility in installation, accommodating diverse project requirements. The satin nickel finish not only adds a touch of elegance but also ensures long-lasting resistance to wear. It is fire-resistant for up to 20 minutes, meeting important safety standards. Installation is straightforward, thanks to the screw-on fixing type and included screws, allowing for quick and secure mounting. The hinge features a minimum door thickness of 2 inches and a leaf body mortise length of 2 15/16 inches, making it suitable for both residential and commercial applications.With a door/jamb gap of 1/2 inch and a gap in the closed position of just 1/16 inch, this hinge provides a seamless fit that won’t compromise aesthetics. The UL R13634 certification assures you of its quality and reliability. Elevate your projects with the Richelieu Concealed Steel Hinge – Model 220, where functionality meets style.

Concealed Steel Hinge – Model 220

Richelieu’s concealed hinges offer superior appearance and durability with contemporary and functional style. They easily install and can be used for many applications on wood or metal doors to meet all your needs.

Attributes

Ship via: Can Ship UPS

Cabinet Angle: 180°

Center to Center (mm): 4 1/8 in

Dimension A: 1 3/8 in

Dimension B: 1 1/16 in

Dimension C: 5 1/2 in

Dimension D: 1/2 in

Dimension E: 9/32 in

Dimension F: 2 15/16 in

Dimension G: 1/16 in

Dimension H: 1 63/64 in

Dimension I: 15/32 in

Door/ Jamb Gap: 1/2 in

Door/ Jamb Gap (mm): 1/2 in

Door/ Jamb Gap in Closed Position: 1/16 in

Door/ Jamb Inset: 9/32 in

Door/ Jamb Inset (mm): 9/32 in

Finish: Satin Nickel

Fire Resistant: 20 minutes

Fixing Type: Screw-On

For Hinge #: 220

Handedness: Reversible

Height: 1 63/64 in

Hinge Opening Angle: +180º

Leaf Body Mortise Length: 2 15/16 in

Leaf Gap: 1 1/16 in

Leaf Mortise Depth: 15/32 in

Length: 5 1/2 in

Material: Steel

Minimum Door Thickness: 2 in

Mounting Type: Mortise

Product #: 429220185

Product number: 429220185

Product №: 429220185

Screw/ Nail: Screw/Nail (Included)

Standards and Certifications: UL R13634

Type of Hinge: Wood or Metal

Width: 1 3/8 in

Wood Screw Sizes: #12 x 1-1/2″ (5.5 mm x 38 mm)
