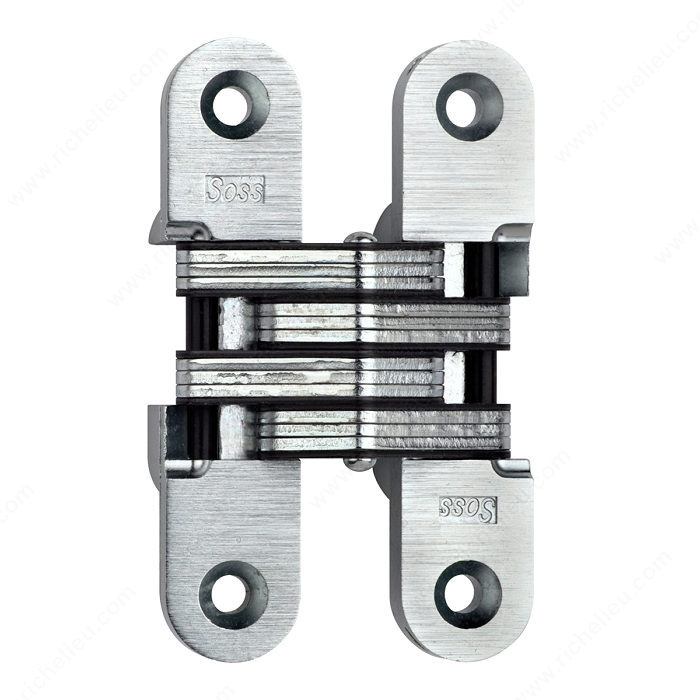

Richelieu 429216ORB Concealed Steel Hinge for Hinge 216

Richelieu 429216ORB Concealed Steel Hinge for Hinge 216

Richelieu 429216ORB Concealed Steel Hinge – For Hinge 216 offers a blend of contemporary design and robust functionality, making it an ideal choice for both wood and metal doors. This hinge features an oil-rubbed bronze finish that adds a touch of elegance while ensuring durability and longevity. Designed for easy installation, the hinge supports a full 180° opening angle, providing maximum accessibility. Its reversible handedness allows for flexible application in various configurations. With a minimum door thickness requirement of 1 3/8 inches, it is suitable for a range of door sizes and types, ensuring a secure fit. The hinge is engineered for reliability, offering 20 minutes of fire resistance, making it a safe choice for interior spaces. It features a mortise mounting type, and all necessary screws are included for quick and hassle-free installation. The dimensions, including a height of 1 15/32 inches and width of 1 inch, ensure it fits seamlessly within your design specifications. With a door/jamb gap of 15/64 inches and a leaf mortise depth of 15/32 inches, the Richelieu 429216ORB hinge not only meets functional needs but also maintains an aesthetically pleasing appearance, making it a perfect fit for modern architectural projects.

Concealed Steel Hinge – For Hinge 216

Richelieu’s concealed hinges offer superior appearance and durability with contemporary and functional style. They easily install and can be used for many applications on wood or metal doors to meet all your needs.

Attributes

Ship via: Can Ship UPS

Cabinet Angle: 180°

Center to Center (mm): 3 5/8 in

Dimension A: 1 in

Dimension B: 47/64 in

Dimension C: 4 5/8 in

Dimension D: 15/64 in

Dimension E: 1/4 in

Dimension F: 2 19/32 in

Dimension G: 1/16 in

Dimension H: 1 15/32 in

Dimension I: 15/32 in

Door/ Jamb Gap: 15/64 in

Door/ Jamb Gap (mm): 7/32 in

Door/ Jamb Gap in Closed Position: 1/16 in

Door/ Jamb Inset: 1/4 in

Door/ Jamb Inset (mm): 23/32 in

Finish: Oil-Rubbed Bronze

Fire Resistant: 20 minutes

Fixing Type: Screw-On

For Hinge #: 216

Handedness: Reversible

Height: 1 15/32 in

Hinge Opening Angle: +180º

Leaf Body Mortise Length: 2 19/32 in

Leaf Gap: 47/64 in

Leaf Mortise Depth: 15/32 in

Length: 4 5/8 in

Material: Steel

Minimum Door Thickness: 1 3/8 in

Mounting Type: Mortise

Product #: 429216ORB

Product number: 429216ORB

Product №: 429216ORB

Screw/ Nail: Screw/Nail (Included)

Standards and Certifications: UL R13634

Type of Hinge: Wood or Metal

Width: 1 in

Wood Screw Sizes: #14 x 1-1/2″ (6.3 mm x 38 mm)
