Richelieu 1349100 SO-TECH Lift System Instructions

Richelieu 1349100 SO-TECH Lift System Instructions

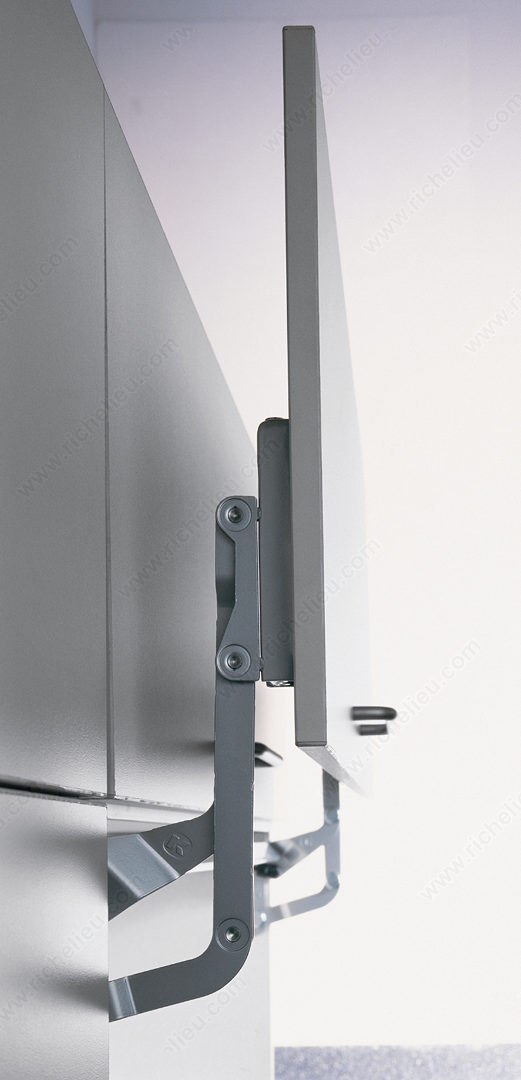

Richelieu 1349100 SO-TECH Lift System offers a seamless solution for upper cabinet doors, enhancing both functionality and aesthetics. Designed with convenience in mind, this system features door fixing brackets that mount separately, making installation straightforward and efficient. The three-dimensional door adjustment capability ensures a precise fit, accommodating any adjustments required for optimal performance. This lift system is equipped with a compressed spring and stop control, providing smooth operation while securely holding the door in place. Ideal for wood doors with a height of 13 7/8 inches and a weight capacity of 15.4 pounds, the SO-TECH Lift System is available in three versions, allowing you to select the model that best matches your specific door width and weight. Crafted from durable metal with a sleek light gray finish, this system integrates effortlessly into various kitchen designs. The aluminum connector bar is also customizable, easily cut to the required size for a perfect fit. Note that screws and nails are not included with the system, allowing for flexibility in installation. Elevate your cabinetry with the Richelieu SO-TECH Lift System, where functionality meets modern design.

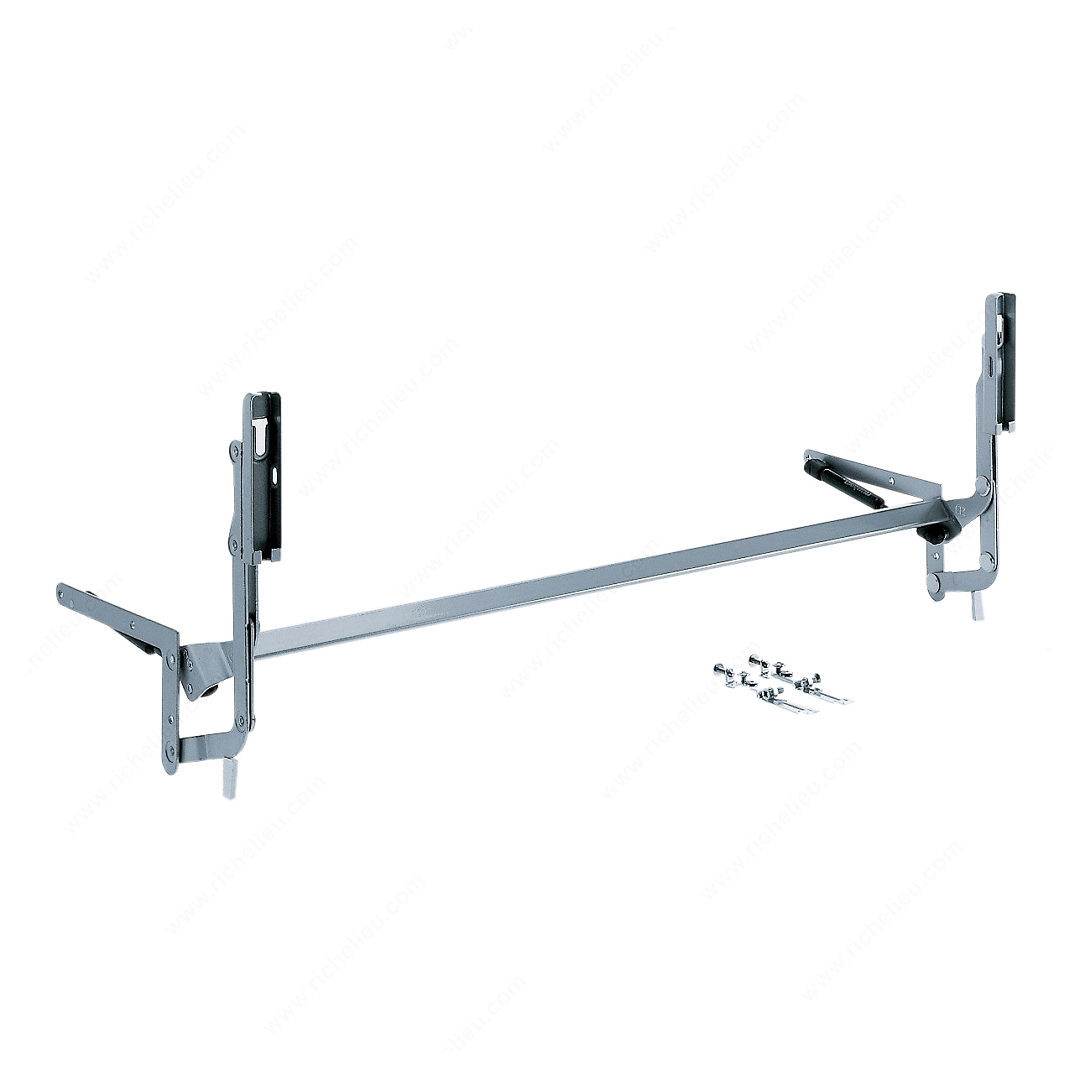

SO-TECH Lift System

Door fixing brackets mount separately for easy installation and three-dimensional door adjustment. Compressed spring with stop control. Ideal for upper cabinets. Available in 3 versions; select the model corresponding to your door’s width and weight. Aluminum connector bar can be cut to the required size.

Attributes

Ship via: Can Ship UPS

Brand: Richelieu

Capacity: Max. 7 kg

Door Height: Min. 352 mm

Door Type: Wood Door

Door Weight: 7 kg

Door Weight – NEW: 7 kg

Finish: Gray

Material: Metal

Opening Types: Parallel Opening

Opening Types NEW: Parallel Opening

Product #: 1349100

Product number: 1349100

Product №: 1349100

Screw/ Nail: Not Included

System Name: SO-TECH

System Type: Lift

Unit 1: skid – 66
