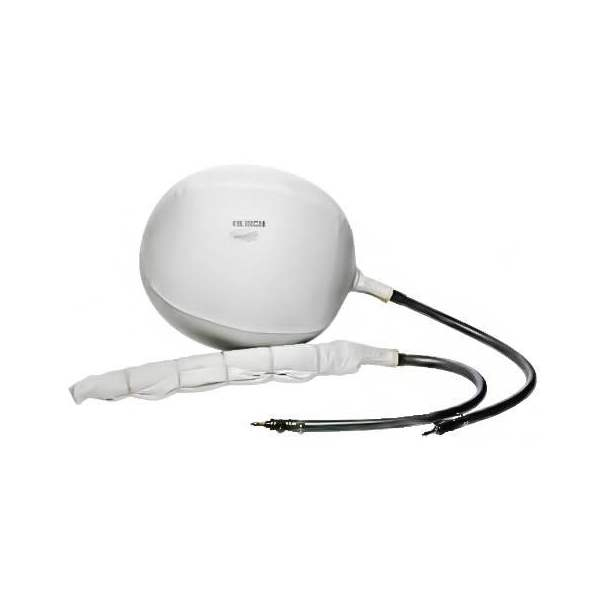

Petersen 154-024-G 24″ Inflatable Low Pressure Gas Pipe Plug

Original price was: $965.60.Current price is: $193.12.

Add to Wishlist
Compare
154-024-G_A

Gas Plugs/Bags with inner bladder made of high quality Nitrile for hydrocarbon resistance and encased in a 100% Polyester fabric cover.

Features:

  • Often used for purging gas lines for welding and maintenance
  • Very flexible with small deflated diameter to navigate small or constricted openings and block out of round pipelines
  • Integral inflation hose on smaller sizes
  • Pressure monitoring gauge available

Country of Origin USA
Dia. Deflated 4″ (102mm)
Dia. Hot Tap Hole, Min 4″ (102mm)
Dia. Max 24″ (610mm)
Inflation Hose Length Standard 3′ (914mm) length hose
Length Deflated 39.75″ (1010mm) Fabric
Material, Body Polyester Outer Ply, Nitrile Bladder
Material, Metal Components Aluminum and Plated Carbon Steel
Port, Inflation Schrader Tire Valve
Pressure Pipeline Max Head 0.5 ft (0.15 m)
Pressure, Inflation Max 3 psi (0.21 bar)
Sage Subcategory Number W154
Shipping Wt. 13 Lb (5.90 Kg)
Temperature Max. Service F 150 F (65.55 C)
