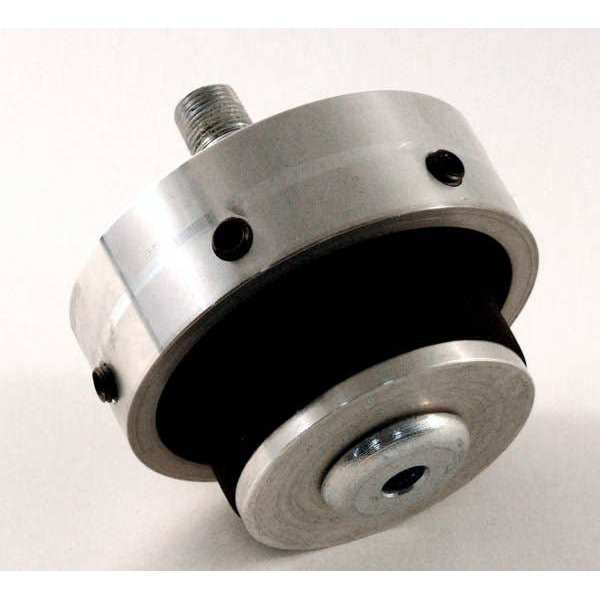

Petersen 145-9026- 2.6″-2.8″ Dia Mechanical High Pressure Test Pipe Plug

Original price was: $542.60.Current price is: $108.52.

Add to Wishlist
Compare
145-9026-_A

Standard seal pipe plug is Aluminum body with steel hardware and solid nitrile seal. Easy installation, replaceable seals, positive seal and engineered to restrain rated pipeline pressure

Typical Applications:

  • Force and water main
  • lift stations
  • nuclear cooling lines
  • fire protection lines
  • special plant situations
  • irrigation supply lines
  • and many other projects where isolation is required for testing and construction.

Note: Rated pressures listed are for steel pipe only. Other pipe materials would have a lower pressure rating or require additional restraints.

By-Pass 3/8″ M
Country of Origin USA
Dia. Max 2.812″ (71mm)
Dia. Min 2.625″ (67mm)
Lngth, Overall Approx. 4.5″ (114mm)
Lngth, Seal 2″ (51mm)
Material, Body Aluminum
Material, Hardware Steel
Material, Seal Nitrile
Pipeline Max PSI 200 psi (13.79 bar)
Plug Slip Restraint Method OD set screw restraint
Pressure Pipeline Max Head 462 ft (140.82 m)
Sage Subcategory Number W1459
Seal Expansion System Hex Nut
Shipping Wt. 2 Lb (0.91 Kg)
Style End of Pipe
Temperature Max. Service F 200 F (93.33 C)

Reviews

There are no reviews yet.

Be the first to review “Petersen 145-9026- 2.6″-2.8″ Dia Mechanical High Pressure Test Pipe Plug”

Your email address will not be published. Required fields are marked *

Related products

Petersen 145-9031- 3.2″-3.3″ Dia Mechanical High Pressure Test Pipe Plug

Rated 0 out of 5
Original price was: $640.60.Current price is: $128.12.
Petersen 145-9031- 3.2″-3.3″ Dia Mechanical High Pressure Test Pipe Plug

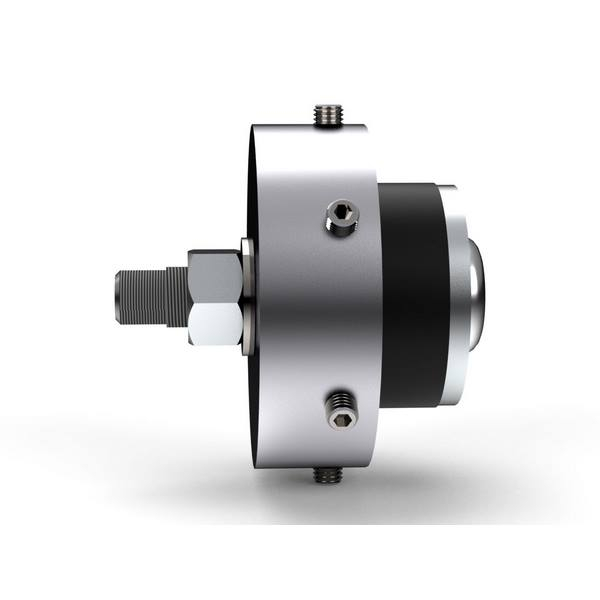

Petersen 145-9028- 2.8″-3″ Dia Mechanical High Pressure Test Pipe Plug
