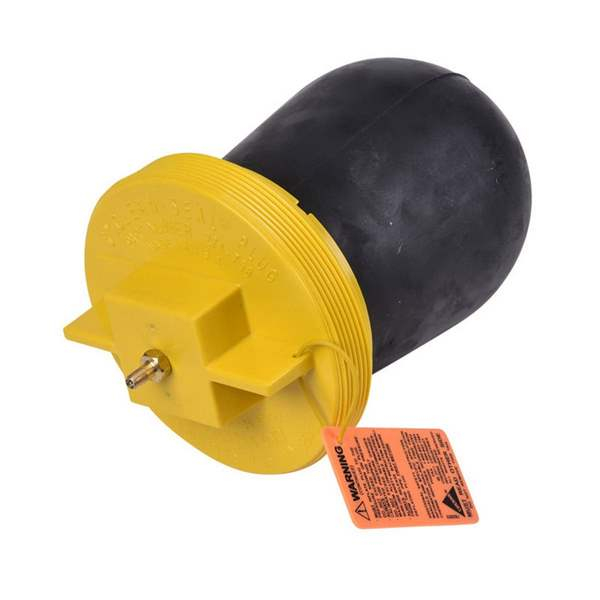

Petersen 130-1060- 6″ Dia Inflatable Rubber Stack Test Style Pipe Plug

Original price was: $153.87.Current price is: $38.47.

Add to Wishlist
Compare
130-1060-_A

Designed for stack testing of drain, waste, and vent plumbing systems, 130-1 Stack Test Style Rubber Test plugs thread into a standard test tee. The bladder is inflated and then water is introduced into the pipe. Upon test completion, deflate the test tee plug bladder; water travels down the pipe, eliminating test water backsplash.

Features:

  • Stack testing equipment works in both plastic and cast-iron test tees
  • Natural rubber body provides a leak-free seal
  • High-impact ABS threads for maximum durability
  • Removable/replaceable tire inflation valve fitting

By-Pass None
Country of Origin USA
Dia. Deflated 6.63″ (168mm)
Dia., Seal Max 6″ (150mm)
Infl. Press. Required 25 psi (1.7 bar)
Length Deflated 11″ (280mm)
Material, Body Natural Rubber
Material, Seal Natural Rubber
Nominal Size 6″ (150mm)
Port, Inflation 1/4″ Schrader Tire Valve
Press. Pipeline Max 13 psi (0.9 bar)/30 ft (9.1 m)
Sage Subcategory Number W1301
Shipping Wt. 4 Lbs (1.81 Kg)
Temperature Max. Service F 120 F (48.89 C)

Reviews

There are no reviews yet.

Be the first to review “Petersen 130-1060- 6″ Dia Inflatable Rubber Stack Test Style Pipe Plug”

Your email address will not be published. Required fields are marked *

Related products

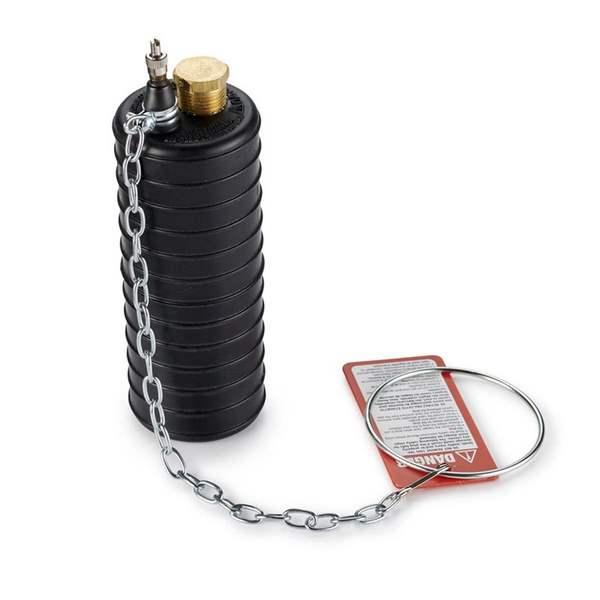

Petersen 130-203-07 3″ Dia Inflatable Municipal Style Pipe Plug, 1/2″ FNPT Bypass

Rated 0 out of 5
Original price was: $185.73.Current price is: $46.43.
Petersen 130-203-07 3″ Dia Inflatable Municipal Style Pipe Plug, 1/2″ FNPT Bypass

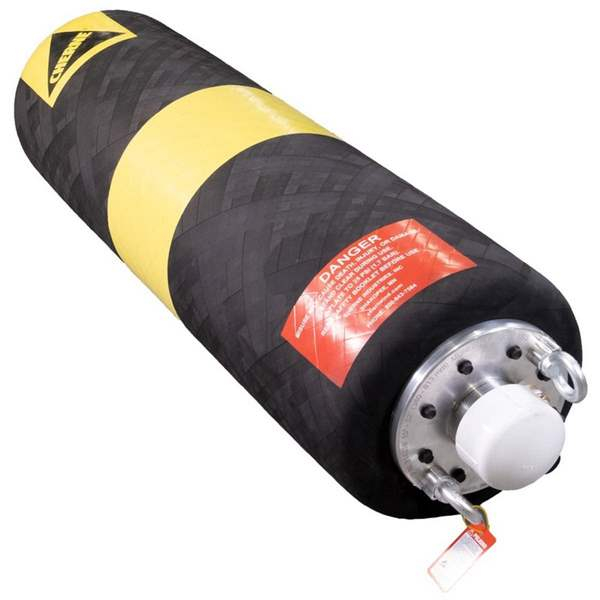

Petersen 130-048-MS 24″ – 48″ Dia Inflatable Plumbers Test Style Pipe Plug with Eye Bolt
