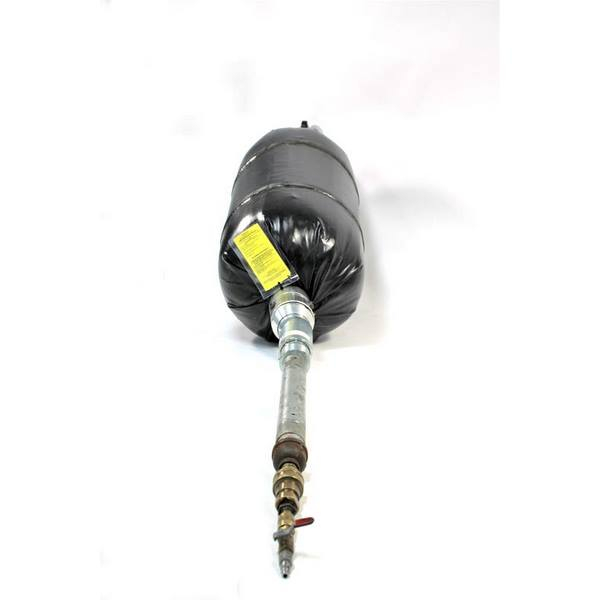

Petersen 128-020- Petestop 20″ Dia Inflatable Line Stop Pipe Plug

SKU: 128-020-_A Category: Plumbing Tag: Petersen

Quickly Block the flow without depressurizing the pipeline!

The Petersen® PeteStop™ 128-Series Line Stop is first line stop system. It has the smallest tap hole of any of the PeteStop® Line Stop Plugs.

Features:

Faster – smaller lighter weight equipment
Less Expensive – smaller hole and smaller equipment needed, less time to complete
Safety Enhanced – smallest tap hole and larger surface area means less stress on pipe
Lower Environmental Risk – smallest tap hole
Plug Abnormal Pipe Conditions – Heavy Corrosion, Out-of-Round Pipe, Weld Bead, etc.
Versatility – Most pressure, chemical, temperature requirements
Limited Space Work Environment
Minimal pressure to seal on pipe ID
Reusable – Heavyweight Ballistic Nylon reinforced Polyeurethane
Conform to the pipe better
Less Stress on Pipe with Structural Integrity Issues or Aging Pipe versus Mechanical Stop
Great Complement to Mechanical Stop where there isn’t a workable seal

Comment 1	Includes Bow Stiffener and Directional Shoe
Country of Origin	USA
Dia. Deflated	6.5″ (165mm)
Dia. Hot Tap Hole, Min	7.75″ (197mm)
Dia. Max	20″ (508mm)
Length Deflated	69″ (1753mm)
Length, Contact	32″ (813mm)
Material, Hardware	Aluminum and Carbon Steel
Material, Outer Ply	Ballistic Nylon Reinforced Polyurethane
Port, Inflation	2 M
Pressure Pipeline Max Head	20 psi (1.38 bar)/46.1′ (14.06 m)
Pressure, Inflation Max	40 psi (2.76 bar)
Sage Subcategory Number	W128
Shipping Wt.	41 Lb (18.60 Kg)
Temperature Max. Service F	150 F (65.5 C)
