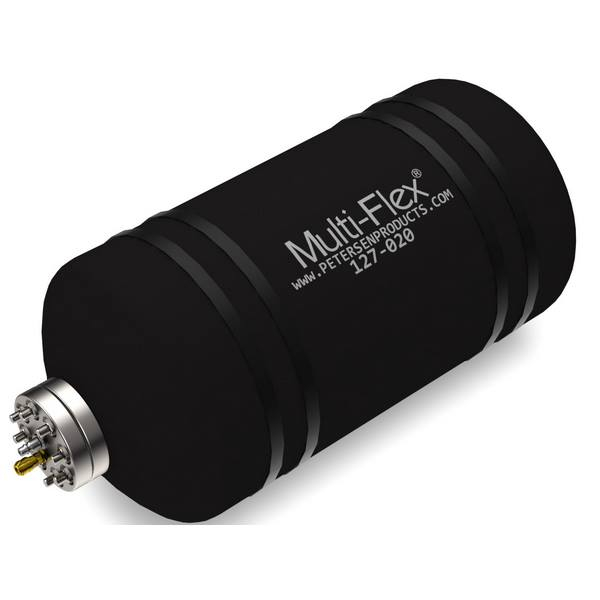

Name: Petersen 127-020- Multi-Flex 20" Dia High Pressure Inflatable Pipe Plug
SKU: 127-020-_A
Availability: InStock

Petersen 127-020- Multi-Flex 20″ Dia High Pressure Inflatable Pipe Plug

SKU: 127-020-_A Category: Plumbing Tag: Petersen

Features:

Safety and environmental risks reduced
Save time and labor cost with lighter weight than molded rubber plugs
Navigates small openings with small deflated diameter and high flexibility
Industrial Ballistic Nylon Reinforced Polyurethane
- Puncture and Tear Resistant
- Synthetic materials mean many more years of shelf life than molded Rubber plugs
Higher pressure and more robust than other inflatable plugs
Conforms most pipe shapes
Small storage area needed
Much Longer pipe contact length than most other plugs

Country of Origin	USA
Dia. Deflated	9″ (229mm)
Dia. Max	20″ (508mm)
Length Deflated	50″ (1270mm)
Length, Cylinder Contact	30″ (762mm)
Length, Overall, Inflated, IN	40″ (1016mm)
Material, Hardware	Aluminum and Plated Carbon Steel
Material, Outer Ply	Ballistic Nylon Reinforced Urethane
Port Location, Infl.	End, Centered
Port, Inflation	1/2″ QD Plug
Port, Press. Monitoring Type	1/4″ QD Coupling
Positioning Loops, No. & Location	Four on Both Ends
Pressure Pipeline Max Head	50 psi (3.45 bar)/115′ (35.15 m)
Pressure, Inflation Max	100 psi (6.89 bar)
Sage Subcategory Number	W127
Shipping Wt.	35 Lb (15.88 Kg)
Temperature Max. Service F	225 F (107.22 C)
