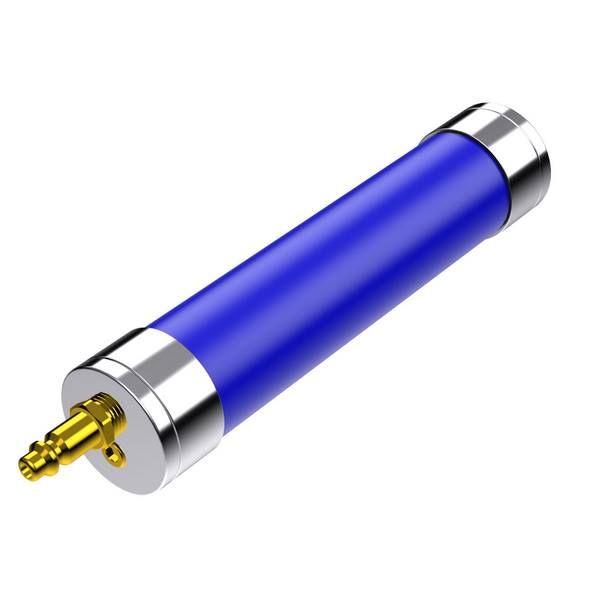

Petersen 126-102- Multi-Flex 2″ Dia Rigid Inflatable Pipe Plug, 1/8″ By-Pass
Original price was: $780.10.$156.02Current price is: $156.02.
Features:
- Safety and environmental risks reduced with these heavy duty bore hole pipe plugs
- May be customized for most size, pressure, temperature, and chemical requirements
- Polyurethane Inflatable Seal
- These synthetic materials do not age like natural rubber plugs
- Higher pressure and more robust than typical inflatable plugsPorts optional on both ends allows connecting two or more series connection
- Bypass Through the center allows pressurizing or monitoring pipeline
- Much Longer pipe contact length than most other plugs
- Alternative uses for the 126 series includes expanding elastic materials for thermal forming process, shrink fit assembly and even vulcanizing
- Anchor points both ends
| By-Pass | 1/8 F |
| Country of Origin | USA |
| Dia. Deflated | 1.75″ (44mm) |
| Dia. Max | 2″ (51mm) |
| Infl. Press. Required | 200 psi (13.8 bar) |
| Length Deflated | 8″ (203mm) |
| Material, Body | Polyether Urethane |
| Material, Hardware | Aluminum and Carbon Steel |
| Port, Inflation | 1/4″ NPTOne End |
| Pressure Pipeline Max Head | 100 psi (6.89 bar) Air, 150 psi (10.34 bar) Water |
| Pressure, Inflation Max | 200 psi (13.8 bar) |
| Sage Subcategory Number | W126 |
| Shipping Wt. | 3 Lb (1.36 Kg) |
| Temperature Max. Service F | 225 F (107.22C) |
