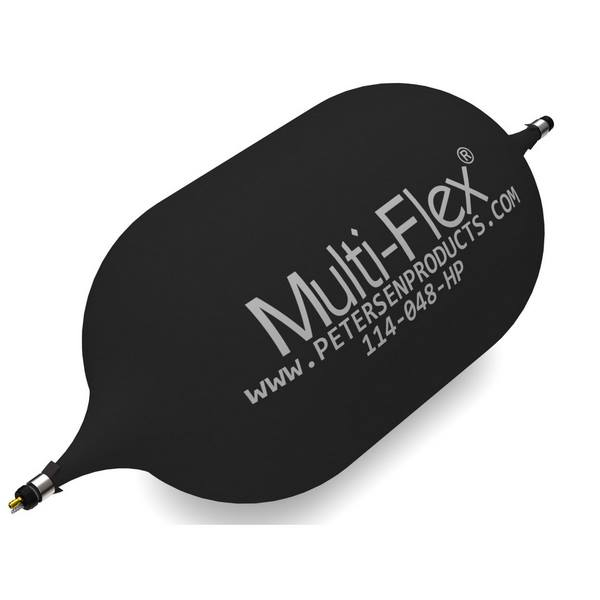

Petersen 114-048-HP 48″ Dia Multi-Flex Medium Duty Inflatable Pipe Plug, High Pressure

SKU: 114-048-HP_A Category: Plumbing Tag: Petersen

Ballistic Nylon Reinforced Nitrile Outer Ply for Hydrocarbon Resistance

Features:

High expansion applications
Hydrocarbon Resistant
Nitrile Reinforced Ballistic Nylon
- Puncture and tear Resistant
- Synthetic materials mean many more years of shelf life than molded Rubber plugs
Small deflated diameter and flexibility navigates small openings
Connect in series for double block and bleed
Conforms to most pipe shapes
Very small storage area

Comment 1	Nitrile Coating Resists Many Hydrocarbons
Country of Origin	USA
Dia. Deflated	10″ (254mm)
Dia. Max	48″ (1219mm)
Length Deflated	129″ (3277mm)
Material, Metal Components	Aluminum and Carbon Steel
Material, Outer Ply	Ballistic Nylon Reinforced Nitrile
Package Dimensions	40″-70″ X 16″ X 16″
Port, Inflation	3″ M – 1/2″ QD Plug
Port, Pressure Monitoring Port Size	1/4″ QD Cplg
Pressure Pipeline Max Head	7.5 psi (0.52 bar)/17.3′ (5.27 m)
Pressure, Inflation Max	15 psi (1.03 bar)
Sage Subcategory Number	W114
Shipping Wt.	94 Lb (42.60 Kg)
Temperature Max. Service F	200 F (93.33 C)
