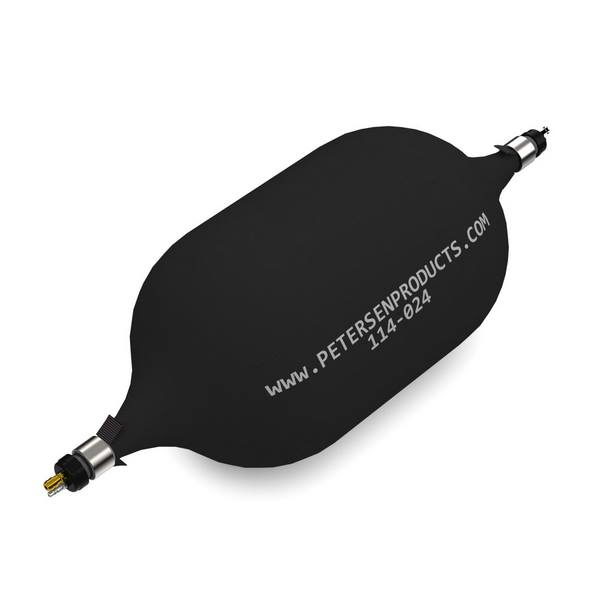

Name: Petersen 114-024- 24" Dia Multi-Flex Medium Duty Inflatable Pipe Plug
SKU: 114-024-_A
Availability: InStock

Petersen 114-024- 24″ Dia Multi-Flex Medium Duty Inflatable Pipe Plug

SKU: 114-024-_A Category: Plumbing Tag: Petersen

Ballistic Nylon Reinforced Nitrile Outer Ply for Hydrocarbon Resistance

Features:

High expansion applications
Hydrocarbon Resistant
Nitrile Reinforced Ballistic Nylon
- Puncture and tear Resistant
- Synthetic materials mean many more years of shelf life than molded Rubber plugs
Small deflated diameter and flexibility navigates small openings
Connect in series for double block and bleed
Conforms to most pipe shapes
Very small storage area

Comment 1	Nitrile Coating Resists Many Hydrocarbons
Country of Origin	USA
Dia. Deflated	6″ (152mm)
Dia. Max	24″ (610mm)
Length Deflated	66″ (1676mm)
Length, Contact	18″ (457mm)
Material, Metal Components	Aluminum and Carbon Steel
Material, Outer Ply	Ballistic Nylon Reinforced Nitrile
Package Dimensions	21-5/8″ X 19-5/8″ X 9-3/8″
Port, Inflation	2″ M – 1/2″ QD Plug
Port, Pressure Monitoring Size	1/4″ QD Cplg
Pressure Pipeline Max Head	5 psi (0.34 bar)/11.5′ (3.52 m)
Pressure, Inflation Max	10 psi (0.69 bar)
Sage Subcategory Number	W114
Shipping Wt.	19 Lb (10.89 Kg)
Temperature Max. Service F	200 F (93.33 C)
