Maretron E2500 Wireless-N Router f/N2KView

Maretron E2500 Wireless-N Router f/N2KView Product Description

The Maretron E2500 is a 2.4GHz / 5GHz Wireless-N router which comes pre-configured from the factory for use with Maretron’s N2KView vessel monitoring and control system. Maretron’s E2500 is the officially supported method for connecting Maretron client and server devices. Use the E2500 to connect PC’s running Maretron’s N2KView software with Maretron’s IPG100 Internet Protocol Gateway.

Using the Maretron E2500 to interconnect the components of your N2KView system will result in easy installation and reliable operation.

Maretron E2500 Attributes

Linksys E2500 Wireless-N Router
The Maretron E2500 is a 2.4GHz /5GHz Wireless-N router which comes pre-configured from the factory for use with Maretron’s N2KView® Vessel Monitoring and Control system. Maretron’s E2500 is the officially supported method for connecting client and server devices in the Maretron N2KView® Vessel Monitoring and Control System. Use the E2500 to connect PC’s running Maretron’s N2KServer® and N2KView® software, Maretron’s MBB100 Black Box for Vessel Monitoring and Control, Maretron’s DSM800 Vessel Monitoring and Control Indoor Display, Maretron’s TSM800 8″ Vessel Monitoring and Control Touchscreen, Maretron’s TSM1330 13.3″ Vessel Monitoring and Control Touchscreen and Maretron’s IPG100 Internet Protocol Gateway.
Using the Maretron E2500 to interconnect the components of your N2KView® system will result in easy installation and reliable operation.
Features:

• Supports both 2.4GHz or 5GHz bands
• Up to 300+300 Mbps wireless speeds
• Four internal antennas
• Supports WPA/WPA2 wireless security
• Four 10/100 Ethernet ports for wired connections

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Linksys E2500 provides a fast connection speed and can connect to your computer, wireless printer, game console and other Wi-Fi devices at a transmission rate of up to 300 + 300 Mbps.

• Supports both 2.4GHz or 5GHz bands
• Up to 300+300 Mbps wireless speeds
• Four internal antennas
• Supports WPA/WPA2 wireless security
• Four 10/100 Ethernet ports for wired connections

Electrical

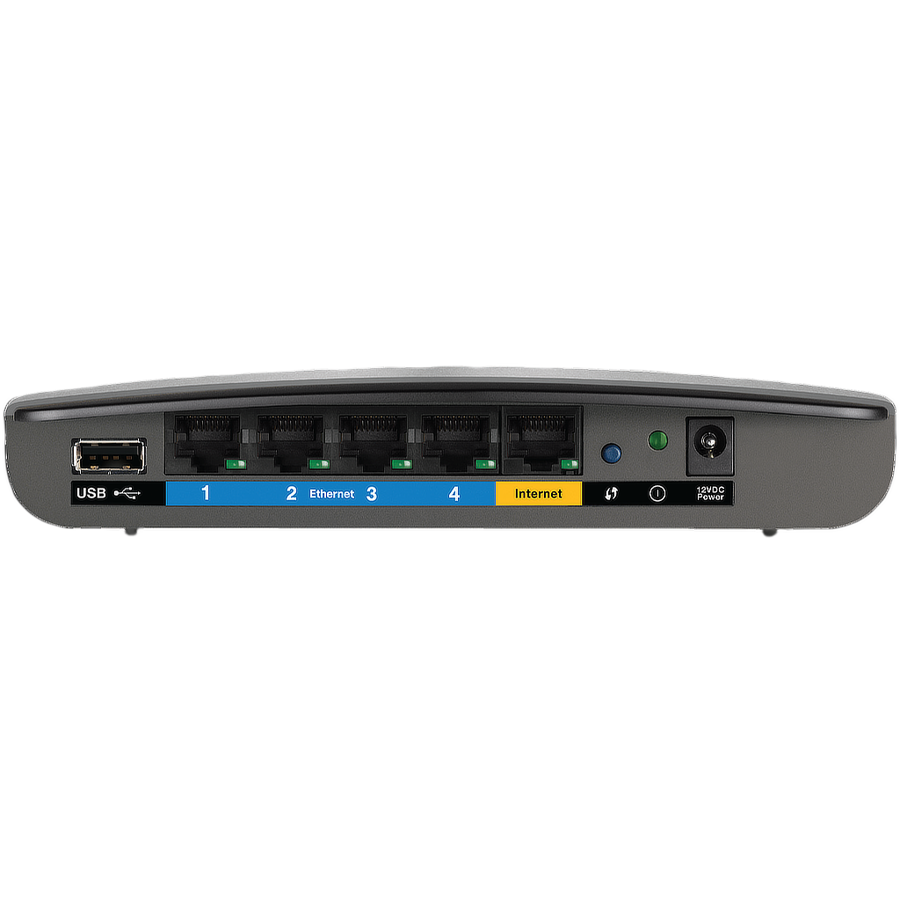

Ports:

• 1x Internet
• 4x Ethernet
• 1x USB
• Power

2.4GHz antennas:

• Antenna 0 (chain 0): 2.5 dBi
• Antenna 1 (chain 1): 4 dBi

5GHz antennas:

• Antenna 0 (chain 0): 4 dBi
• Antenna 1 (chain 1): 5 dBi

Wireless Standards with Link Rate:

•  IEEE 802.11n (up to 300 Mbps for 2.4 GHz/up to 300 Mbps for 5 GHz*)
•  IEEE 802.11g (up to 54 Mbps*)
•  IEEE 802.11a (up to 54 Mbps*)
•  IEEE 802.11b (up to 11 Mbps*)

Antenna type:

• Internal PIFA

Transmitted Power (EIRP power):

• 2.4GHz: 19.92 dBm (measured max. average)
• 5GHz: 22.78 dBm (measured max. average)

Wireless Operating Spectrum:

• Simultaneous Dual-Band
• 2.4 GHz and 5 GHz

Wireless Security:

• Wi-Fi Protected Setup
• WPA/WPA2 encryption
• SPI firewall
• WEP encryption
• VPN Support:
• PPTP pass-through
• IPSec pass-through

Frequently Asked Questions (FAQ) About Maretron E2500 Wireless-N Router f/N2KView

Who is the Maretron?
How to describe Maretron E2500 Wireless-N Router f/N2KView?
What is the exterior color of product?
In which country this product made in?
What’s the Maretron E2500 Wireless-N Router f/N2KView package dimensions and weight?
What is the connector type of the product?
What is the communication method of the product?
What is the manufacturer notes about Maretron E2500 Wireless-N Router f/N2KView?

Who is the Maretron?

Maretron‘s products, from GPS receivers to transducers, are engineered to withstand the harshest marine conditions.Maretron carefully protects all of our electronics, even below-deck equipment, in watertight housings to ensure years of reliable performance. Superior engineering, maximum accuracy, consistent reliability: three reasons why Maretron‘s products are among the best worldwide.
