Kyocera – DNMG4305 PP Grade CCX Cermet Turning Insert

Original price was: $21.84.Current price is: $6.55.

Add to Wishlist
Compare
96192075_A

Features and Benefits

Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Product Specifications
Insert Style DNMG
Insert Size 4305
Material Cermet
Inscribed Circle (Inch) 1/2
Thickness (Inch) 3/16
Corner Radius (Decimal Inch) 0.0079
Manufacturer’s Grade CCX
Coating TiCN/Al2O3/TiN
Chip Breaker PP
Hole Diameter (Decimal Inch) 0.2031
ISO Number DNMG150402PP
Rake Negative
Coating Process CVD
Manufacturers Catalog Number DNMG4305PP CCX
Primary Workpiece Material P
Secondary Workpiece Material K
Included Angle 55
Insert Hand Neutral
Series DNMG
Insert Holding Method Screw or Clamp
Multi Use Application External Turning, Copying, Boring
MultiUseTool Yes
Shape Diamond

Reviews

There are no reviews yet.

Be the first to review “Kyocera – DNMG4305 PP Grade CCX Cermet Turning Insert”

Your email address will not be published. Required fields are marked *

Related products

Boneham – Type H, No. 30 Inside Diam, Head, Press Fit Drill Bushing

Rated 0 out of 5
Original price was: $10.05.Current price is: $3.02.
Boneham – Type H, No. 30 Inside Diam, Head, Press Fit Drill Bushing

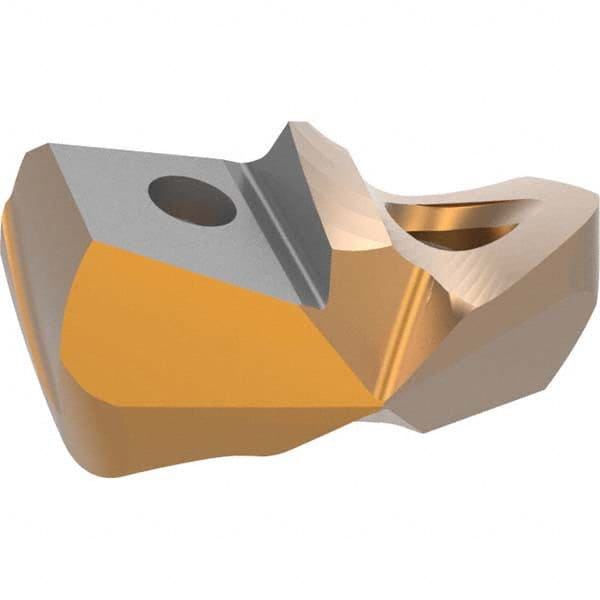

Allied Machine and Engineering – 3-9/32″ Diam 144° Seat Size 6 Spade Drill Insert
