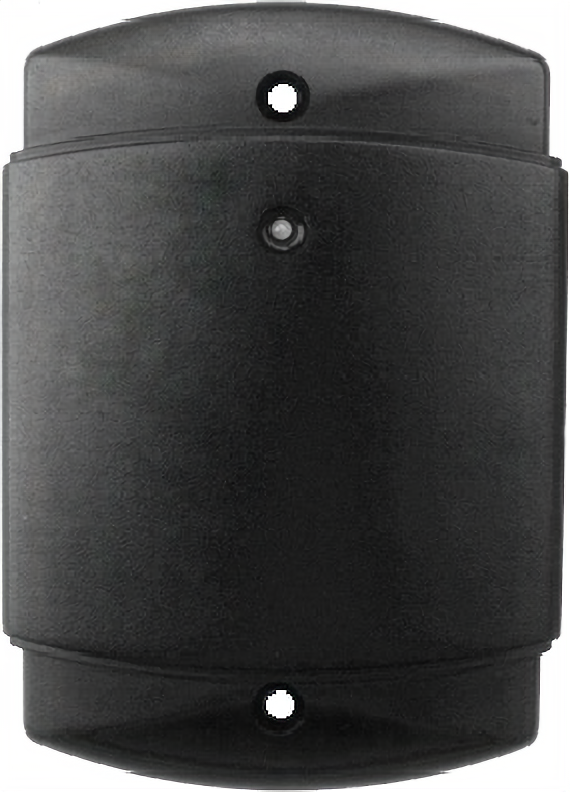

Keri MS-5000BX Card Reader

Keri MS-5000BX Card Reader
Designed to mount on a standard USA single gang box. Read range up to 7in. Measures just 4.3in x 3.0in x 0.38in.

• Size:

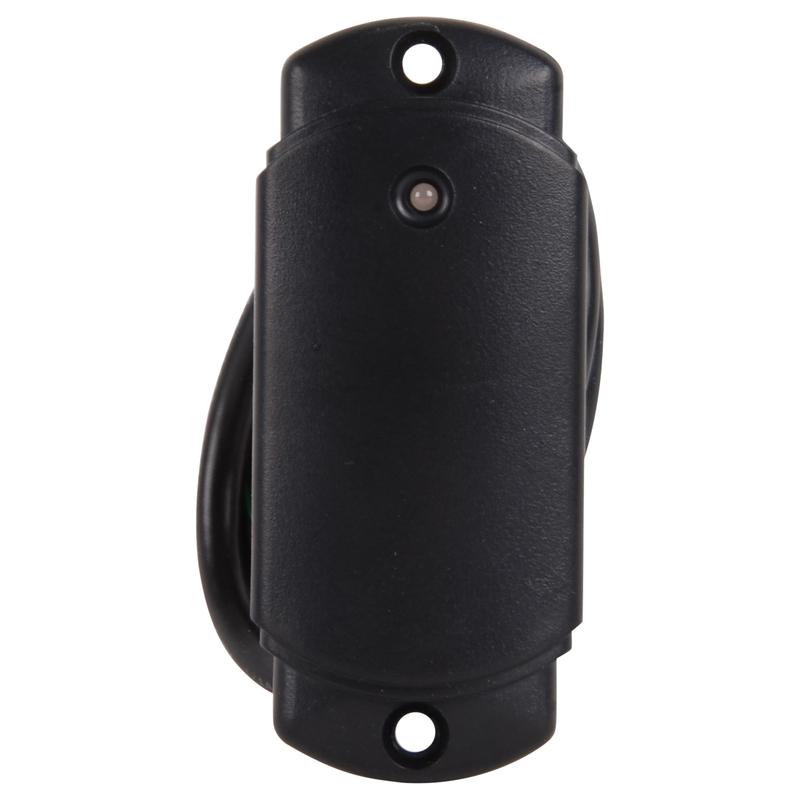

• MS-3000: 3.4″ H x 1.4″ W x 0.38″ T
• MS-5000: 4.3″ H x 3.0″ W x 0.38″ T
• MS-7000: 8.5″ H x 6″ W x 0.83″ T
• Weight:
• MS-3000: 2.1 oz. (59g)
• MS-5000: 3.2 oz. (90g)
• MS-7000: 1.3 lbs. (582g)
• Read Range:
• MS-3000: Up to 4″ (10cm)
• MS-5000: Up to 6″ (15cm)
• MS-7000: Up to 14″ (35cm)
• Input Voltage:
• MS-3000: +12 VDC nom. (5-14 VDC)
• MS-5000: +12 VDC nom. (5-14 VDC)
• MS-7000: +11 VDC to +14 VDC
• Current Draw:
• MS-3000: 50 mA typical
• MS-5000: 100 mA typical
• MS-7000: 200 mA typical
• Operating Temperature: -40° C to +65°C
• LED Indicator: Tri-Color Standard (Red, Green, Amber)
• Audio Tone: Standard
• Frequency: 125 KHz excitation, 62.5 KHz data return

Attributes

Ship via: Can Ship UPS

Alternate Codes: 109684, 155613, MS-5000BX, MS5000BX

Mounting: Flush Mount

Read Range: 6 In.

Reader Keypad Size: 4.3 In. x 3.0 in.

Reader Style: Prox. Reader

Reader Type: 125kHz Proximity

Series: Keri Proximity Readers

Series Names: MS

Subtype: Card Reader

Type: ACCESS CONTROL

Upc: 819345010120

Voltage: 5 – 14V DC
