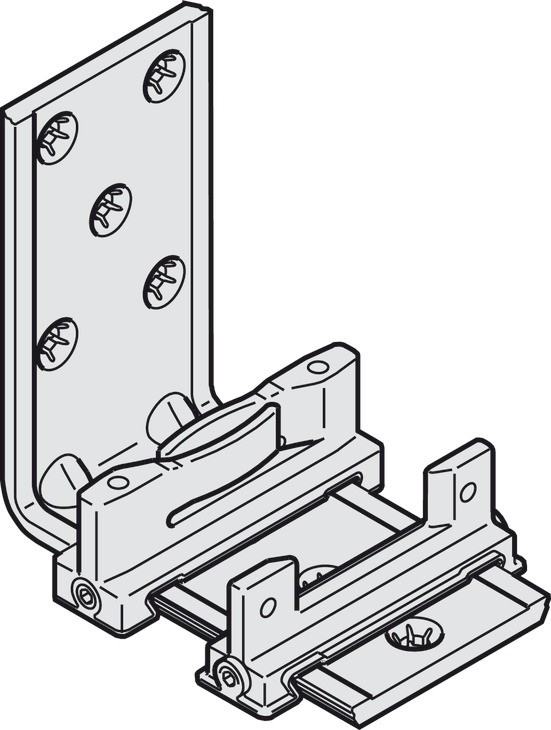

Hafele 940.40.072 Double Element Floor Guide

Hafele 940.40.072 Double Element Floor Guide

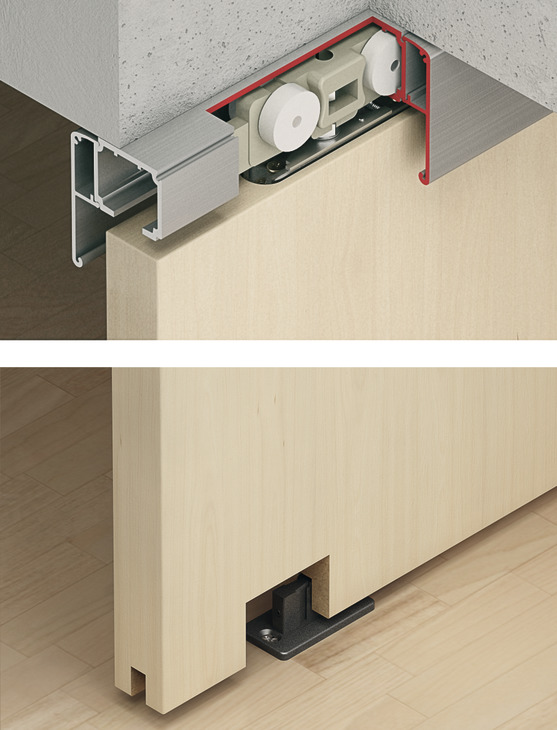

Hafele 940.40.072 Floor Guide, Double Element offers a reliable solution for maintaining smooth and silent operation of sliding doors. Designed for the HAWA Confort 120 system, this floor guide features a robust combination of materials, including a durable plastic guide and an aluminum angle bracket, ensuring longevity and stability. With a load-bearing capacity of 264 lbs (120 kg), it supports heavier doors while allowing for a groove width of 10 mm, accommodating various installation needs. The wall-mounted installation of this guide simplifies setup, making it suitable for both professionals and knowledgeable homeowners. Its rattle-free operation is enhanced by the holding element designed specifically for fixed cover panels, contributing to a clean and polished look.Measuring 74 mm in length, the Hafele 940.40.072 is designed for side-adjustable clear thresholds, providing flexibility during installation. This guide is well-suited for various applications, ensuring that your sliding doors operate smoothly and efficiently while maintaining aesthetic appeal. The combination of plastic, aluminum, and zinc alloy materials guarantees a sturdy and reliable performance, making it a valuable addition to your architectural hardware collection.

Floor Guide, Double Element

HAWA Confort 120, Floor guide: plastic, brown, guide angle bracket: aluminum, retainer: zinc alloy

Rattle-free With holding element for fixed cover panel

Attributes

Ship via: Can Ship UPS

For door weight: ≤120 kg

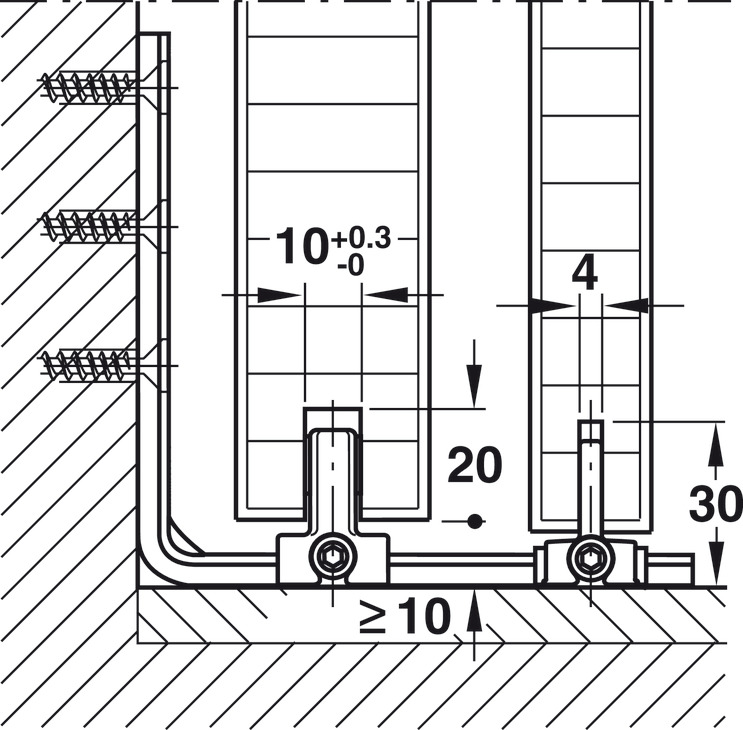

Groove width: 10 mm

Installation: Wall-mounted

Length: 74 mm

Load bearing capacity: 264 lbs.

Material: Bracket: Aluminum Guide: Plastic

Version: side adjustable clear threshold with support for cover 2-piece
