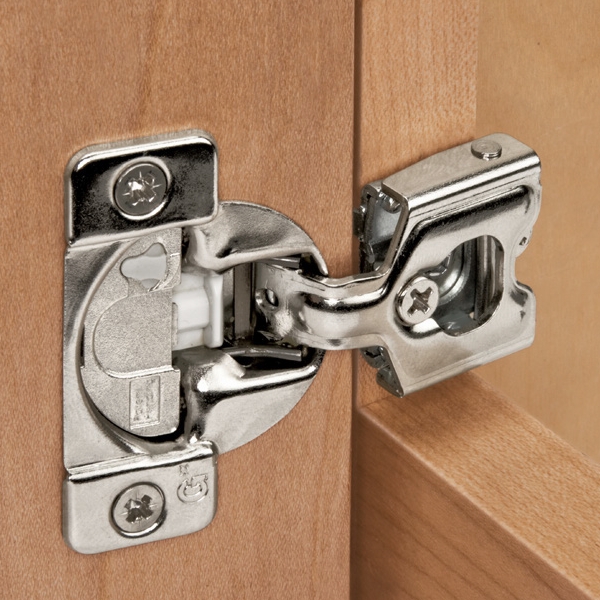

Grass 02875A-15 TEC Hinge, Wrap Mount, 3/4 Overlay, Dowel, 45mm Boring Pattern

Original price was: $3.70.Current price is: $1.48.

Add to Wishlist
Compare
02875A-15_A
  • Soft-close damper pre-mounted in hinge cup
  • Adjustable switch to regulate closing action
  • No protruding parts or additional pieces needed
  • One piece hinge and base plate combination
  • Sleek design with nickel finish and zinc die cast cover over soft-close mechanism
  • 108 degree(s) opening angle
  • 10.7mm (7/16″) cup drilling depth
  • Front locating tabs position hinge on face frame
  • 3 dimensional adjustment
  • Cam side and depth adjustment with height adjustment at

    • mounting screw

  • Works with current insertion machinery
  • Available in 42mm and 45mm boring patterns
  • Made in USA

Product details

Manufacturer : GRASS AMERICA
SKU : 11206552
Manufacturer’s Part : 02875A-15
Weight : 0.115 lbs
Sold in Multiples of : 1
Priced By : Each
Preorder : N
Hinge Type : 1-piece
Degree of Opening : 108
Overlay : 3/4″
Closing Type : Soft-Closing
Hinge Cup Mounting : Dowels: Press-In
Boring Pattern : 45mm
Mounting Style : Wrap
Plate Required : Yes
Plate Included : Yes
Cup Depth : 11mm
Cup Diameter : 35mm
Adjustment Side : +/-1.5mm (1/16″)
Adjustment Height : +/-2mm (3/32″)
Adjustment Depth : +2.5mm (3/32″), -5mm (1/32″)
