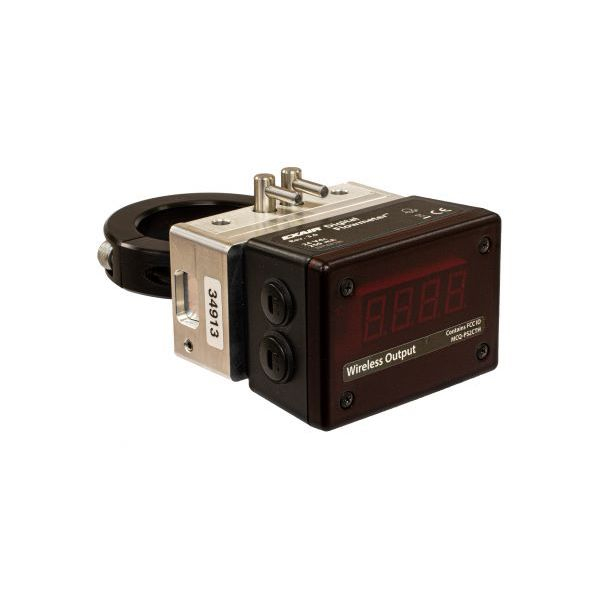

Exair H9095-DAT 4-400 SCFM Digital Flowmeter 2″ with Data Logger with Drill Guide Kit

Original price was: $3.19.Current price is: $1.28.

Add to Wishlist
Compare
H9095-DAT_A

Digital Flowmeter is the easy way to monitor compressed air consumption and waste! The digital display shows the exact amount of compressed air being used, making it easy to identify costly leaks or inefficient air products. No cutting, welding, adjustments or calibration are ever required. It is designed for permanent or temporary mounting to a compressed air pipe. If the unit needs to be removed, blocking rings are available for most models.

Advantages

  • Easy to install
  • Summing Remote Display and Data Logger available
  • No moving parts
  • Sensitive at low flows
  • No calibration or setup required
  • Includes all components for installation

Digital Flowmeter was a winner in the 2013 Environmental Protection Product of the Year Awards. The Digital Flowmeter family won in the Energy Management category.

Specifications – Digital Flowmeter
Accuracy 5% of reading plus 1% of range for flows from 10% to 100% of indicated range at air temperatures between 20° to 120°F.
Operating Pressure 200 PSIG maximum on Sch. 40 iron and on Type L Copper below 3″.
Input Power 250 mA at 24 VDC
Output Resistance 600 Ohms maximum
Wetted Materials Stainless steel, gold, thermal epoxy and Viton
Ring Material Aluminum
Display Four-digit LED display
Response Time One second to 63% of change in value at flows above 30% of range.
Pressure Range N/A
Compliance CE and RoHS
Note: For use with compressed air and nitrogen only.
