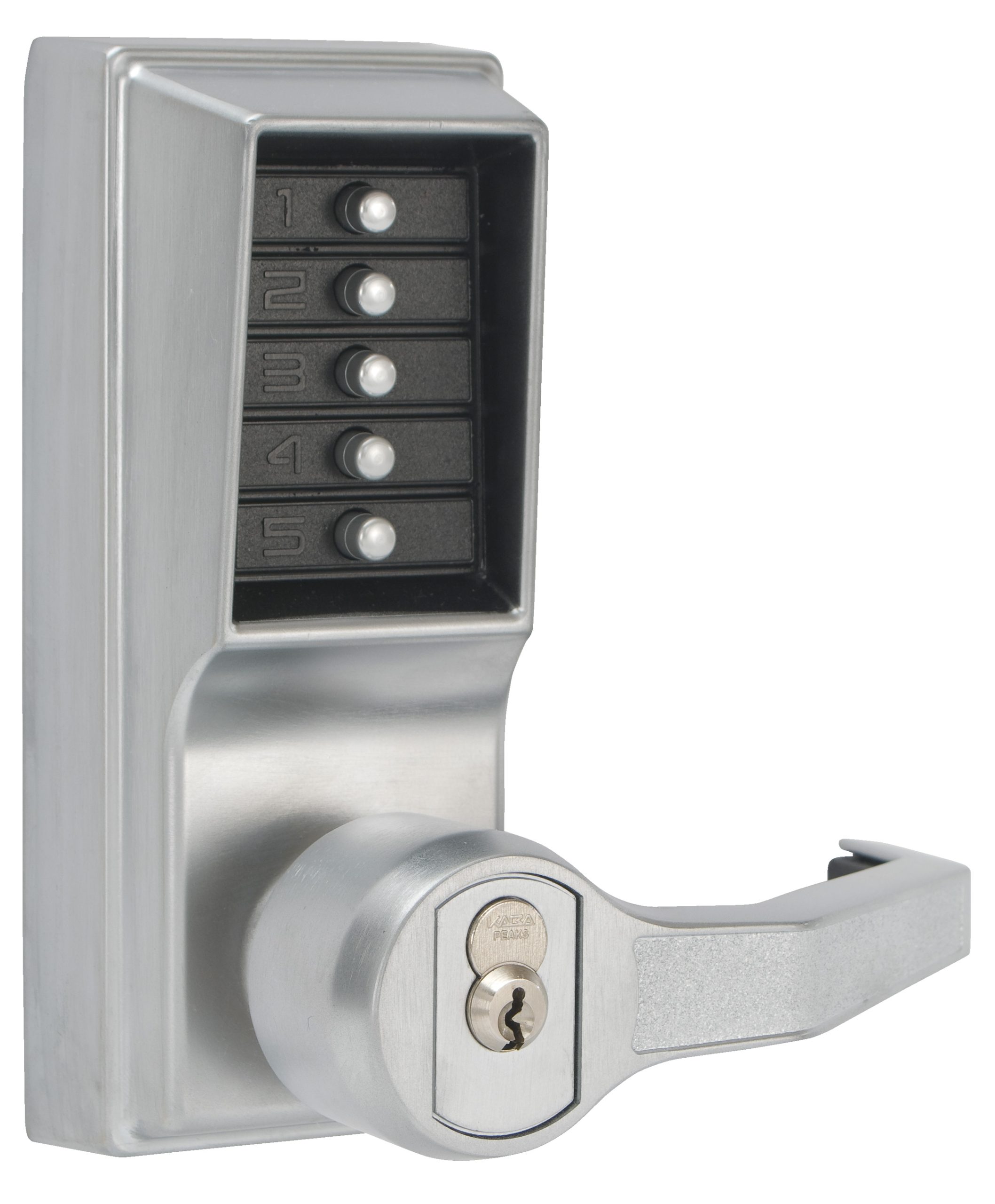

Dormakaba LL1021B26D Left Hand Pushbutton Lever Lock, Key Override, 2-3/4″ Backset, Satin Chrome

Dormakaba LL1021B26D Left Hand Pushbutton Lever Lock, Key Override, 2-3/4″ Backset, Satin Chrome

Simplex Dormakaba LL1021B26D Left Hand Mechanical Pushbutton Lever Lock with Key Override Prep combines security and convenience in a sleek satin chrome finish. This fully mechanical lock eliminates the need for batteries, making it a cost-effective solution for both material and labor expenses. With a single access code that is easy to manage, you can allow multiple users seamless entry without the hassle of keys or cards. Designed for versatility, the LL1021B is easily programmed via its keypad without needing to remove the lock from the door, allowing you to change combinations in seconds. The solid metal pushbuttons are vandal-resistant, ensuring durability in high-traffic areas. Additionally, installation is straightforward on both wood and metal doors, accommodating a door thickness range of 1-3/8″ to 2-1/4″. This lock features a 2-3/4″ backset, a 2-1/4″ bore, and a return lever design for added functionality. With a standard strike plate included, it is well-suited for various applications. The LL1021B also comes with a three-year limited warranty, offering peace of mind for your investment. Elevate your security with the Simplex LL1021B26D, where robustness meets user-friendly design.

Left Hand Mechanical Pushbutton Lever Lock with Key Override Prep and 2-3/4″ Backset Satin Chrome Finish

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

• Fully Mechanical Lock Eliminates the Material and Labor Expense of Battery Replacements
• Single Access Code—One Easy-to-Manage Code for All Users
• Lock is Easily Programmed Via Keypad Without Removing Lock From the Door
• Vandal Resistant, Solid Metal Pushbuttons
• Easily Installs on Wood or Metal Doors. ASA 161 Door Preparation with Additional Through Holes
• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on “A” labeled doors
• Number of Codes: Single access code-one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed; not field reversible
• Key Override (Optional):
• Interchangeable Cores: Small format-Best and equivalents (6 or 7-pin length); core not included
• Removable Cores: Large format-Medeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included
• Operation Modes:
• Pushbutton Access
• Passage (select models)-allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
• Privacy (select models)-disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only when in this mode.
• Economical: A cost effective access control solution

Attributes

Ship via: Can Ship UPS

Access Type: Mechanical

Alternate Codes: 119565, 881862, LL1021B26D

Backset: 2-3/4″ Backset

Category: Mechanical Commercial Locksets

Crossbore Size: 2-1/4″ Bore

Cylinder Type: 6-Pin Cylinder, Best Prep, Less Core, SFIC

Design: Simplex Lever

Dimension: 3-1/8″ x 7-3/8″; 3-13/16″ Projection

Door Range: 1-3/8″ to 2-1/4″

Door Thickness: 1-3/4″ – 2-1/4″

Finish: Satin Chrome

Finish Code: 26D

Finish Color: Satin Chrome

Function: Combination Entry with Key Override

Handing: Left Hand

Hazardous Material: NO

Knob/ Lever Style: Lever

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Lever Knob Design: Return Lever

Lock Category: Cylindrical Lock

Manufacturer Warranty: 3 Year Limited Warranty

Material: Cast Zinc

No Of Inners: 1

Order_ Qty: 1

PO date: 2024-10-03

Proximity Format: Pushbutton Combination

Series: L1000 Series

Strike: Standard Strike Plate; ASA Strike Plate

Strike Dimension: 1-1/4″ x 4-7/8″

Subcategory: Mechanical Pushbutton Locksets

Subtype: Mechanical Pushbutton

Type: ACCESS CONTROL

Upc: 036448802050
