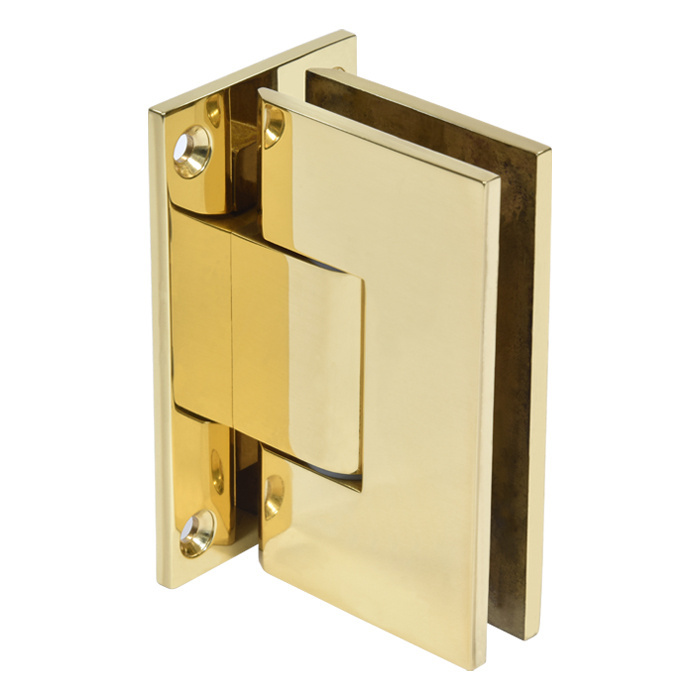

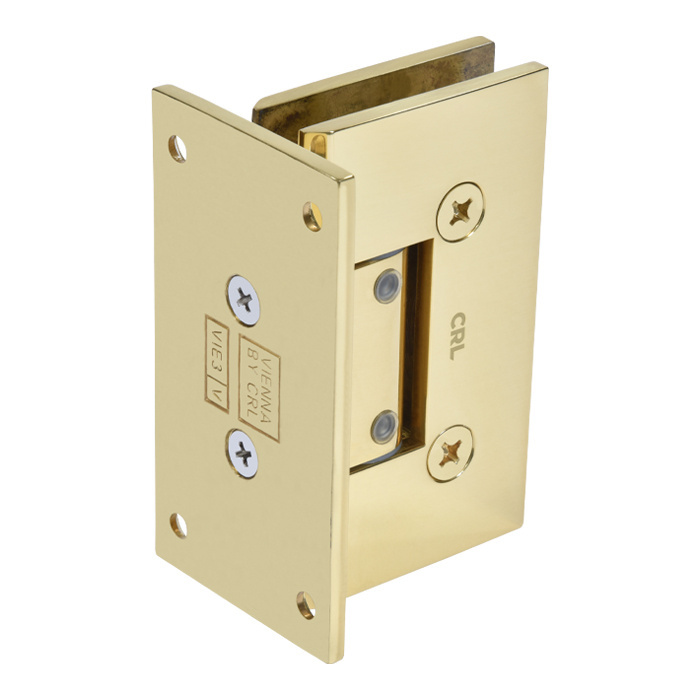

CRL V1E337BR Polished Brass Vienna 337 Adjustable Wall Mount Hinge with Back Plate

CRL V1E337BR Polished Brass Vienna 337 Adjustable Wall Mount Hinge with Back Plate

C.R. Laurence V1E337BR Polished Brass Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge offers an innovative solution for your shower door needs. Designed to accommodate monolithic tempered glass, this hinge can be adjusted to any angle up to 90 degrees without removing the door, ensuring a customizable fit for your space. With its solid brass construction and elegant polished brass finish, this hinge not only provides durability but also enhances the aesthetic of your bathroom. The hinge features a reversible pivot pin, allowing for precise adjustments between 90 and 85 degrees, catering to various installation scenarios. For added versatility, custom pivot pins are available for off-angle installations, making it easier to achieve the perfect closure against the door jamb.With a maximum door weight capacity of 110 lbs when using two hinges or 140 lbs with three, this hinge is suitable for doors up to 36 inches wide. The self-centering design ensures smooth operation, while the included gaskets, screws, and fabrication dimensions simplify installation. Backed by a three-year warranty, the C.R. Laurence Vienna hinge is ideal for residential or hotel shower applications, providing both functionality and style. Custom finishes are available upon request, allowing for further personalization.

Polished Brass Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

The CRL Adjustable Vienna Series has taken our popular Vienna Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degrees) is done after the door is hung. Simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degrees inward and 90 degrees outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degrees inside the shower area, thus having the door close snugly against the jamb.
STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate “off-angle” installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36″ (914 mm).
Using three hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36″ (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8″ (10 mm) to 1/2″ (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.
Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Ship via: Can Ship UPS

5 Degree Pre- Set: No

Adjustable: Yes

Back Plate: Full

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Design Style: Squared

Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions

Finish/ Color:: Polished Brass

Glazing Thickness: 1/2 in. (12 mm)

Height: 3-15/16 in. (100 mm)

Material: Brass

Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Maximum Door Weight – 2 Hinges: 110 lbs. (49.9 kg)

Maximum Door Weight – 3 Hinges: 140 lbs. (63.5 kg)

Maximum Door Width: 36 in. (914 mm)

Mounting Type: Wall Mount

Opening Style: Swing(side)

Positive Close: No

Self- Centering: Yes

Series: Vienna

Shipping Limitations: None

Width: 2-1/4 in. (57 mm)
