CRL TP710 Thick Glass Cut Opening Tapper Instructions

CRL TP710 Thick Glass Cut Opening Tapper Instructions

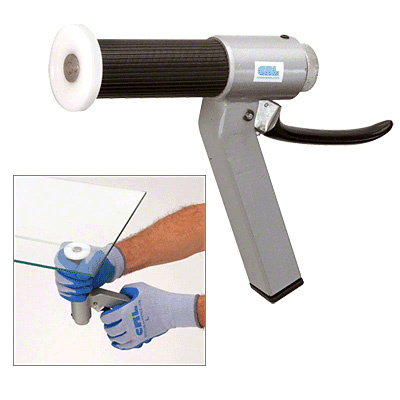

C.R. Laurence TP710 Thick Glass Cut Opening Tapper is a powerful and precise tool designed for glass professionals. This heavy-duty tapper operates on a spring-driven bolt principle, making it ideal for opening scored lines in glass ranging from 3/8″ to 3/4″ (10 to 19 mm) thick. The robust industrial steel body features a chemically applied nickel coating for added durability, ensuring it withstands the rigors of daily use. The TP710 eliminates the need for tapping balls or hammers, which can lead to inaccuracies and damage. Instead, it delivers a controlled tapping force that can be easily adjusted for various glass thicknesses. Simply score the glass with an appropriate glass wheel, place the tool at the bottom centered on the scored line, and pull the trigger. The steel knob strikes the glass, cleanly opening the scored line with each action. Safety is paramount; always wear appropriate protective gear, as falling glass can pose a risk. The TP710 is a reliable, high-quality tool that enhances efficiency and accuracy in glass cutting tasks. With no shipping limitations and the ability to ship via UPS, it is a convenient choice for any glazing professional looking to elevate their craft.

Thick Glass Cut Opening Tapper

• One Shot Starts Your Run
• Powerful and Accurate
• For Glass Up to 3/4″ (19 mm) Thick
• Designed to open scored line by applying an impact and split glass

The CRL Thick Glass Cut Opening Tapper operates on a spring driven bolt principle. This unique glass working tool opens and runs score lines in glass from 3/8″ to 3/4″ (10 to 19 mm) thick. It features an industrial steel body that has a chemically applied nickel coating. This finish helps to preserve and protect it from the day to day abuse a tool of this type can be subjected to. The internal spring mechanism adjusts to regulate the tapping force from very light for thinner glass to a powerful punch for thick plate glass up to 3/4″ (19 mm). No more need for using a tapping ball or small ball pein hammer; both of which can be inaccurate and can break or mar your glass. From the first time you try this heavy-duty tool, you can tell it’s a high quality product.
Application :

• First score the glass by an appropriate glass wheel, depending on glass thickness
• Place the tool at the bottom, and center to the scored line
• Pull the trigger, steel knob will hit the glass under the scored line
• Scored line will open, continue with same action until all through line is opened

Product Warning:
Always wear the proper safety gear including eye, hand, wrist, arm and foot protection when using this tool. The glass strip being separated should be properly supported or be held by a co-worker to avoid injury by falling glass.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Brand: CRL

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Glazing Thickness: Up To 3/4

Shipping Limitations: None

Type: Machine

Wrist Circumference: Up To 3/4 in. (Up To 19 mm)
