CRL SRCAR05LCH Chrome Cardiff Senior Wall Mount Offset Hinge Back Plate

CRL SRCAR05LCH Chrome Cardiff Senior Wall Mount Offset Hinge Back Plate

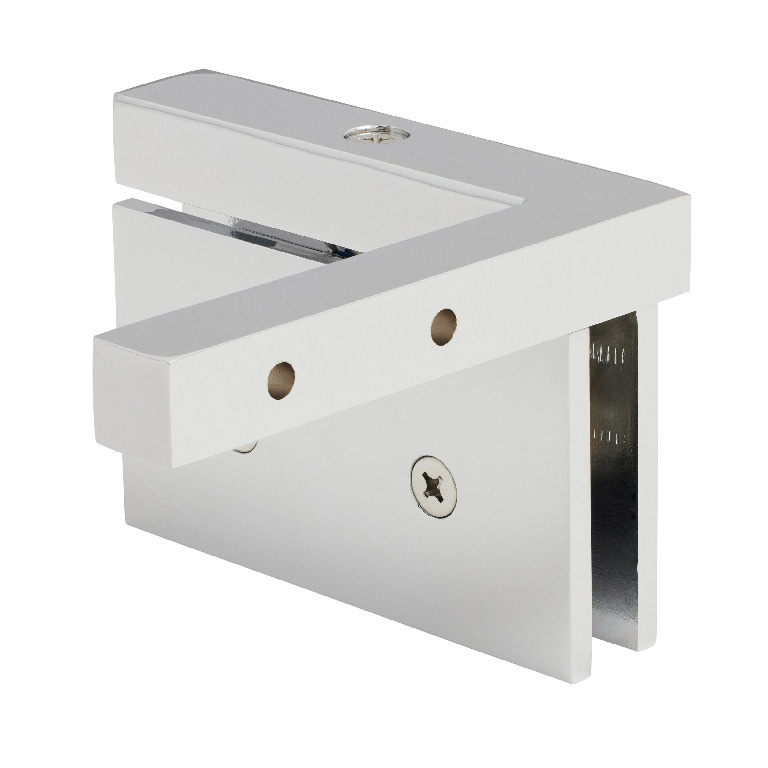

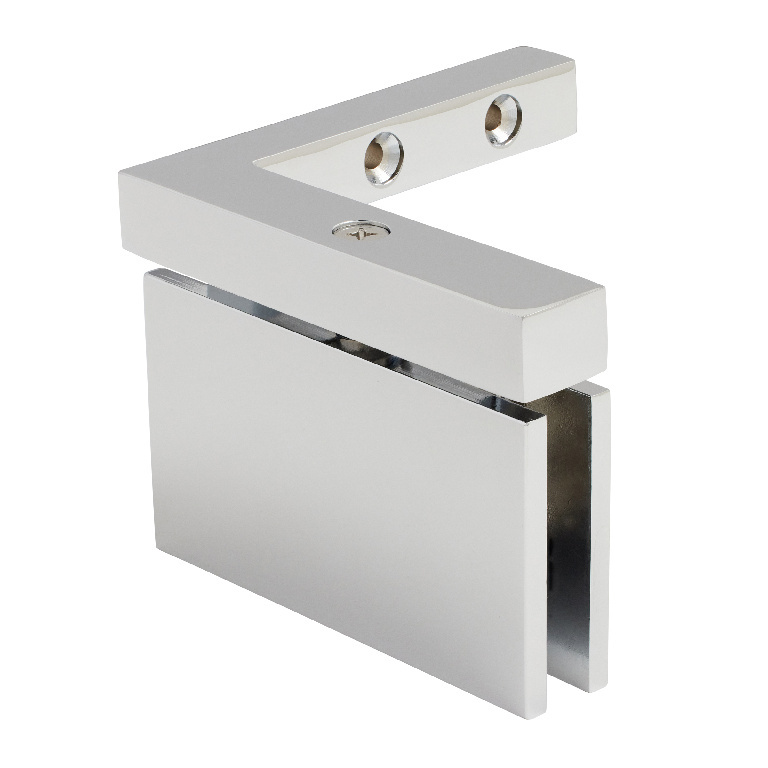

C.R. Laurence SRCAR05LCH Chrome Cardiff Senior Wall Mount Offset Back Plate Hinge offers a robust and stylish solution for glass door installations. Designed specifically for 1/2″ (12 mm) glass, this left-hand mount hinge provides an offset bracket that allows for greater clearance, accommodating towel bars and other projections without compromising functionality.Constructed from durable brass and finished in polished chrome, this hinge not only enhances the aesthetic appeal of any shower or glass enclosure but also ensures longevity and reliability. It features a self-centering mechanism, enhanced by an optional 5-degree pivot pin set, which allows for smooth operation and secure closure. The hinge is engineered to support doors weighing up to 145 lbs (65.8 kg) and is suitable for doors with a maximum width of 36 in. (914 mm).Additionally, the SRCAR05LCH hinge is equipped with four springs for optimal retention strength and can be used in movable transom installations when placed vertically. With its combination of strength, style, and functionality, this hinge is an excellent choice for both building professionals and discerning homeowners looking to enhance their interior spaces.

Chrome Cardiff Senior Wall Mount Offset Back Plate Hinge

• Offset Bracket Wall Mount (Left Hand Mount When Viewed From Outside of Shower)
• For use with 1/2″ (12 mm) glass
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Finishes

Advantages of CRL Senior Cardiff Hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. When placed vertically, either style can be used in movable transom installations. These Pivot Hinges are self-centering, with four springs for maximum retention strength.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Polished Chrome

Glazing Thickness: 1/2 in. (12 mm)

Handing: Left Hand

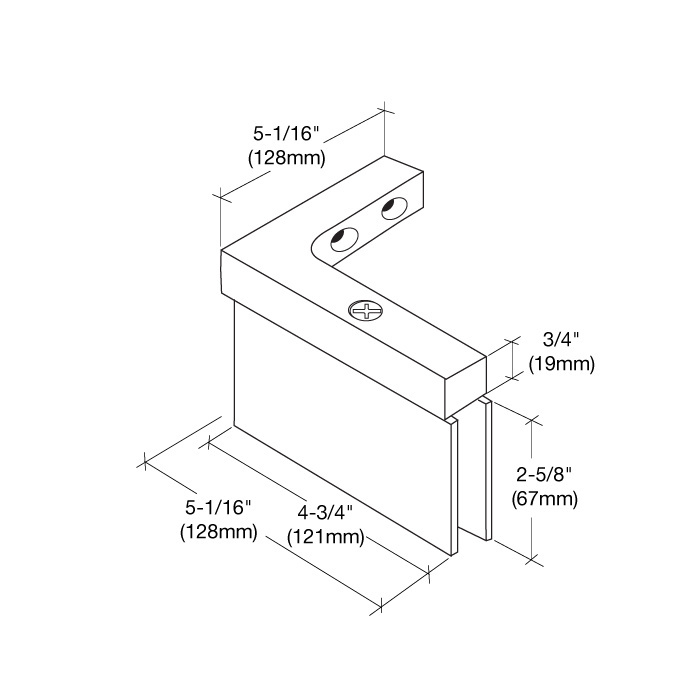

Height: 2-5/8 in. (67 mm)

Material: Brass

Maximum Door Weight: 145 lbs. (65.8 kg)

Maximum Door Width: 36 in. (914 mm)

Mounting Type: Wall Mount

Self- Centering: Yes

Series: Senior Cardiff

Shipping Limitations: None

Width: 4-3/4 in. (121 mm)
