CRL SGF32CS Brushed Stainless Flush Mount Cap Assembly Instructions

CRL SGF32CS Brushed Stainless Flush Mount Cap Assembly Instructions

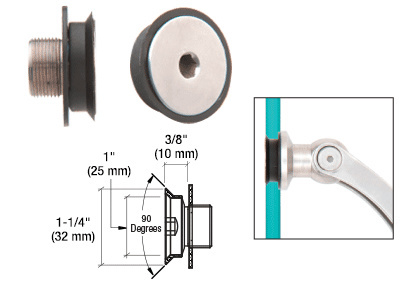

C.R. Laurence SGF32CS Brushed Stainless Flush Mount Cap Assembly offers a sleek and modern solution for your glass installation needs. Designed to accommodate 3/8″ to 1/2″ (10 to 12 mm) thick monolithic tempered glass, this cap assembly is compatible with both Column and Arch style swivel fittings, allowing for versatile applications in various architectural settings.Constructed from durable brushed stainless steel, the SGF32CS not only provides a visually appealing finish but also ensures longevity and resistance to corrosion, provided it receives periodic maintenance. Each assembly includes all necessary gaskets for a secure installation, while the fittings can be tightened using a 6 mm Allen wrench (not supplied).This product is particularly useful when a flush surface is required, such as in countertops or shelves, enhancing the overall aesthetic of your space. For installations where a flush surface is not essential, C.R. Laurence offers alternative surface-style attachment caps, which can reduce glass fabrication costs by eliminating the need for countersinking. With a diameter of 1-1/4 in. (31.8 mm) and a mounting hole diameter of 1 in. with a 1-1/4 in. countersink, the SGF32CS is an ideal choice for professionals seeking reliable and stylish glass hardware solutions.

Brushed Stainless Flush Mount Cap Assembly

• Choose Surface or Flush Mount Glass Fasteners (Sold Separately)
• Fits Both Column and Arch Style Swivel Fittings
• For 3/8″ to 1/2″ (10 to 12 mm) Thick Glass
• Glass Fabrication Required to Install
• Brushed Stainless Finish
• Use Monolithic Tempered Glass

CRL Flush Mount Glass Cap Assembly work with eight different Column or Arch Swivel Fittings. Each Cap is supplied with all necessary gaskets. Fittings are tightened with a 6 mm Allen wrench (not supplied). CRL realized that, depending on the use of the Swivel Fitting, different glass attachments might be needed. Many times glass in the horizontal position is used as a counter top or shelf where a flush surface is desired. For this application use our Flush Style Attachment Caps. Other times flush surfaces are not needed, and a Surface Style Attachment Cap will suffice. Glass fabrication costs are reduced with the Surface Style Glass Attachment Cap because no countersinking is required.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Diameter: 1-1/4 in. (31.8 mm)

Finish/ Color:: Brushed Stainless Steel

Material: Stainless Steel

Mounting Hole Diameter: 1 in. With 1-1/4 in. Countersink (25.4 mm With 31.75 mm Contersink)

Shipping Limitations: None
