CRL RB50FBS Brushed Stainless Double Arm Fixed Fitting Set for 1/2″ Glass

CRL RB50FBS Brushed Stainless Double Arm Fixed Fitting Set for 1/2″ Glass

C.R. Laurence RB50FBS Brushed Stainless Double Arm Fixed Fitting Set for 1/2″ Glass is the perfect solution for mounting 1/2″ (12 mm) laminated tempered glass to various structures such as canopies, awnings, and railings. Its versatile design accommodates both straight and segmented applications, making it an ideal choice for a range of architectural projects. Constructed from durable stainless steel, this fitting ensures longevity and stability while providing a sleek, brushed finish that enhances any design. This fitting set includes all necessary hardware for secure mounting to a post, column, or wall, ensuring a straightforward installation process. Featuring a compact design, the RB50FBS minimizes obstruction, allowing for an unobtrusive aesthetic that emphasizes the beauty of the glass. It requires only one 3/4″ (19 mm) diameter hole per fitting for glass fabrication, simplifying the preparation process. With a load capacity classified as regular, this product is designed for reliable performance in various applications. It is essential to maintain periodic care to preserve its factory finish, as stainless steel, while resistant to corrosion, is not entirely rust-proof. Enhance your architectural designs with the reliability and elegance of the C.R. Laurence RB50FBS Double Arm Fixed Fitting Set.

Brushed Stainless Double Arm Fixed Fitting Set for 1/2″ Glass

• Designed for Canopies, Awnings, Railings, and Other Applications Using 1/2″ (12 mm) Laminated Tempered Glass
• Complete with Hardware to Mount to Post, Column or Wall
• Compact Design for Minimal Obstruction
• Stainless Steel Construction for Durability
• Accommodates Straight or Segmented Applications

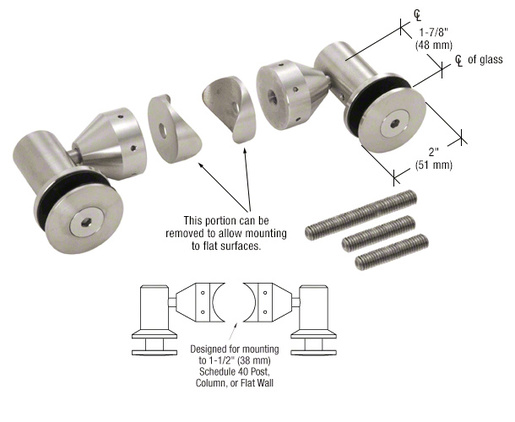

This ingenious CRL Double Arm Glass Fitting can be used to mount 1/2″ (12 mm) tempered glass to posts, walls, glass fins, and canopy brackets. The compact attachment portion offers minimal obstruction to the glass, and you can choose from either a fixed or swiveling mount. Glass fabrication is limited to only one 3/4″ (19 mm) hole per mount.
Two stainless finishes are available, brushed and polished. Comes with two 3/8″-16 x 13/16″ (20.6 mm) and one 3/8″-16 x 1-1/4″ (32 mm) stainless steel threaded studs.
SPECIFICATIONS:
For Use with 1/2″ (12 mm) Tempered Glass (Do not use with raw or annealed glass)
Glass Fabrication:
One 3/4″ (19 mm) Diameter Hole Per Fitting

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 3/4 in. (19 mm)

Glazing Type: Tempered Monolithic

Load Capacity: Regular

Material: Stainless Steel (Alloy 316)

Shipping Limitations: None
