CRL PPH05RBBRZ Brushed Bronze Prima 05 Right Hand Offset Mount Hinge

CRL PPH05RBBRZ Brushed Bronze Prima 05 Right Hand Offset Mount Hinge

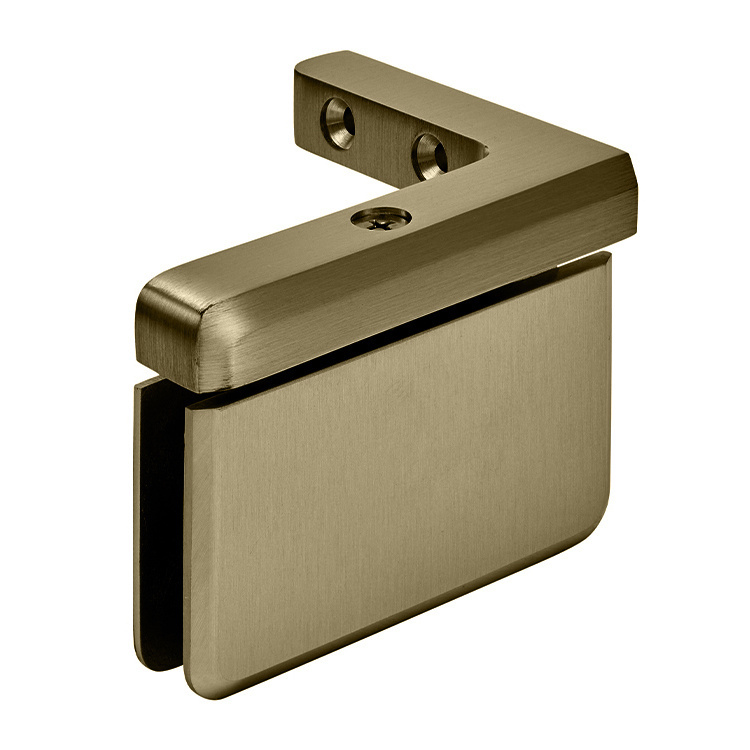

C.R. Laurence PPH05RBBRZ Brushed Bronze Prima 05 Series Right Hand Offset Mount Hinge is an exceptional choice for modern shower enclosures. Designed specifically for 5/16″ to 3/8″ (8 mm to 10 mm) tempered safety glass, this hinge boasts a right-hand offset bracket wall mount that allows for seamless installation and stylish functionality. With a self-centering mechanism, the hinge ensures smooth operation while maintaining a clean aesthetic. Constructed from solid brass with a stunning brushed bronze finish, this model not only enhances the visual appeal of your space but is also built for durability, supporting doors weighing up to 100 lbs. (45 kg) and a maximum width of 31 inches (787 mm). The hinge features full rotation and a closing type that self-centers within 15 degrees of the closed position, ensuring the door returns effortlessly to its initial position. The Prima Series includes optional 5-degree pivot pin sets for those looking to adjust the door’s closing position, allowing for flexibility in design. Backed by a 3-year warranty, the PPH05RBBRZ hinge represents a perfect blend of style and functionality, making it an excellent addition to any residential or hotel shower application. Custom finishes are available upon request, making it adaptable to various design preferences.

Brushed Bronze Prima 05 Series Right Hand Offset Mount Hinge

• Offset Bracket Wall Mount (Right Hand Mount When Viewed From Outside of Shower)
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are designed for use with 5/16″ to 3/8″ (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.
Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.
Using two hinges with 5/16″ to 3/8″ glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31″ (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16″ (8 mm) to 3/8″ (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the CRL Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Design Style: Beveled

Edge Profile: Beveled

Enclosure Type: Corner, Niche, Tailor Made Solutions

Finish/ Color:: Brushed Bronze

Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)

Handing: Right Hand

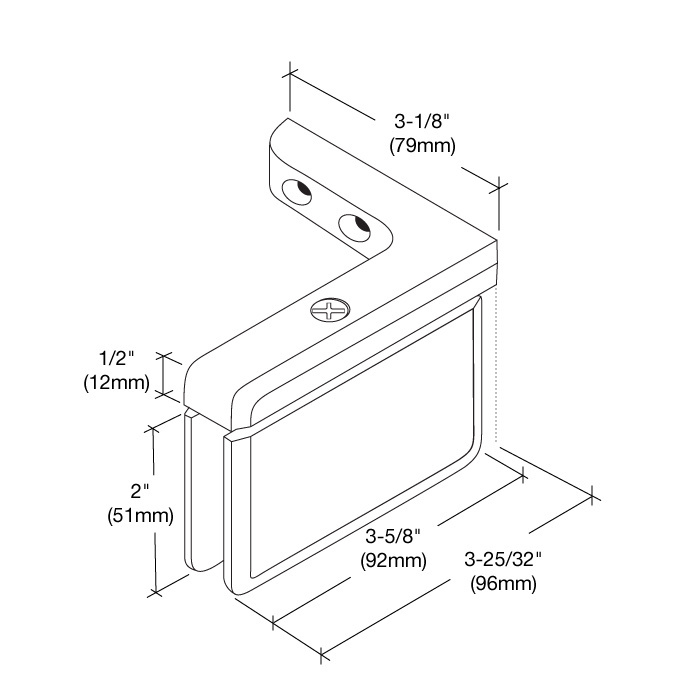

Height: 2 in. (51 mm)

Material: Brass

Maximum Door Weight: 100 lbs. (45.4 kg)

Maximum Door Width: 31 in. (787 mm)

Mounting Type: Wall Mount

Opening Style: Pivot(floor)

Self- Centering: Yes

Series: Prima

Shipping Limitations: None

Width: 3-5/8 in. (92 mm)
