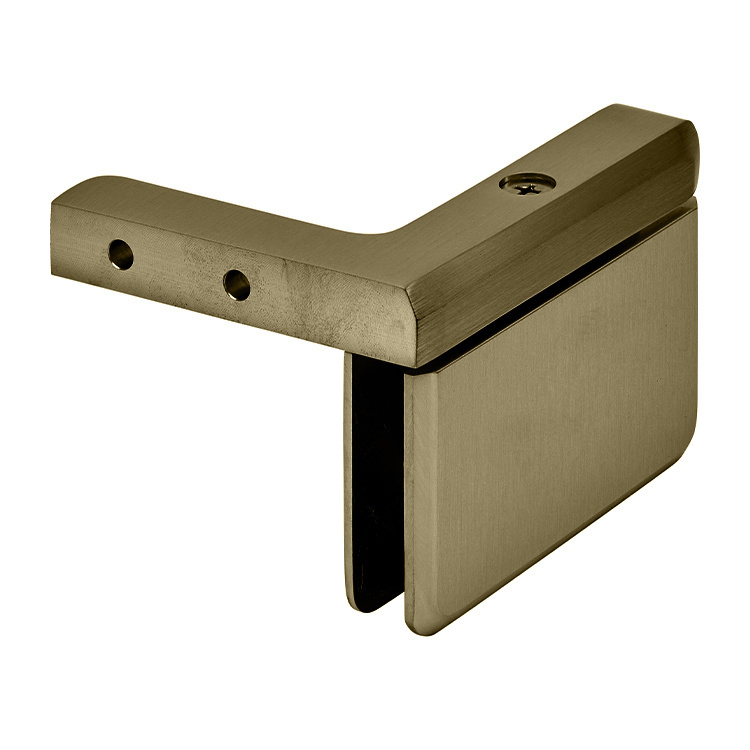

CRL PPH05LBBRZ Brushed Bronze Prima 05 Left Hand Offset Mount Hinge

CRL PPH05LBBRZ Brushed Bronze Prima 05 Left Hand Offset Mount Hinge

C.R. Laurence PPH05LBBRZ Brushed Bronze Prima 05 Series Left Hand Offset Mount Hinge offers a sophisticated solution for shower enclosures with its elegant design and robust functionality. This left-hand mount hinge is specifically engineered for use with 5/16″ to 3/8″ (8 to 10 mm) tempered safety glass, accommodating a maximum door weight of 100 lbs. (45.4 kg) and a width of up to 31″ (787 mm).The hinge features an offset bracket wall mount, allowing for seamless installation that maximizes glass visibility while minimizing necessary cut-outs compared to traditional side mount hinges. Its self-centering mechanism ensures that the door returns smoothly to the closed position when within 15 degrees, enhancing user convenience and safety.Constructed from solid brass and available in a stunning brushed bronze finish, the PPH05LBBRZ is not only durable but also aesthetically pleasing, fitting beautifully into any bathroom decor. Optional 5-degree pivot pin sets can be purchased separately to customize the closing position of the door. With a three-year warranty and patented design (Patent No. 5,297,313), this hinge embodies quality and reliability, making it an essential choice for both residential and hotel shower applications.

Brushed Bronze Prima 05 Series Left Hand Offset Mount Hinge

• Offset Bracket Wall Mount (Left Hand Mount When Viewed From Outside of Shower)
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass
• 3 Year Warranty
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are designed for use with 5/16″ to 3/8″ (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.
Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.
Using two hinges with 5/16″ to 3/8″ glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31″ (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16″ (8 mm) to 3/8″ (10 mm) Tempered Safety Glass

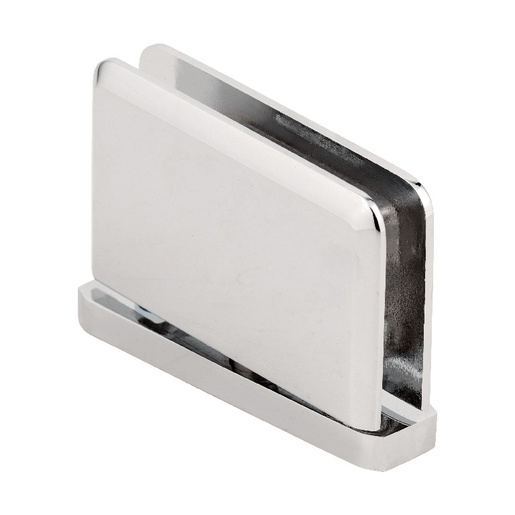

Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Custom finishes are available on request. Contact the CRL Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Design Style: Beveled

Edge Profile: Beveled

Enclosure Type: Corner, Niche, Tailor Made Solutions

Finish/ Color:: Brushed Bronze

Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)

Handing: Left Hand

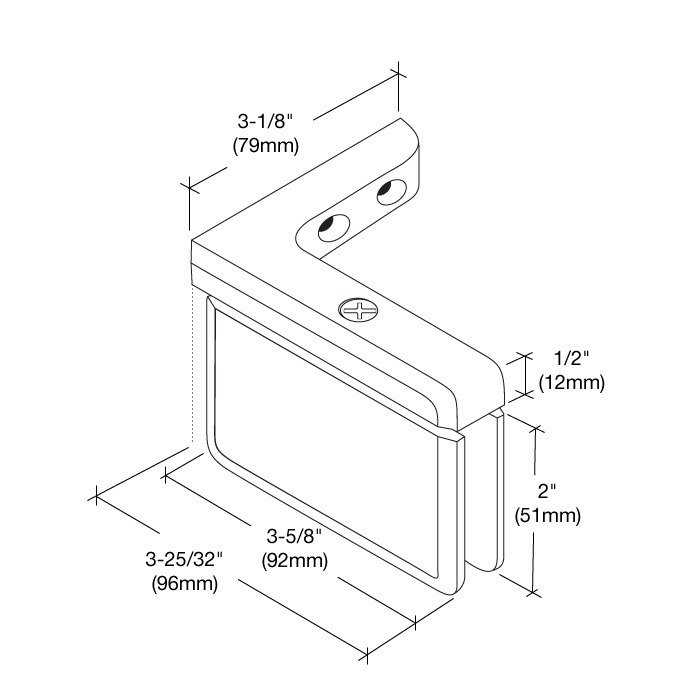

Height: 2 in. (51 mm)

Material: Brass

Maximum Door Weight: 100 lbs. (45.4 kg)

Maximum Door Width: 31 in. (787 mm)

Mounting Type: Wall Mount

Opening Style: Pivot(floor)

Self- Centering: Yes

Series: Prima

Shipping Limitations: None

Width: 3-5/8 in. (92 mm)
