CRL P68FCH Chrome Low Profile Cap Angle Connector

CRL P68FCH Chrome Low Profile Cap Angle Connector

C.R. Laurence P68FCH Chrome Low Profile Cap Angle Panel Connector is the perfect solution for connecting free-standing screens or decorative panels with style and ease. This versatile connector accommodates panel thicknesses ranging from 3/16″ to 3/4″ (4.7 to 19 mm) and offers fully adjustable angles up to 300º, making it ideal for a variety of applications such as dressing screens or fireplace screens. Crafted from durable stainless steel and finished in polished chrome, the P68FCH not only ensures long-lasting performance but also adds a sleek aesthetic to your installations. Available with both standard and low-profile cap designs, it allows for flexibility based on your project’s needs. Installation is straightforward, requiring a drilled hole, and it comes supplied with two each of 1/4″-20 x 3/4″ and 1/4″-20 x 1-1/4″ Allen screws to accommodate various panel thicknesses. For panels less than 3/8″ (10 mm), the Allen screws may need to be cut. The standard caps can be easily tightened with the Cat. No. S0W Standoff Wrench, while the low-profile caps can be secured using a neoprene or rubber pad for a comfortable grip. Enhance your design with the reliability and elegance of C.R. Laurence’s Angle Panel Connectors.

Chrome Low Profile Cap Angle Panel Connector

• Ideal for Connecting Free Standing Screens or Panels
• Available with Standard or Low Profile Caps

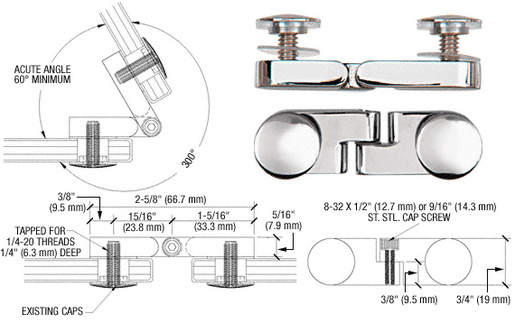

CRL Angle Panel Connectors are designed to connect free standing dressing screens, fireplace screens or decorative panels. CRL’s Angle Panel Connectors will work with panel thicknesses from 3/16″ to 3/4″ (4.7 to 19 mm) and are fully adjustable in angles up to 300º. Available in several popular finishes and either standard or low profile cap designs. The Angle Panel Connectors require a drilled hole for installation. Supplied with two each 1/4″-20 x 3/4″ and two each 1/4″-20 x 1-1/4″ Allen Screws to accommodate varying panel thicknesses. Panel thicknesses less than 3/8″ (10 mm) will require cutting the Allen Screw. The Standard Caps can easily be tightened using Cat. No. S0W Standoff Wrench. The Low Profile Caps are tightened by placing a low profile neoprene or rubber pad in the palm of your hand, applying pressure, and then turning.
Supplied with two each 1/4″-20 x 3/4″ and two each 1/4″-20 x 1-1/4″ Allen Screws to accommodate varying panel thicknesses. NOTE: Panel thicknesses less than 3/8″ (10 mm) will require cutting the Allen Screw. The Standard Caps can easily be tightened using Cat. No. S0W Standoff Wrench. The Low Profile Caps are tightened by placing a flat neoprene or rubber pad in the palm of your hand, applying pressure, and then turning.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Diameter: 3/4 in. (19.1 mm)

Finish/ Color:: Polished Chrome

Material: Stainless Steel

Shipping Limitations: None
