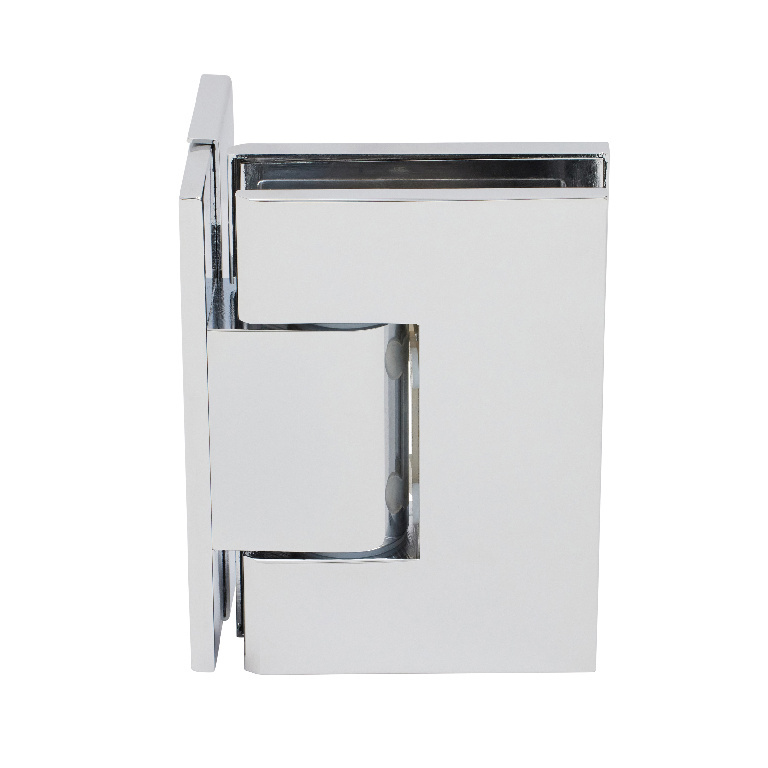

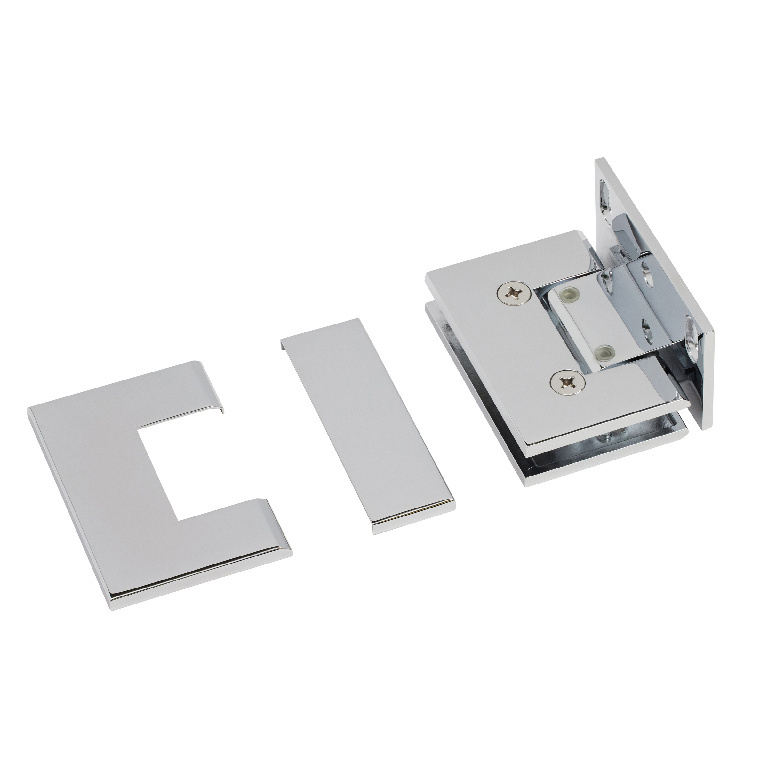

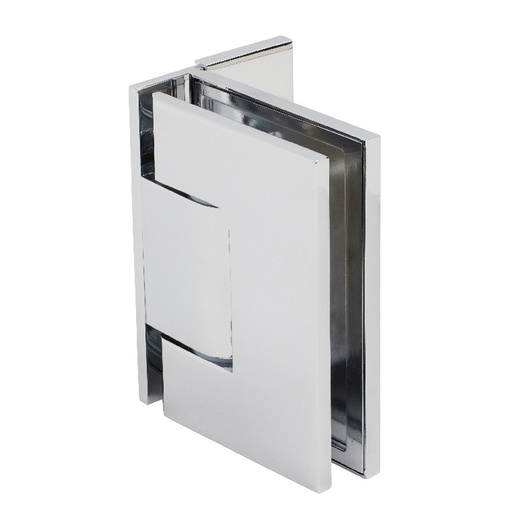

CRL MEL324CH Chrome Melbourne Adjustable Wall Mount Offset Back Plate with Cover Hinge

CRL MEL324CH Chrome Melbourne Adjustable Wall Mount Offset Back Plate with Cover Hinge

C.R. Laurence MEL324CH Chrome Melbourne Adjustable Wall Mount Offset Back Plate with Cover Plate Hinge offers a versatile solution for your glass door installations. This hinge allows for an adjustable swing of up to 60 degrees, providing flexibility to accommodate various design preferences. Constructed from solid brass, the durable design ensures longevity and a polished chrome finish that adds a modern touch to any space. Designed for use with 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) thick tempered glass, this hinge is engineered to support significant weight. When utilizing two hinges, it can hold up to 100 lbs. (45 kg) for doors up to 30″ (762 mm) wide, while three hinges increase the capacity to 120 lbs. (54 kg) for widths up to 34″ (864 mm).The hinge features a simple rectangular cut-out for easy glass fabrication and comes complete with gaskets, screws, and fabrication dimensions. Additionally, it boasts self-centering capabilities when within 15 degrees of the closed position, ensuring a seamless operation. Please note that these hinges are intended for residential and hotel shower use. For other applications, approval is necessary from the CRL Shower Door Technical Sales Department.

Chrome Melbourne Adjustable Wall Mount Offset Back Plate with Cover Plate Hinge

• Adjustable Up to 60 Degrees
• Simple Rectangular Cut-Out for Ease of Glass Fabrication
• For Use with 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) Thick Tempered Glass

CRL Melbourne Series Adjustable Hinges allow adjustment to accommodate the desired angle (up to 60 degrees). This hinge features has large hinge plates that provide more clamping force. For ease of glass fabrication, a simple rectangular cut-out is required. Constructed of forged solid brass, the Melbourne Series is for use with 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) thick tempered glass.
Using two hinges with 1/2″, 3/8″, and 5/16″ glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30″ (762 mm).
Using three hinges with 1/2″, 3/8″, and 5/16″ glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34″ (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees In and 90 Degrees Out (at Factory Set Position)
Closing Type: Self-Centering When Within 15 Degrees of Closed Position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL Hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

5 Degree Pre- Set: No

Adjustable: Yes

Back Plate: Offset

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Polished Chrome

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Material: Brass

Maximum Door Weight – 2 Hinges: 100 lbs. (45.4 kg)

Maximum Door Weight – 3 Hinges: 120 lbs. (54.4 kg)

Maximum Door Width – 2 Hinges: 30

Maximum Door Width – 3 Hinges: 34 in. (863.6 mm)

Mounting Type: Wall Mount

Self- Centering: Yes

Series: Melbourne

Shipping Limitations: None
