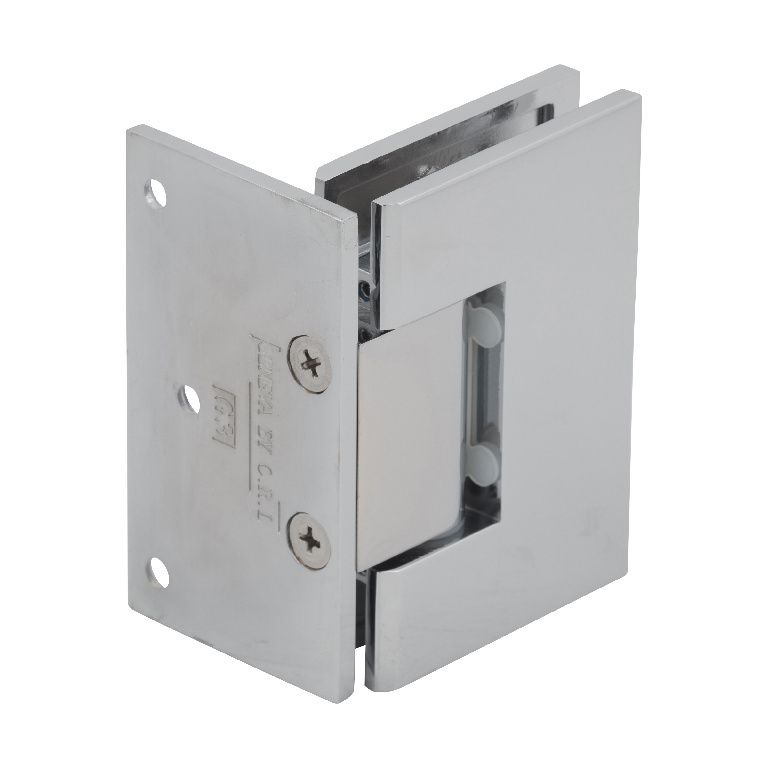

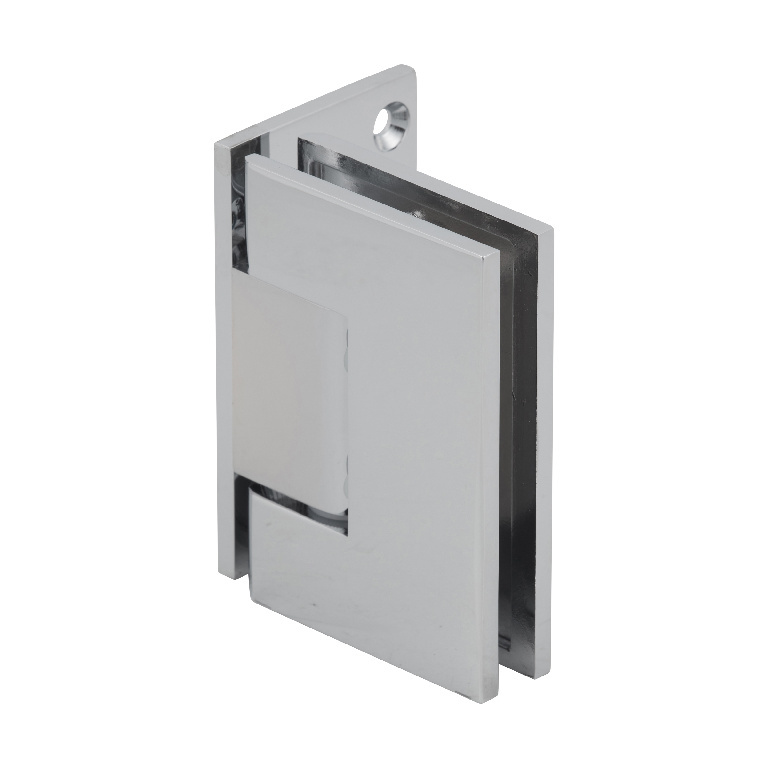

CRL MEL044CH Polished Chrome Melbourne Wall Mount Offset Hinge Back Plate

CRL MEL044CH Polished Chrome Melbourne Wall Mount Offset Hinge Back Plate

C.R. Laurence MEL044CH Polished Chrome Melbourne Wall Mount Offset Back Plate Hinge combines elegance with robust functionality. Designed for use with 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) thick tempered glass, this hinge is crafted from solid brass, ensuring durability and strength. The large hinge plates enhance clamping force, providing added stability for your glass installations. With a maximum door weight capacity of 100 lbs. (45 kg) when using two hinges and 120 lbs. (54 kg) with three, this hinge accommodates doors up to 30″ (762 mm) wide with two hinges and 34″ (864 mm) wide with three. The self-centering feature allows for smooth operation, swinging 90 degrees in and out, making it ideal for high-traffic areas. Ease of installation is prioritized with a simple rectangular cut-out for glass fabrication, and the hinge includes gaskets, screws, and precise glass fabrication dimensions. Available in polished chrome and other popular finishes, this product offers versatility for various design aesthetics. For those seeking custom finishes, C.R. Laurence provides options to meet specific project requirements. Elevate your glass door solutions with the Melbourne series hinge, a perfect blend of style and strength.

Polished Chrome Melbourne Wall Mount Offset Back Plate Hinge

• Large Hinge Plates Provide More Clamping Force
• Simple Rectangular Cut-Out for Ease of Glass Fabrication
• For Use with 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) Thick Tempered Glass
• Stocked in Three Popular Finishes, with Custom Finishes Available

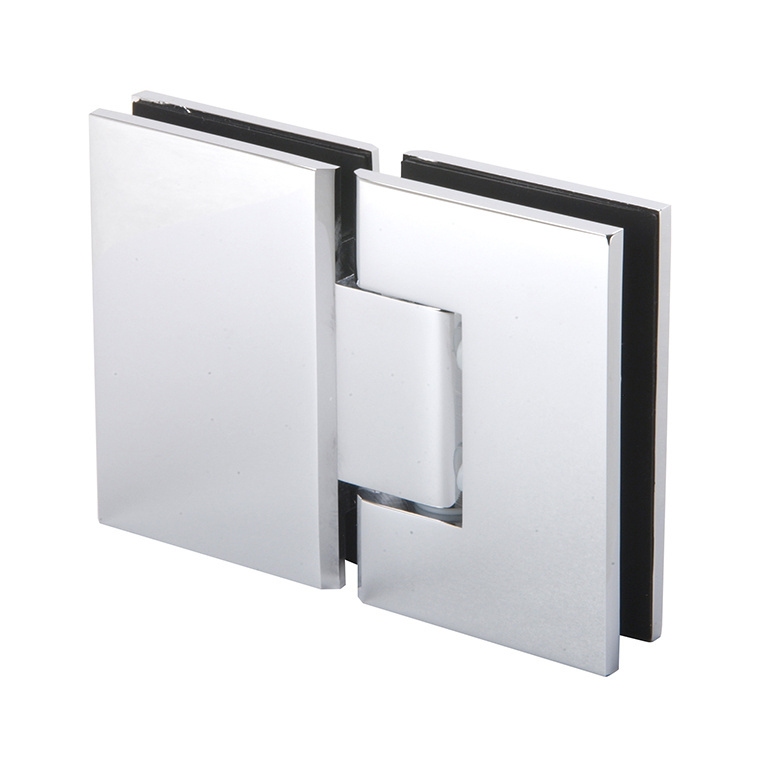

CRL Melbourne Series Hinges feature large hinge plates that provide more clamping force. The required simple rectangular cut-out is for ease of glass fabrication. Constructed of forged solid brass, the Melbourne Series offers three versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates for concealment of hinge plate screws. For use with 1/2″, 3/8″, and 5/16″ (12, 10 and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finishes available.
Using two hinges with 1/2″, 3/8″, and 5/16″ glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30″ (762 mm).
Using three hinges with 1/2″, 3/8″, and 5/16″ glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34″ (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degrees in and 90 degrees out (at factory set position).
Closing Type: Self-Centering when within 15 degrees of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

5 Degree Pre- Set: No

Adjustable: No

Back Plate: Offset

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Polished Chrome

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

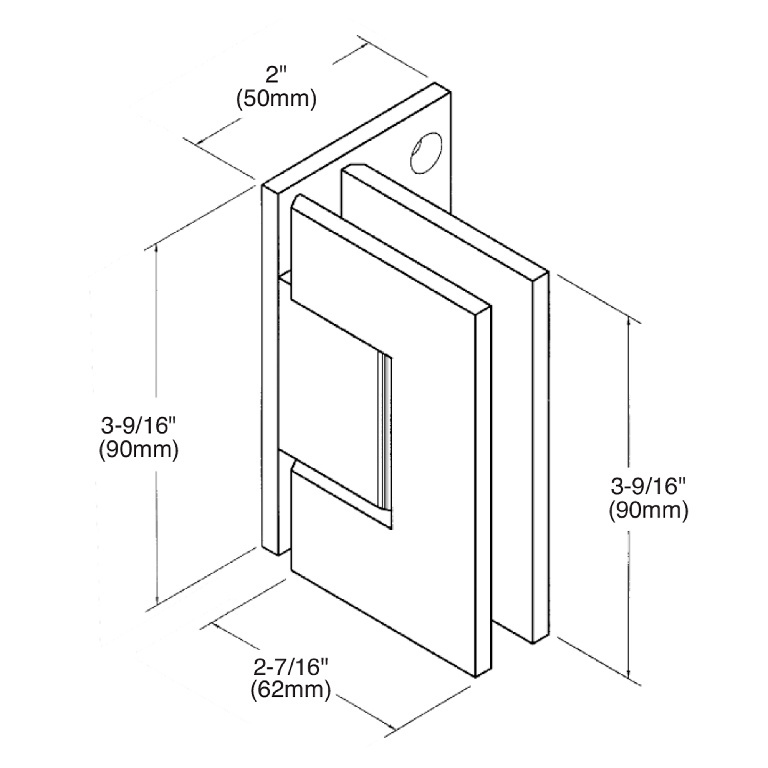

Height: 3-9/16 in. (90 mm)

Material: Brass

Maximum Door Weight – 2 Hinges: 100 lbs. (45.4 kg)

Maximum Door Weight – 3 Hinges: 120 lbs. (54.4 kg)

Maximum Door Width – 2 Hinges: 30

Maximum Door Width – 3 Hinges: 34

Mounting Type: Wall Mount

Self- Centering: Yes

Series: Melbourne

Shipping Limitations: None

Width: 2-7/16 in. (62 mm)
