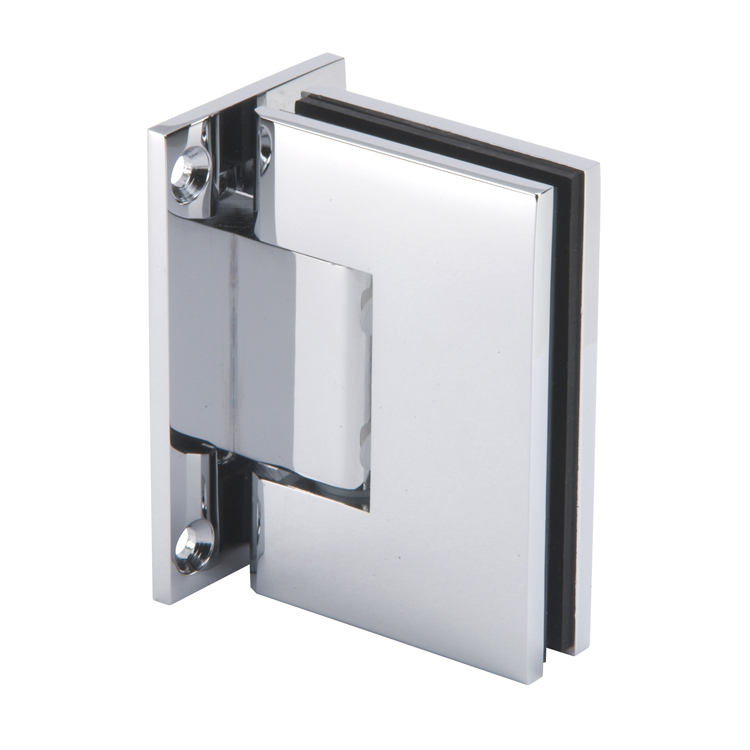

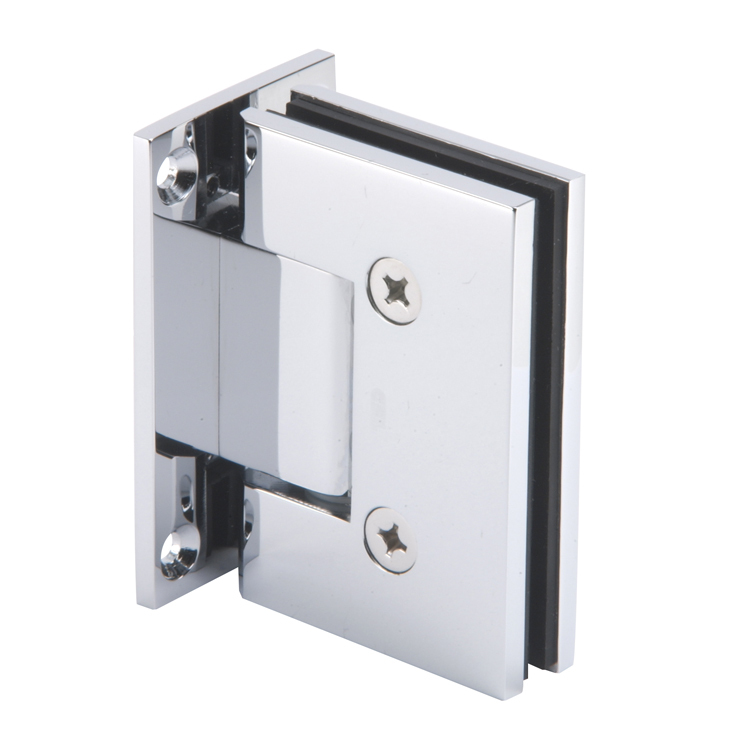

CRL MEL037CH Polished Chrome Melbourne Wall Mount Hinge with Full Back Plate

CRL MEL037CH Polished Chrome Melbourne Wall Mount Hinge with Full Back Plate

C.R. Laurence MEL037CH Polished Chrome Melbourne Wall Mount Full Back Plate Hinge offers a robust and stylish solution for your glass door installations. Designed with large hinge plates, this hinge maximizes clamping force, ensuring a secure fit that is both functional and aesthetically pleasing. The simple rectangular cut-out facilitates easy glass fabrication, making it an ideal choice for professionals looking to streamline their installation process. Compatible with 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) thick tempered glass, this hinge can support door weights of up to 100 lbs. (45 kg) with two hinges and up to 120 lbs. (54 kg) when using three hinges. The maximum door widths are 30″ (762 mm) and 34″ (864 mm), respectively, allowing for versatile applications. Crafted from solid brass, the MEL037CH is not only durable but also comes in a polished chrome finish, adding a touch of elegance to any shower or entryway. This hinge features a self-centering capability when within 15 degrees of the closed position and includes gaskets, screws, and necessary glass fabrication dimensions for a complete installation. For those seeking custom finishes, C.R. Laurence offers additional options, making this hinge a flexible choice for any project.

Polished Chrome Melbourne Wall Mount Full Back Plate Hinge

• Large Hinge Plates Provide More Clamping Force
• Simple Rectangular Cut-Out for Ease of Glass Fabrication
• For Use with 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) Thick Tempered Glass
• Stocked in Three Popular Finishes, with Custom Finishes Available

CRL Melbourne Series Hinges feature large hinge plates that provide more clamping force. The required simple rectangular cut-out is for ease of glass fabrication. Constructed of forged solid brass, the Melbourne Series offers three versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates for concealment of hinge plate screws. For use with 1/2″, 3/8″, and 5/16″ (12, 10 and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finishes available.
Using two hinges with 1/2″, 3/8″, and 5/16″ glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30″ (762 mm).
Using three hinges with 1/2″, 3/8″, and 5/16″ glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34″ (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degrees in and 90 degrees out (at factory set position).
Closing Type: Self-Centering when within 15 degrees of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

5 Degree Pre- Set: No

Adjustable: No

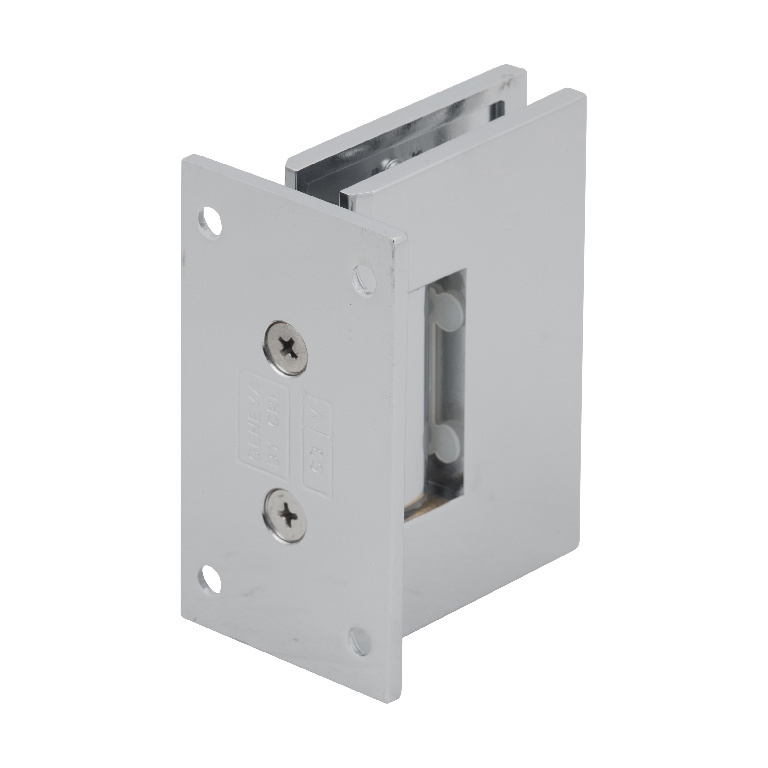

Back Plate: Full

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Polished Chrome

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

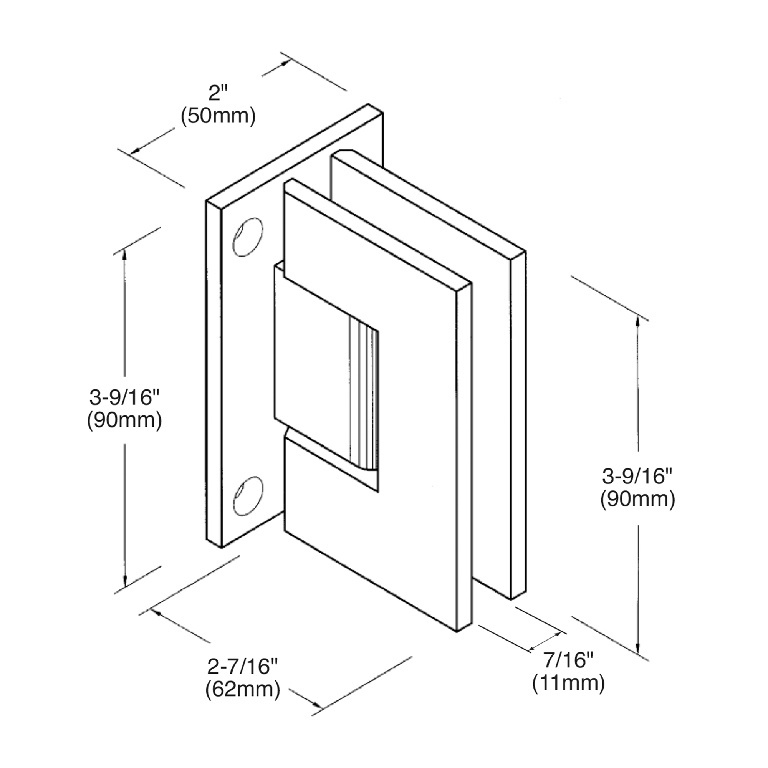

Height: 3-9/16 in. (90 mm)

Material: Brass

Maximum Door Weight – 2 Hinges: 100 lbs. (45.4 kg)

Maximum Door Weight – 3 Hinges: 120 lbs. (54.4 kg)

Maximum Door Width – 2 Hinges: 30

Maximum Door Width – 3 Hinges: 34

Mounting Type: Wall Mount

Self- Centering: Yes

Series: Melbourne

Shipping Limitations: None

Width: 2-7/16 in. (62 mm)
