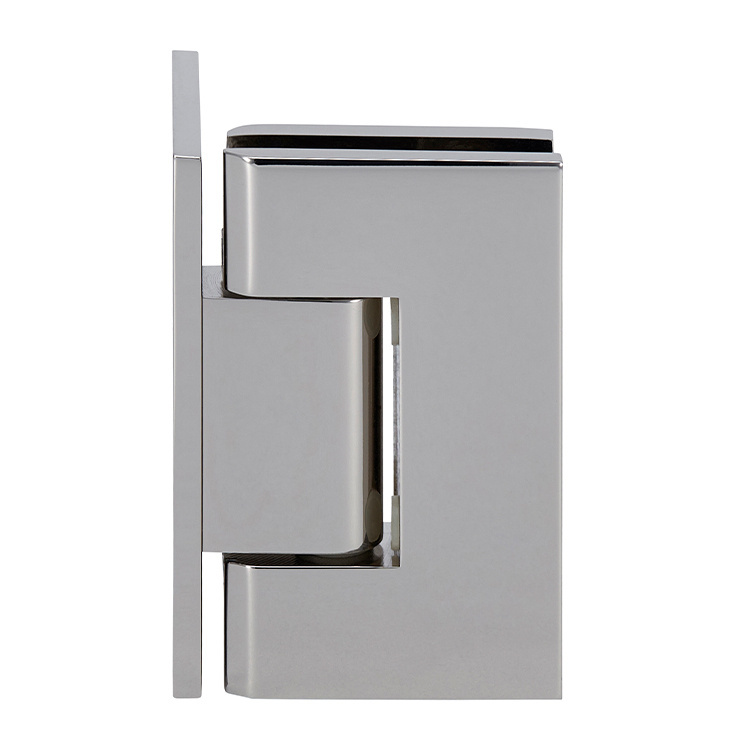

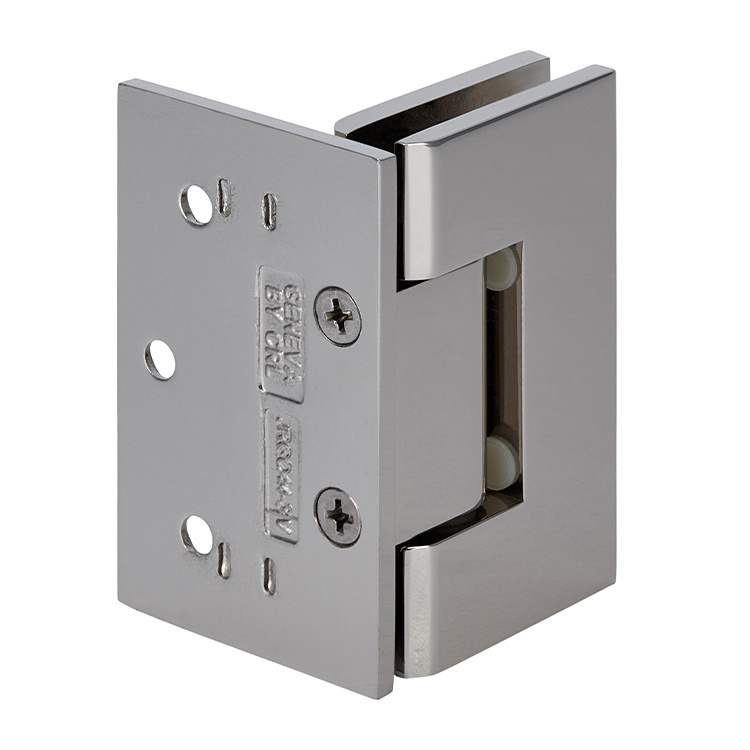

CRL JRG044PN Polished Nickel Junior Geneva 044 Wall Mount Offset Hinge Back Plate

CRL JRG044PN Polished Nickel Junior Geneva 044 Wall Mount Offset Hinge Back Plate

C.R. Laurence JRG044PN Polished Nickel Junior Geneva 044 Series Wall Mount Offset Back Plate Hinge combines elegance with functionality, perfect for modern shower enclosures. Designed to accommodate 1/4″ (6 mm) to 5/16″ (8 mm) thick tempered glass, this solid brass hinge is not only robust but also visually appealing, available in a range of stunning finishes. One of its standout features is the self-centering mechanism, which ensures a seamless door closure when within 15 degrees of the closed position. The hinge includes a reversible pivot pin, allowing for a tighter 5-degree closure into the shower interior, enhancing both aesthetics and water containment. With the capacity to support up to 62 lbs. (28 kg) using two hinges or 92 lbs. (42 kg) with three, it accommodates doors up to 32 inches wide. Installation is straightforward with included gaskets, screws, and glass fabrication dimensions, making it suitable for both residential and hotel shower applications. Backed by a three-year warranty, the Junior Geneva hinge is a reliable choice for any building professional or discerning homeowner looking to elevate their shower design.

Polished Nickel Junior Geneva 044 Series Wall Mount Offset Back Plate Hinge

• Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)
• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass

The same elegant European design that has made our Geneva Series so popular is available in a smaller version, the Junior Geneva, to offer flexibility of application. Used to accommodate 1/4″ (6 mm) to 5/16″ (8 mm) thick glass, the Junior Geneva is made of solid brass. There are three Wall Mount styles along with 90 degree, 135 degree, and 180 degree Glass-to-Glass styles. The Junior Geneva is self-centering and available in up to 12 stock finishes. They contain a Reversible Pivot Pin for optional 5 degree tighter door closure.
STANDARD REVERSIBLE PIVOT PIN: Each Junior Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree, which will allow the door to close 5 degree further into the shower. The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN Custom Pivot Pins are available to accommodate “off-angle” installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 1/4″ to 5/16″ glass (6 to 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28″ (711 mm).
Using three hinges with 1/4″ to 5/16″ glass (6 to 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum width of 32″ (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4″ (6 mm) to 5/16″ (8 mm) Tempered Safety Glass
Special Features: Most models offer a choice of Standard Model, factory set at standard closing position (0 degree), or 5 degree Pre-Set Model for tighter closure into shower interior. All models contain a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

5 Degree Pre- Set: No

Adjustable: No

Back Plate: Offset

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Polished Nickel

Glazing Thickness: 1/4 in. To 5/16 in. (6 mm To 8 mm)

Height: 2-15/16 in. (75 mm)

Material: Brass

Maximum Door Weight – 2 Hinges: 62 lbs. (28.1 kg)

Maximum Door Weight – 3 Hinges: 92 lbs. (41.7 kg)

Maximum Door Width – 2 Hinges: 28

Maximum Door Width – 3 Hinges: 32

Mounting Type: Wall Mount

Self- Centering: Yes

Series: Junior Geneva

Shipping Limitations: None

Width: 1-13/16 in. (46 mm)
