CRL H8210BTSA Satin Anodized Vernon Wall Mount Hinge Back Plate

CRL H8210BTSA Satin Anodized Vernon Wall Mount Hinge Back Plate

C.R. Laurence H8210BTSA Satin Anodized Vernon Wall Mount Full Back Plate Hinge offers a sophisticated solution for self-closing glass doors, accommodating thicknesses ranging from 5/16″ to 9/16″ (8 to 13.52 mm). This hinge features a robust aluminum construction available in a variety of finishes, including Brite Chrome, Satin Nickel, and Satin Anodized, allowing for seamless integration into diverse architectural styles. Designed to swing a full 90º in both directions, the H8210BTSA includes an adjustable closing speed feature, enabling customization to suit specific application needs. With the ability to support doors up to 39″ (1 m) wide and a maximum weight of 220 lbs. (100 kg) when using two hinges, it is an excellent alternative to traditional floor closers and patch fittings. The innovative Oil Dynamic technology combines the benefits of mechanical hinges with hydraulic door closers, allowing for the installation of ‘all-glass’ doors without the need for extensive retrofitting. The hinge is ambidextrous, providing additional design flexibility. Snap-in molded gaskets are included for easy installation, ensuring a secure fit for your glass doors.Choose the C.R. Laurence H8210BTSA for a reliable and aesthetically pleasing hinge solution that enhances both functionality and design.

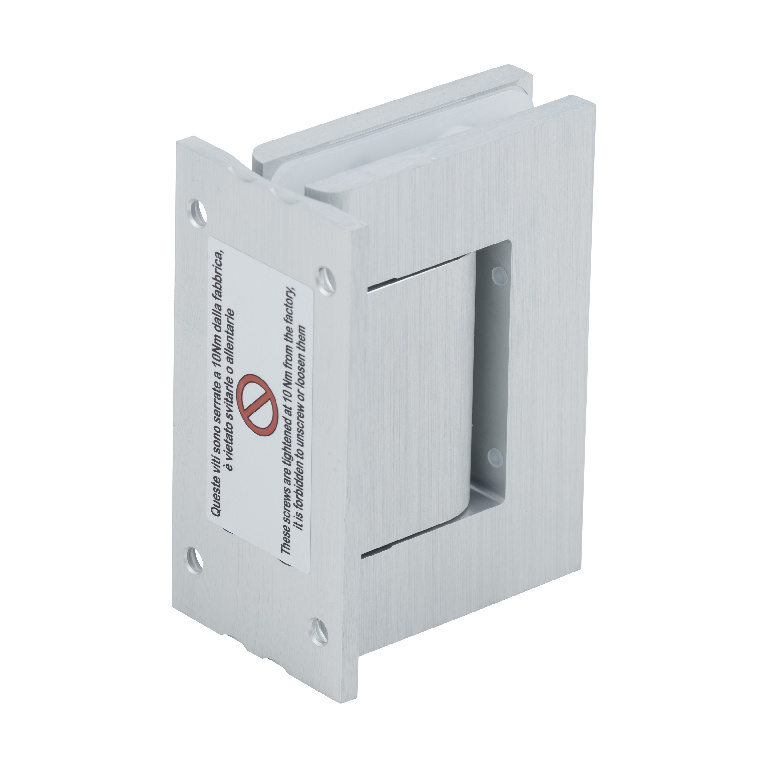

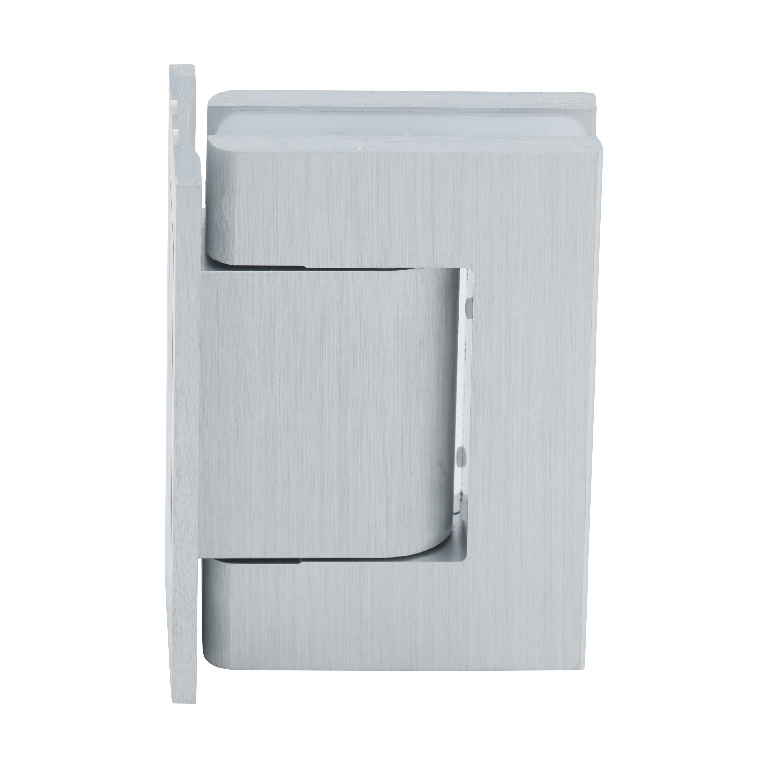

Satin Anodized Vernon Wall Mount Full Back Plate Hinge

• For Self-Closing Glass Doors From 5/16″ to 9/16″ (8 to 13.52 mm) Thick
• Aluminum Body in Your Choice of Brite Chrome, Satin Nickel, and Satin Anodized Finishes
• Adjustable Closing Speed
• A Great Alternative to Floor Closers and Patch Fittings

This CRL Oil Dynamic Full Back Plate Wall Mount Hinge swings in and out a full 90º, with stop at 0º. Closing speed can be adjusted. Intended for doors up to 39″ (1 m) wide. Maximum weight per two hinges is 220 lbs. (100 kg). Designed for use on interior and exterior door applications.
The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an ‘all-glass’ door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic Hinges will support a 5/16″ to 9/16″ (8 to 13.52 mm) thick glass door up to 39″ (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16″ to 9/16″ (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º Inwards and Outwards (Except H8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0º to 80º
Cut-Out Glass Fabrication Required
Includes: Snap-In Molded Gaskets for 5/16″ to 9/16″ (8 to 13.52 mm) Glass
Maximum Capacities Using Two Hinges: Door Width: 39″ (1 m); Door Weight: 220 lbs. (100 kg)
Product Warning:
Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Technical Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
*The Adjustable Closing Speed valve uses a 3mm allen key and the hinge cover plate uses a 4mm allen key.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Adjustable Closing Speed: Yes

Back Plate: Full

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Edge Profile: Square

Finish/ Color:: Satin Anodized

Glazing Thickness: 5/16 in. To 9/16 in. (8 mm To 14 mm)

Height: 4-1/4

Hold Open: No

Material: Aluminum

Maximum Door Weight – 2 Hinges: 220 lbs. (99.8 kg)

Maximum Door Width: 39 in. (991 mm)

Mounting Type: Wall Mount

Self- Closing: Yes

Series: Vernon

Shipping Limitations: None

Width: 2-7/8 in. (73 mm)
