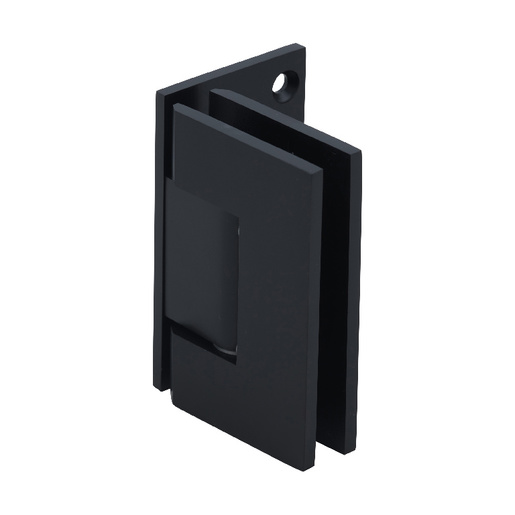

CRL GEN3440RB Oil Rubbed Bronze Adjustable Wall Mount Offset Hinge Back Plate

CRL GEN3440RB Oil Rubbed Bronze Adjustable Wall Mount Offset Hinge Back Plate

C.R. Laurence GEN3440RB Oil Rubbed Bronze Adjustable Wall Mount Offset Back Plate Hinge offers a sophisticated solution for your shower door needs. Designed for monolithic tempered glass, this hinge allows for seamless adjustments up to a 90-degree angle without the hassle of removing the door. Once installed, simply loosen the Allen set screws to achieve your desired closed position, and tighten them to self-center the door.Crafted from solid brass, the GEN3440RB is as durable as it is stylish, enhancing any bathroom décor with its oil-rubbed bronze finish. It accommodates glass thicknesses from 5/16″ to 1/2″ (8 mm to 12 mm) and can support door weights of up to 120 lbs when using three hinges. The hinge swings 90 degrees both inward and outward, providing flexibility in your door design while ensuring a snug fit against the jamb with a 5-degree adjustment option. With a three-year warranty and essential features like self-centering and easy installation, the C.R. Laurence GEN3440RB is a reliable choice for both residential and hotel applications. Elevate your shower experience with this well-engineered hinge that balances functionality and aesthetic appeal.

Oil Rubbed Bronze Adjustable Wall Mount Offset Back Plate Hinge

• Adjustable to Any Angle up to 90 Degree without Having to Take Door Down
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass

The CRL Adjustable Geneva Series has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
SPECIFICATIONS:
Glass Thickness: 5/16″ to 1/2″ (8 to 12 mm) Tempered Safety Glass
Special Features: Adjustable to any angle up to 90 degree without having to take door down
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position)
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16″ (8 mm) thick tempered glass.
NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

5 Degree Pre- Set: No

Adjustable: Yes

Back Plate: Offset

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Edge Profile: Square

Finish/ Color:: Oil Rubbed Bronze

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

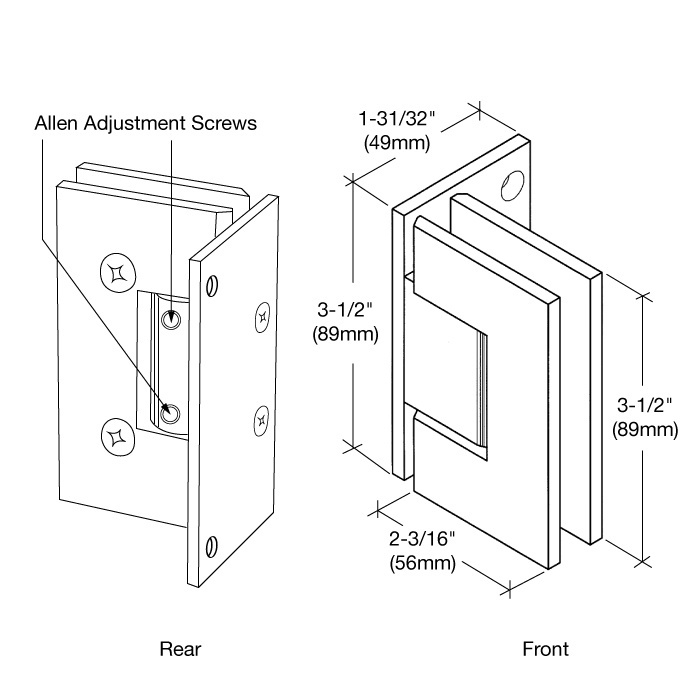

Height: 3-1/2 in. (89 mm)

Material: Brass

Maximum Door Weight – 2 Hinges: 80 lbs. (36.3 kg)

Maximum Door Weight – 3 Hinges: 120 lbs. (54.4 kg)

Maximum Door Width – 2 Hinges: 28

Maximum Door Width – 3 Hinges: 32

Mounting Type: Wall Mount

Self- Centering: Yes

Series: Geneva

Shipping Limitations: None

Width: 2-3/16 in. (56 mm)
