CRL FA55SC Satin Chrome Flush Mount Cabinet Pivot Hinges

CRL FA55SC Satin Chrome Flush Mount Cabinet Pivot Hinges

C.R. Laurence FA55SC Satin Chrome Flush Mount Cabinet Pivot Hinges offer a sleek and reliable solution for your glass cabinetry needs. Designed to accommodate 1/4″ to 5/16″ (6 to 8 mm) glass, these hinges provide both functionality and elegance, making them an ideal choice for modern interiors. With a maximum recommended door width of 24″ (610 mm) and a weight capacity of 50 lbs. (22.7 kg), these hinges ensure stability without compromising on style. Installation is straightforward, requiring only one hole and one cut-out in the glass, making them suitable for various cabinet designs. The minimum clearance needed is just 1/8″ (3.2 mm) at both the top and bottom, allowing for seamless integration into your cabinetry. Each package includes one set of top and bottom hinges, ensuring you have everything necessary for installation. Crafted from durable brass and finished in a sophisticated satin chrome, the FA55SC hinges not only enhance the aesthetic appeal of your cabinets but also provide long-lasting performance. Whether you’re a building professional or a discerning homeowner, these flush mount cabinet pivot hinges are designed to meet your needs with style and reliability.

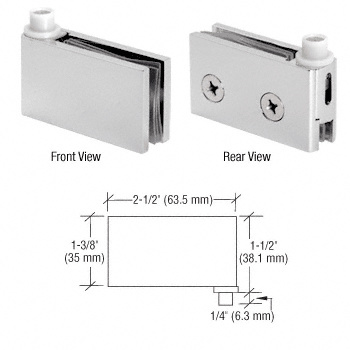

Satin Chrome Flush Mount Cabinet Pivot Hinges

• For 1/4″ to 5/16″ (6 to 8 mm) Glass
• Requires One Hole and One Cut-Out
• One Set Top and Bottom Per Package

The CRL Flush Mount Cabinet Pivot Hinge can be used with 1/4″ or 5/16″ (6 or 8 mm) glass. The maximum recommended door width is 24″ (610 mm). The recommended maximum weight of the door should not exceed 50 lbs. (22.7 kg). Minimum clearance required is 1/8″ (3.2 mm) top and 1/8″ (3.2 mm) bottom. Required glass fabrication for hinge installation is one hole and one cut out. One set top and bottom per pack.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Satin Chrome

Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)

Height: 1-1/2 in. (38.1 mm)

Material: Brass

Maximum Door Width: 24 in. (609.6 mm)

Pack Quantity: 2

Shipping Limitations: None

Weight Capacity: 50 lbs. (22.7 kg)

Width: 2-1/2 in. (63.5 mm)
