CRL FA50SC Satin Chrome Surface Mount Cabinet Pivot Hinges

CRL FA50SC Satin Chrome Surface Mount Cabinet Pivot Hinges

C.R. Laurence FA50SC Satin Chrome Surface Mount Cabinet Pivot Hinges offer a robust and stylish solution for glass cabinet doors, accommodating glass thicknesses of 1/4″ to 5/16″ (6 to 8 mm). Designed with functionality in mind, these hinges support a maximum door width of 24″ (610 mm) and a weight limit of 50 lbs. (22.7 kg), ensuring reliable performance for everyday use. Installation is straightforward, requiring only one hole and one cut-out in the glass for proper mounting. Each package contains one set of top and bottom hinges, facilitating a complete installation for your project. The satin chrome finish not only enhances the aesthetic appeal but also provides a sleek and modern look that complements a variety of interior designs. With a height of 1-5/8″ (41.3 mm) and a width of 2-1/2″ (63.5 mm), these brass hinges are engineered for durability while maintaining a low profile. The minimum clearance required is a mere 1/4″ (6 mm) at both the top and bottom, making these hinges an ideal choice for tight spaces. Crafted to meet your glazing needs, the C.R. Laurence FA50SC hinges are a practical addition to any cabinetry project.

Satin Chrome Surface Mount Cabinet Pivot Hinges

• For 1/4″ to 5/16″ (6 to 8 mm) Glass
• Requires One Hole and One Cut-Out
• One Set Top and Bottom Per Package

The CRL Surface Mount Cabinet Pivot Hinge can be used with 1/4″ or 5/16″ (6 or 8 mm) glass. The maximum recommended door width is 24″ (610 mm). The recommended maximum weight of the door should not exceed 50 lbs. (22.7 kg). Minimum clearance required is 1/4″ (6 mm) top and 1/4″ (6 mm) bottom. Required glass fabrication for hinge installation is one hole and one cut out. One set top and bottom per pack.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Satin Chrome

Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)

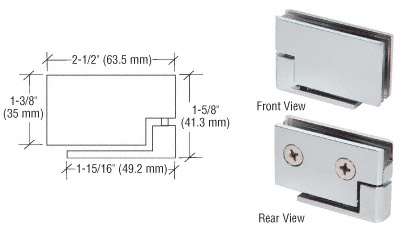

Height: 1-5/8 in. (41.3 mm)

Material: Brass

Maximum Door Width: 24 in. (609.6 mm)

Pack Quantity: 2

Shipping Limitations: None

Weight Capacity: 50 lbs. (22.7 kg)

Width: 2-1/2 in. (63.5 mm)
