CRL FA044CH Chrome-Free Swinging Offset Pivot Hinge

CRL FA044CH Chrome-Free Swinging Offset Pivot Hinge

C.R. Laurence FA044CH Chrome Free Swinging Offset Pivot Hinge is expertly designed for light-duty applications, making it an ideal choice for partitions, smaller entry doors, and cabinet doors. Accommodating glass thicknesses from 5/16″ to 3/8″ (8 to 10 mm), this hinge features an offset pivot point that allows for a full 180-degree swing, providing enhanced accessibility and functionality. Crafted from solid brass casting, the FA044CH hinge not only delivers durability but also presents a polished chrome finish, ensuring a sleek and professional appearance. Installation is straightforward, requiring only two 5/8″ (16 mm) holes in the glass, and it includes gaskets and a hole drilling template for ease of setup. This hinge supports a maximum door width of 32″ (812.8 mm) with a weight capacity of 96 lbs. (43.5 kg) when using two hinges, and can accommodate up to 140 lbs. (63 kg) with three hinges at a width of 36″ (914 mm). Whether you’re working on a new construction project or a renovation, the C.R. Laurence FA044CH is a reliable choice that combines style and performance seamlessly.

Chrome Free Swinging Offset Pivot Hinge

• For 5/16″ to 3/8″ (8 to 10 mm) Glass
• Offset Pivot Point Allows Full 180 Degrees Swing
• Two 5/8″ (16 mm) Holes Required

The free swinging CRL Offset Pivot Hinge is perfect for light duty doors, such as partitions and smaller entry doors. Also commonly used for cabinet doors. This Hinge requires only two 5/8″ (16 mm) holes in the glass, and is available in popular polished brass and polished chrome finishes. Includes gasket and hole drilling template.
SPECIFICATIONS

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Polished Chrome

Glazing Thickness: 5/16 To 3/8 in. (8 mm To 10 mm)

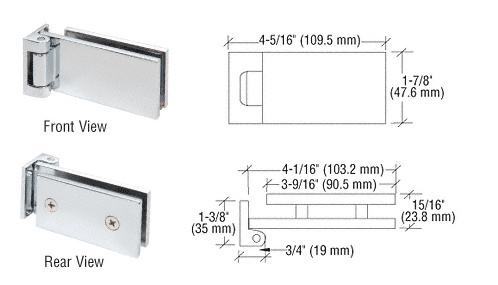

Height: 1-7/8 in. (47.6 mm)

Material: Brass

Maximum Door Width: 32 in. (812.8 mm)

Shipping Limitations: None

Weight Capacity: 96 lbs. (43.5 kg)

Width: 4-5/16 in. (109.5 mm)
